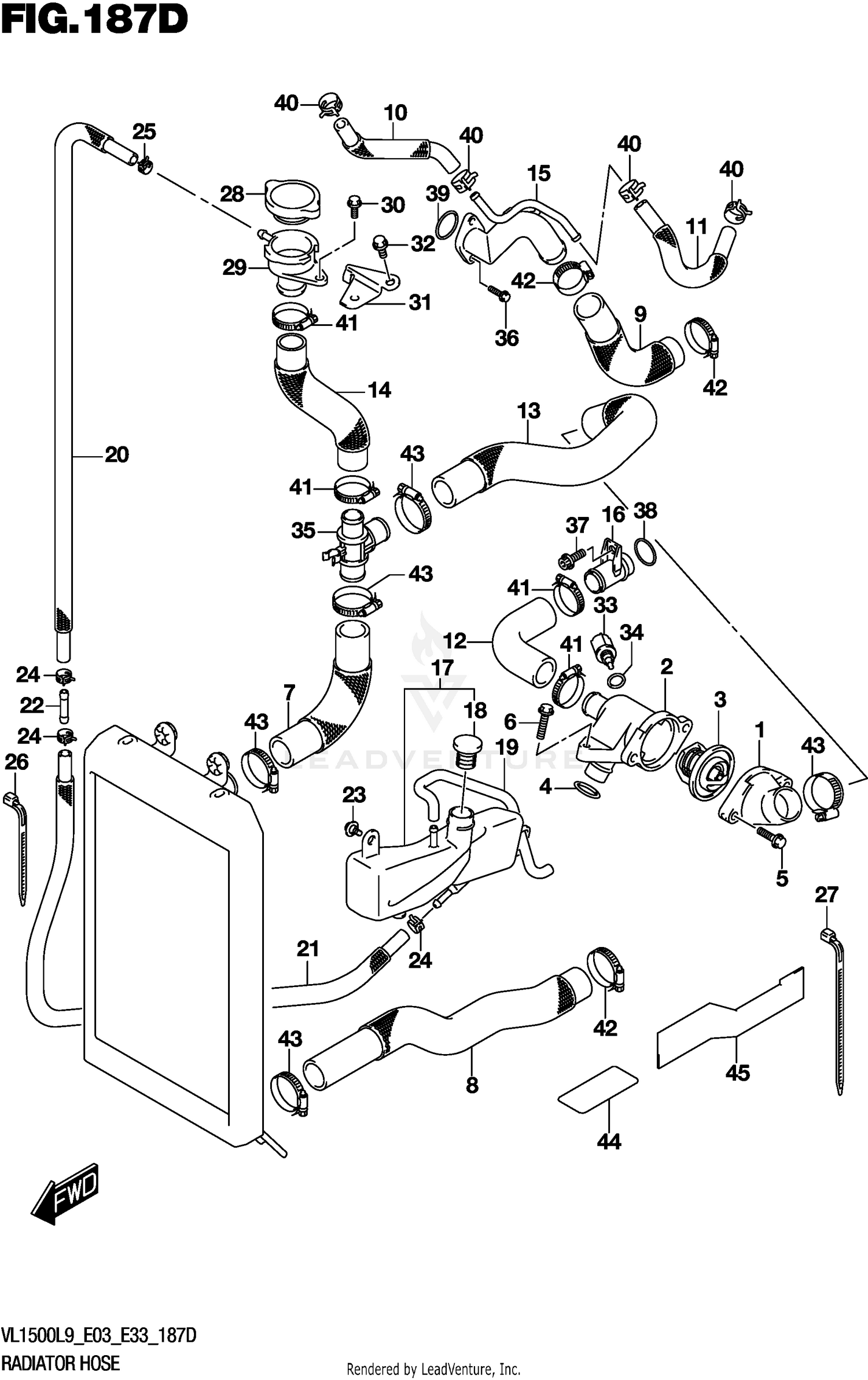

RADIATOR HOSE (VL1500TL9 E33)
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 17661-48G10 | COVER,THERMOSTAT Price: $32.23 |
| 2 | 17662-40H00 | CONNECTOR Price: $65.97 |
| 3 | 17670-06G51 | THERMOSTAT,WATER This part replaces 17670-06G50. Price: $31.83 |
| 4 | 09280-18009 | O RING (D:3.2,ID:17.8) This part replaces 09280-18008. Price: $7.10 |
| 5 | 01547-0620A | BOLT Price: $2.45 |
| 6 | 01547-0625A | BOLT Price: $2.45 |
| 7 | 17851-40H10 | HOSE Price: $28.53 |
| 8 | 17852-40H10 | HOSE Price: $54.09 |
| 9 | 17853-40H00 | HOSE Price: $18.98 |
| 10 | 17854-40H00 | HOSE Price: $16.85 |
| 11 | 17855-40H00 | HOSE Price: $22.66 |
| 12 | 17856-40H00 | HOSE Price: $25.53 |
| 13 | 17857-40H10 | HOSE Price: $53.22 |
| 14 | 17858-40H00 | HOSE Price: $34.86 |
| 15 | 17860-40H00 | PIPE Price: $124.72 |
| 16 | 17890-06G20 | UNION,CONNECTOR HOSE Price: $18.34 |
| 17 | 17910-40H00 | TANK ASSY Price: $48.87 |
| 19 | 17982-40H00 | HOSE Price: $11.35 |
| 20 | 17981-40H00 | HOSE Price: $26.82 |
| 22 | 09364-06005 | UNION Price: $6.01 |
| 23 | 09111-06085 | BOLT (6X12) Price: $5.61 |
| 24 | 09401-08411 | CLIP (ID:8.6) Price: $2.15 |
| 25 | 09401-10411 | CLIP Price: $2.95 |
| 26 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 27 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 28 | 17730-14G00 | CAP,RADIATOR (1.1) Price: $52.91 |
| 29 | 17791-14G00 | CONDUCTION Price: $25.36 |
| 30 | 01547-0512A | BOLT Price: $1.81 |
| 31 | 17792-40H00 | BRACKET Price: $7.68 |
| 32 | 01547-0612A | BOLT Price: $2.45 |
| 33 | 13650-49X00 | SENSOR,TEMP Price: $111.41 |
| 34 | 09168-12017 | GASKET (12X17X1) Price: $2.37 |
| 35 | 17891-48G00 | JOINT,THREE WAY Price: $12.29 |
| 36 | 09103-06274 | BOLT (6X16) Price: $2.45 |
| 37 | 07130-0612A | BOLT Price: $3.02 |
| 38 | 09280-18009 | O RING (D:3.2,ID:17.8) This part replaces 09280-18008. Price: $7.10 |
| 39 | 09280-26005 | O-RING (D:2.4,ID:26.2) Price: $2.79 |
| 40 | 09401-12414 | CLIP Price: $4.02 |
| 41 | 09402-32512 | CLAMP Price: $13.50 |
| 42 | 09402-38512 | CLAMP Price: $14.48 |
| 43 | 09402-35501 | CLAMP Price: $9.01 |
