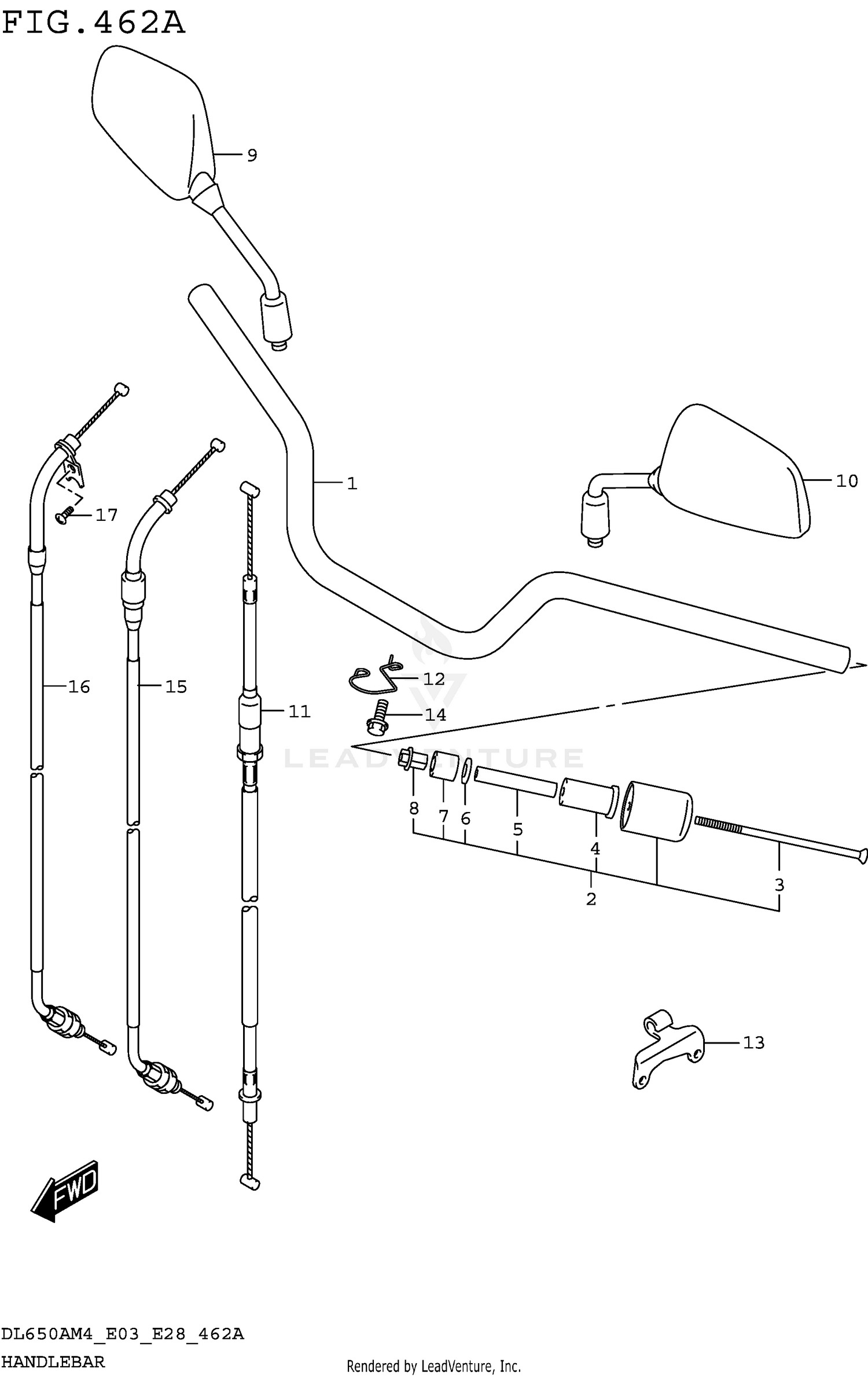

HANDLEBAR (DL650AM4 E03)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 56111-28K00-YUS | HANDLEBAR (SILVER) Price: $115.26 |
| 2 | 56200-16843 | BALANCER SET, HANDLEBAR Price: $44.63 |
| 9 | 56500-04F30 | MIRROR ASSY, RR VIEW RH Price: $128.96 |
| 10 | 56600-04F30 | MIRROR ASSY, RR VIEW LH Price: $128.33 |
| 11 | 58200-11J00 | CABLE ASSY, CLUTCH Price: $63.98 |
| 12 | 58631-11J10 | GUIDE, CLUTCH CABLE Price: $8.17 |
| 13 | 58634-44H00 | STOPPER,CLUTCH CABLE Price: $16.66 |
| 14 | 01547-0612A | BOLT Price: $2.45 |
| 15 | 58300-11J01 | CABLE ASSY, THROTTLE NO.1 Price: $42.89 |
| 16 | 58300-11J11 | CABLE ASSY, THROTTLE NO.2 Price: $41.10 |
| 17 | 09125-05042 | SCREW (5X10) Price: $2.39 |
