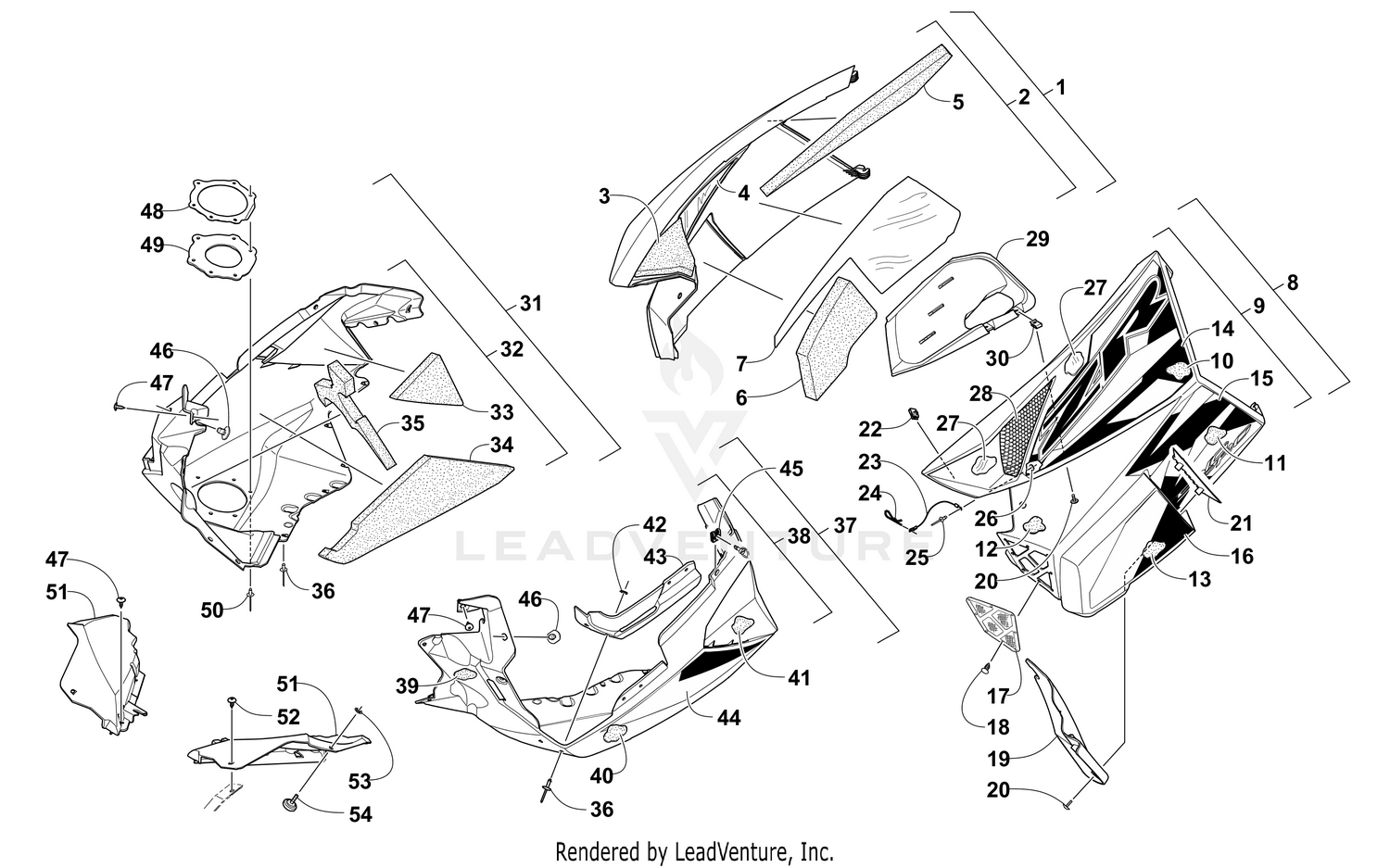

SKID PLATE AND SIDE PANEL ASSEMBLY [103236]

Parts (50)

Ref	Part Number	Description
3	0617-626	Foam, Side Panel - Upper Front - Right Price: $5.09
4	6606-414	Foil, Protective Price: $17.95
5	0617-628	Foam, Side Panel - Upper Rear - Right Price: $45.95
6	0617-632	Foam, Side Panel - Lower Front - Right Price: $24.20
7	6606-416	Foil, Protective Price: $4.23
10	0617-629	Foam, Side Panel - Upper Rear - Left Price: $19.35
11	0617-635	Foam, Side Panel - Lower Rear - Left Price: $19.29
12	0617-631	Foam, Side Panel - Center Front - Left Price: $2.59
13	0617-681	Foam, Side Panel - Lower Front - Left Price: $7.23
14	2621-428	Decal, Side Panel - Upper - Right - Black Price: $53.95
14	2621-429	Decal, Side Panel - Upper - Left - Black Price: $93.95
15	2621-438	Decal, Side Panel - Lower Rear - Right - Black Price: $38.95
15	2621-439	Decal, Side Panel - Lower Rear - Left - Black Price: $38.95
16	2621-436	Decal, Side Panel - Lower Front - Right - Black Price: $20.56
16	2621-437	Decal, Side Panel - Lower Front - Left - Black Price: $20.56
17	2602-704	Screen, Vent Price: $20.56
18	0623-269	Clip, Retaining Price: $1.32
19	2602-711	Deflector, Air Price: $22.99
20	0623-797	Screw, Self-Tapping Price: $0.42
21	2602-703	Retainer, Air Deflector Price: $14.49
22	1623-637	Clip, U-Nut Price: $2.61
23	0607-447	Cable Price: $11.02
24	0605-283	Clip, Hairpin Price: $2.29
25	8060-486	Rivet Price: $0.29
26	8050-127	Washer Price: $1.57
27	0619-206	Foil, Protective Price: $237.95
28	5706-531	Screen, Intake Price: $22.99
29	1702-369	Duct, Belt Cooling Price: $42.95
30	1623-030	Clip, U-Nut Price: $1.08
33	0617-640	Foam, Skid Plate - Upper Rear - Right Price: $4.23
34	0617-638	Foam, Skid Plate - Center Front - Right Price: $17.95
35	0617-636	Foam, Skid Plate - Upper Front - Right Price: $45.95
36	8061-708	Rivet Price: $1.08
39	0617-637	Foam, Skid Plate - Upper Front - Left Price: $7.95
40	0617-639	Foam, Skid Plate - Center Front - Left Price: $19.35
41	0617-641	Foam, Skid Plate - Upper Rear - Left Price: $4.72
42	0123-802	Washer Price: $0.23
43	6606-613	Panel, Reinforcement Price: $14.49
44	2621-440	Decal, Skid Plate - Lower Front - Right - Black Price: $24.20
44	2621-441	Decal, Skid Plate - Lower Front - Left - Black Price: $24.20
45	2623-005	Clip, Retaining Price: $2.91
46	6606-592	Pin, Retaining Price: $3.88
47	1623-129	Screw, Self-Tapping Price: $0.29
48	2612-685	Plate, Exhaust Outlet Price: $65.95
49	2612-964	Seal, Exhaust Outlet Price: $13.28
50	8061-508	Rivet Price: $1.53
51	6606-342	Fascia, Front - Right - Black Price: $39.95
51	6606-579	Fascia, Front - Left - Black Price: $38.95
52	0623-784	Screw, Self-Tapping Price: $0.09
53	2623-001	RETAINER,PUSHNUT - 3/16" STUD Price: $0.48
