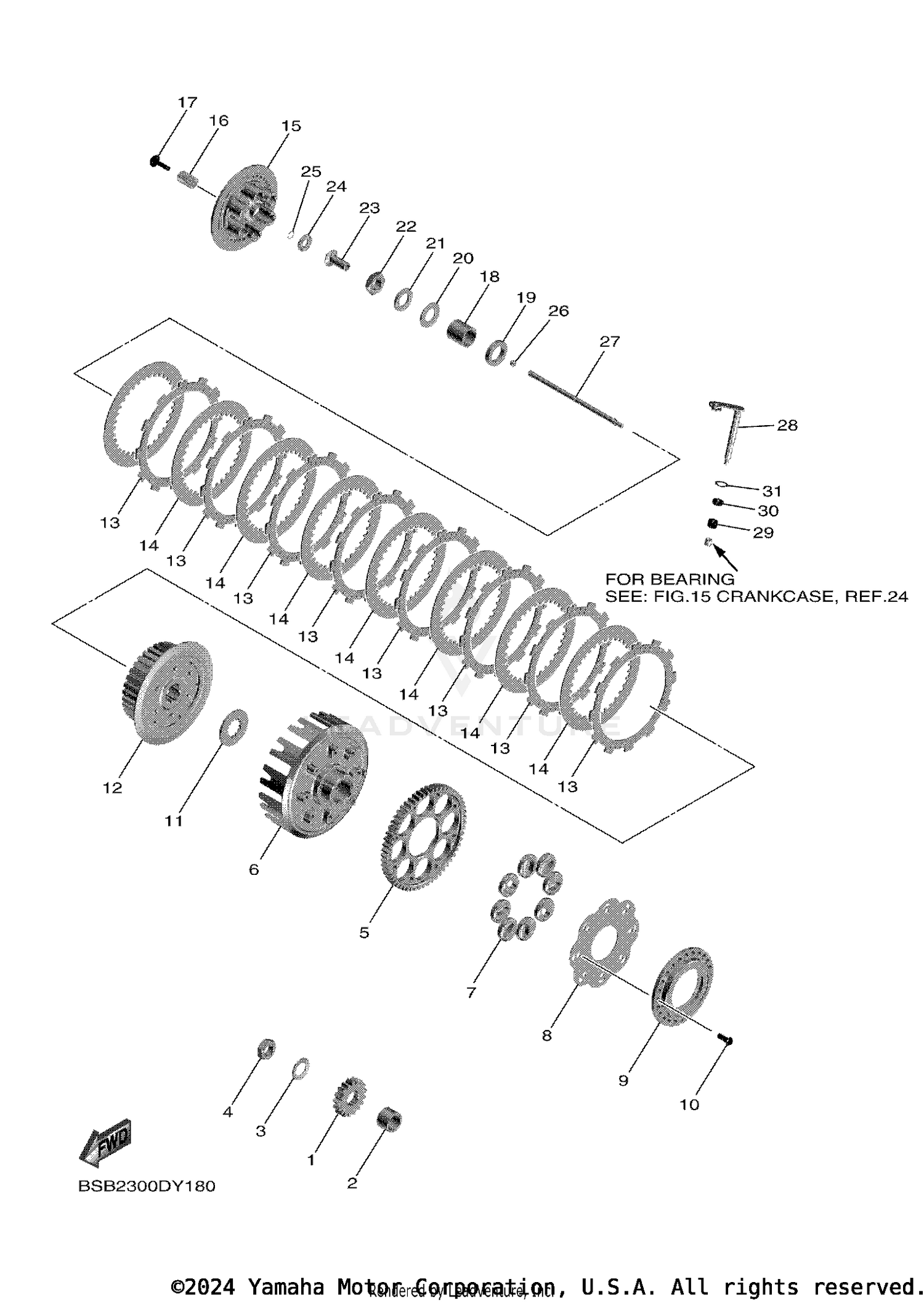

| Ref | Part Number | Description |
|---|
| 1 |
B7B-16111-00-00 |
GEAR, PRIMARY DRIVE Price: $64.99 |
| 2 |
90387-19010-00 |
COLLAR Price: $41.99 |
| 3 |
90208-16019-00 |
WASHER, CONICAL SPRING Price: $9.49 |
| 4 |
90170-16010-00 |
NUT This part replaces 90170-16009-00. Price: $13.49 |
| 5 |
B7B-16151-00-00 |
GEAR, PRIMARY DRIVEN Price: $219.99 |
| 6 |
B7B-16310-10-00 |
CLUTCH HOUSING ASSY Price: $215.99 |
| 7 |
5XC-16165-00-00 |
ABSORBER Price: $10.99 |
| 8 |
B7B-16158-00-00 |
PLATE, SIDE Price: $18.49 |
| 9 |
B7B-15570-00-00 |
STARTER CLUTCH ASSY Price: $290.99 |
| 10 |
90149-06161-00 |
SCREW This part replaces 90149-06166-00. Price: $8.49 |
| 11 |
5XD-16154-00-00 |
PLATE, THRUST 1 Price: $16.49 |
| 12 |
B7B-16371-00-00 |
BOSS, CLUTCH Price: $140.99 |
| 13 |
B7B-16321-00-00 |
PLATE, FRICTION Price: $22.99 |
| 14 |
B7B-16325-00-00 |
PLATE, CLUTCH 2 Price: $9.49 |
| 15 |
B7B-16351-00-00 |
PLATE, PRESSURE 1 Price: $77.99 |
| 16 |
90501-230A7-00 |
SPRING, COMPRESSION Price: $4.65 |
| 17 |
90159-06061-00 |
SCREW, WITH WASHER Price: $3.00 |
| 18 |
B7B-16181-00-00 |
SPACER 1 Price: $35.99 |
| 19 |
90387-25038-00 |
COLLAR Price: $18.49 |
| 20 |
90201-20030-00 |
WASHER, PLATE Price: $8.49 |
| 21 |
90208-20001-00 |
WASHER, CONICAL SPRING Price: $18.49 |
| 22 |
90179-20022-00 |
NUT This part replaces 90179-20007-00. Price: $15.49 |
| 23 |
BR9-16356-00-00 |
ROD, PUSH 1 Price: $80.99 |
| 24 |
93340-21209-00 |
BEARING Price: $18.99 |
| 25 |
93440-10085-00 |
CIRCLIP Price: $9.49 |
| 26 |
93511-32027-00 |
BALL Price: $9.49 |
| 27 |
B7B-16357-00-00 |
ROD, PUSH 2 Price: $38.99 |
| 28 |
B7B-16381-00-00 |
PUSH LEVER COMP. Price: $75.99 |
| 29 |
93317-11096-00 |
BEARING Price: $25.99 |
| 30 |
93102-10008-00 |
OIL SEAL Price: $6.49 |
