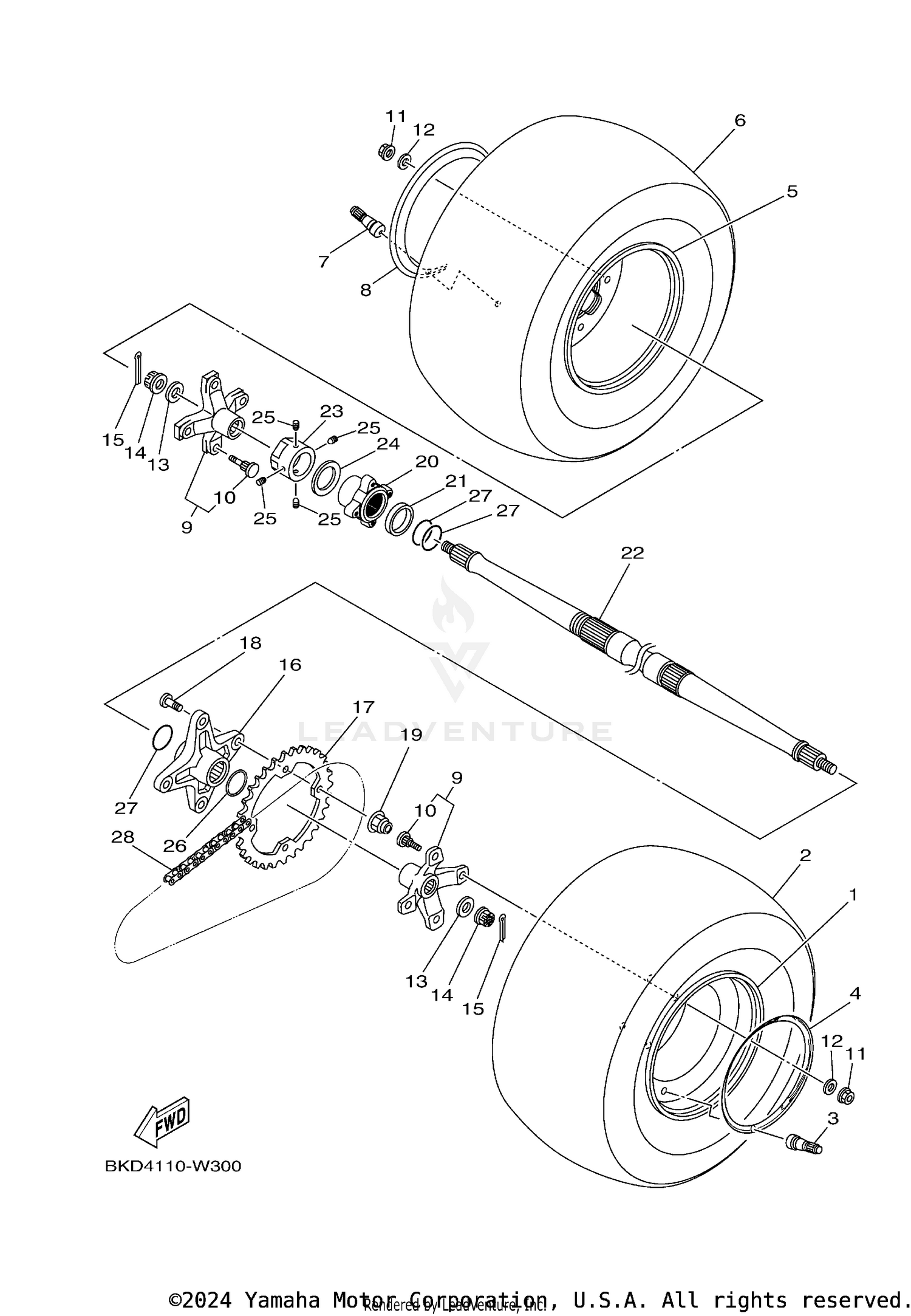

| Ref | Part Number | Description |
|---|
| 1 |
1TD-F5390-11-00 |
REAR WHEEL COMP. Price: $287.99 |
| 4 |
BFK-F51G2-50-00 |
GRAPHIC 2 Price: $68.99 |
| 5 |
1TD-F5390-11-00 |
REAR WHEEL COMP. Price: $287.99 |
| 8 |
BFK-F51G2-50-00 |
GRAPHIC 2 Price: $68.99 |
| 9 |
18P-25383-00-00 |
COLLAR, WHEEL Price: $185.99 |
| 10 |
90114-10013-00 |
BOLT, SERRATION Price: $5.99 |
| 11 |
95704-10500-00 |
NUT, WITH WASHER This part replaces 95702-10500-00. Price: $2.20 |
| 12 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 13 |
90201-16023-00 |
WASHER, PLATE Price: $9.49 |
| 14 |
90171-16002-00 |
NUT, CASTLE Price: $22.99 |
| 15 |
90252-03001-00 |
PIN, COTTER Price: $2.10 |
| 16 |
18P-25386-00-00 |
COLLAR, SPROCKET AXLE Price: $185.99 |
| 17 |
5TG-25438-10-00 |
SPROCKET, DRIVEN (38T) Price: $46.99 |
| 18 |
90109-10013-00 |
BOLT Price: $8.49 |
| 19 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 20 |
1TD-F5712-00-00 |
BRACKET, DISC Price: $49.99 |
| 21 |
90387-40001-00 |
COLLAR Price: $23.99 |
| 22 |
BKD-F5381-00-00 |
AXLE, WHEEL Price: $366.99 |
| 23 |
90179-38001-00 |
NUT Price: $73.99 |
| 24 |
90208-39001-00 |
WASHER, CONICAL SPRING Price: $11.49 |
| 25 |
90113-06039-00 |
BOLT, SET This part replaces 90113-06055-00. Price: $10.49 |
| 26 |
18P-25415-00-00 |
CIRCLIP Price: $8.49 |
| 27 |
93210-37003-00 |
O-RING Price: $8.49 |
