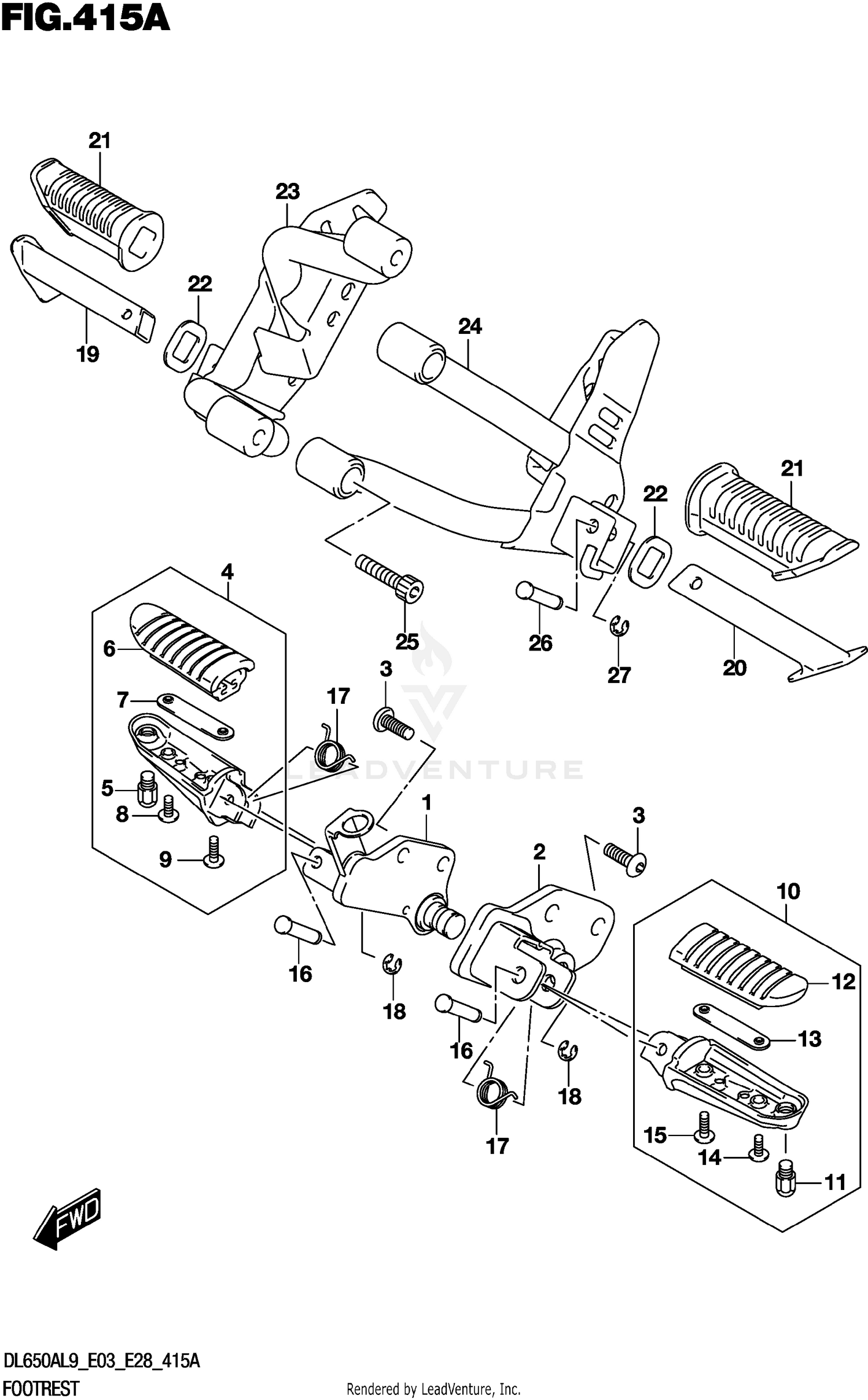

FOOTREST
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 43510-11J00-YAP | BRACKET, FR FOOTREST RH Price: $88.57 |
| 2 | 43520-11J00-YAP | BRACKET, FR FOOTREST LH Price: $69.64 |
| 3 | 09106-08150 | BOLT (8X23) Price: $4.22 |
| 4 | 43501-06G01 | FOOTREST ASSY RH Price: $127.82 |
| 9 | 02142-0520B | SCREW Price: $2.15 |
| 10 | 43502-06G01 | FOOTREST ASSY, LH Price: $127.82 |
| 15 | 02142-0520B | SCREW Price: $2.15 |
| 16 | 09208-08010 | PIN (8X33.2) Price: $3.41 |
| 17 | 09448-18022 | SPRING Price: $4.61 |
| 18 | 08332-1106B | E-RING Price: $2.24 |
| 19 | 43610-34A60 | BAR, PILLION FOOTREST RH This part replaces 43610-34A40. Price: $70.69 |
| 20 | 43710-34A60 | BAR, PILLION FOOTREST LH This part replaces 43710-34A40. Price: $67.45 |
| 21 | 43612-33G30 | RUBBER, PILLION FOOTREST This part replaces 43612-33G01. Price: $10.36 |
| 22 | 43631-34A01 | WASHER,FOOTREST RUBBER Price: $5.75 |
| 23 | 43810-28K00-YAP | BRACKET, PILLION FTRST RH Price: $164.42 |
| 24 | 43820-28K00-YAP | BRACKET, PILLION FTRST LH Price: $167.52 |
| 25 | 09106-08074 | BOLT (8X40) Price: $4.76 |
| 26 | 09208-06008 | PIN (6X29.5) Price: $3.58 |
