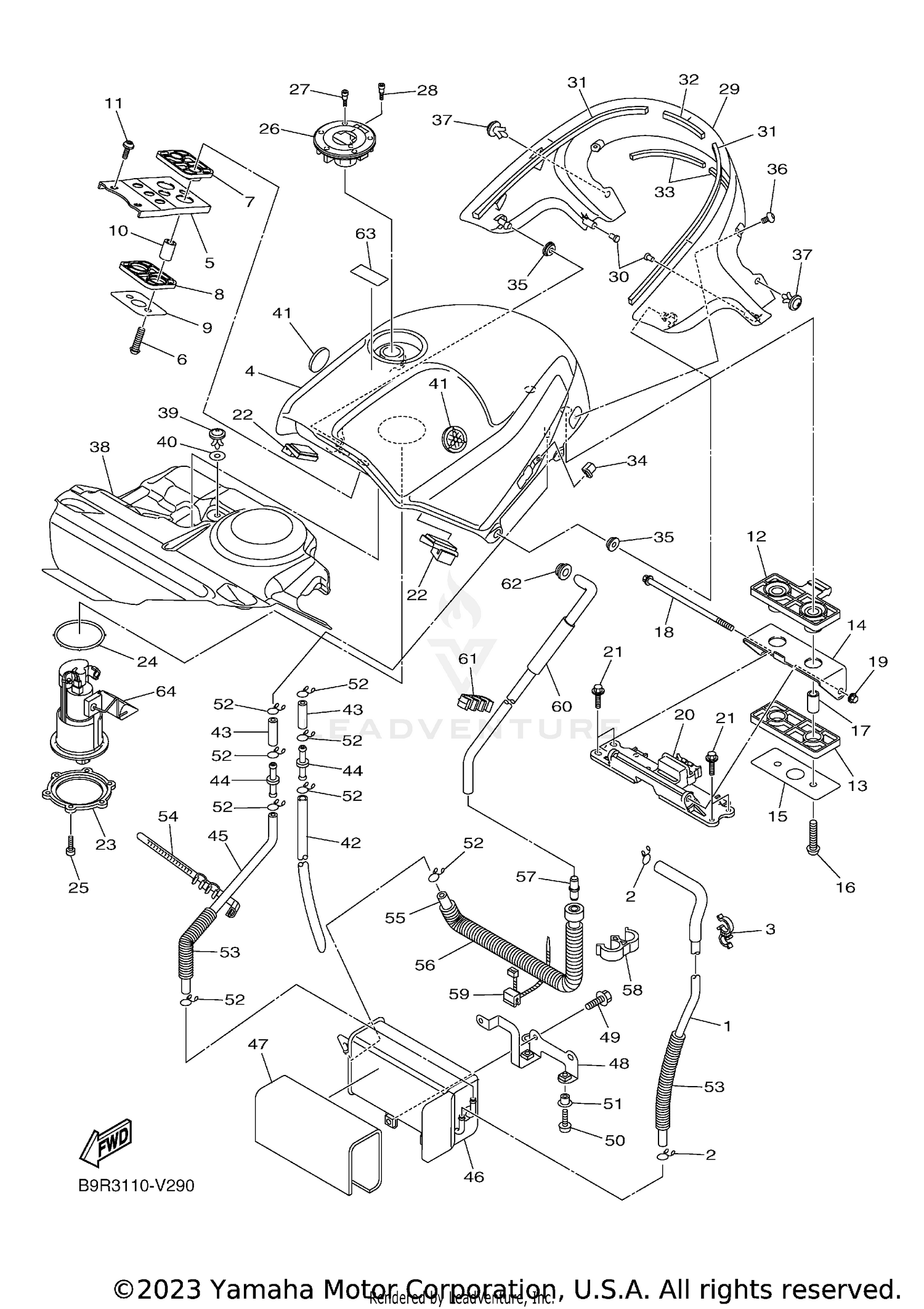

| Ref | Part Number | Description |
|---|
| 1 |
1MC-1443J-10-00 |
PIPE Price: $82.99 |
| 2 |
90467-100A1-00 |
CLIP Price: $8.49 |
| 3 |
90464-28153-00 |
CLAMP Price: $3.75 |
| 5 |
5JW-24191-20-00 |
BRACKET, FUEL TANK 1 Price: $27.99 |
| 6 |
92012-08035-00 |
BOLT, BUTTON HEAD Price: $4.75 |
| 7 |
5JW-24181-00-00 |
DAMPER, LOCATING 1 Price: $11.99 |
| 8 |
5JW-24182-00-00 |
DAMPER, LOCATING 2 Price: $9.49 |
| 9 |
5JW-24187-00-00 |
WASHER, SPECIAL Price: $6.49 |
| 10 |
90387-0813V-00 |
COLLAR Price: $5.49 |
| 11 |
90149-06302-00 |
SCREW Price: $6.49 |
| 12 |
3P6-24183-01-00 |
DAMPER, LOCATING 3 Price: $12.49 |
| 13 |
5JW-24184-01-00 |
DAMPER, LOCATING 4 Price: $18.49 |
| 14 |
5JW-24192-01-00 |
BRACKET, FUEL TANK 2 Price: $28.99 |
| 15 |
5JW-24186-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 16 |
92012-08035-00 |
BOLT, BUTTON HEAD Price: $4.75 |
| 17 |
90387-0813V-00 |
COLLAR Price: $5.49 |
| 18 |
95817-08160-00 |
BOLT, FLANGE This part replaces 95812-08160-00. Price: $16.49 |
| 19 |
95702-08500-00 |
NUT, WITH WASHER Price: $1.05 |
| 20 |
3P6-21348-00-00 |
BRACKET, TANK FITTING Price: $38.99 |
| 21 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95822-06020-00. Price: $3.50 |
| 22 |
3P6-24184-01-00 |
DAMPER, LOCATING 4 Price: $7.99 |
| 23 |
1MC-24491-00-00 |
BRACKET, FUEL PUMP Price: $29.99 |
| 24 |
19B-24486-01-00 |
O-RING Price: $47.99 |
| 25 |
90110-05028-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 26 |
39P-24602-10-00 |
CAP ASSY Price: $276.99 |
| 27 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 28 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 30 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 31 |
3P6-2414H-00-00 |
DAMPER, PLATE 1 Price: $6.49 |
| 32 |
3P6-2414J-00-00 |
DAMPER, PLATE 2 Price: $3.60 |
| 33 |
2D1-2414R-00-00 |
DAMPER, PLATE 6 Price: $8.49 |
| 34 |
5PW-2411J-01-00 |
DAMPER, SIDE COVER Price: $8.49 |
| 35 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 36 |
90111-05023-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 37 |
90269-06081-00 |
RIVET Price: $8.49 |
| 38 |
1MC-2416F-00-00 |
INSULATOR, FUEL TANK 1 Price: $123.99 |
| 39 |
90269-06081-00 |
RIVET Price: $8.49 |
| 40 |
90202-06008-00 |
WASHER, PLATE Price: $5.49 |
| 41 |
1RC-2413B-02-00 |
EMBLEM This part replaces 1RC-2413B-01-00. Price: $22.99 |
| 42 |
90445-11036-00 |
HOSE Price: $19.49 |
| 43 |
90445-11066-00 |
HOSE Price: $3.65 |
| 44 |
4XY-14568-00-00 |
JOINT Price: $7.49 |
| 45 |
B88-24312-10-00 |
PIPE 2 Price: $50.99 |
| 46 |
3P6-24170-00-00 |
CANISTER ASSY Price: $296.99 |
| 47 |
3P6-2414E-00-00 |
SEAL 2 Price: $14.49 |
| 48 |
B88-2419F-00-00 |
BRACKET, CANISTOR Price: $18.49 |
| 49 |
95814-06012-00 |
BOLT, FLANGE This part replaces 95804-06012-00. Price: $2.49 |
| 50 |
92014-06012-00 |
BOLT, BUTTON HEAD Price: $3.55 |
| 51 |
90387-0603J-00 |
COLLAR Price: $10.49 |
| 52 |
90467-100A1-00 |
CLIP Price: $8.49 |
| 53 |
3P6-2432A-00-00 |
PROTECTOR, PIPE 2 Price: $23.99 |
| 54 |
90464-10009-00 |
CLAMP Price: $4.95 |
| 55 |
B88-24314-00-00 |
PIPE 4 Price: $12.49 |
| 56 |
B88-24327-00-00 |
PROTECTOR, PIPE Price: $14.49 |
| 57 |
4JP-21753-00-00 |
BOSS, CONNECTOR Price: $4.35 |
| 58 |
90464-16002-00 |
CLAMP Price: $2.35 |
| 59 |
90464-45005-00 |
CLAMP Price: $3.95 |
| 60 |
B88-24315-00-00 |
PIPE 5 Price: $28.99 |
| 61 |
90464-10011-00 |
CLAMP Price: $4.65 |
| 62 |
90480-15016-00 |
GROMMET Price: $10.49 |
| 63 |
1TP-2118K-A2-00 |
LABEL, CAUTION Price: $8.49 |
