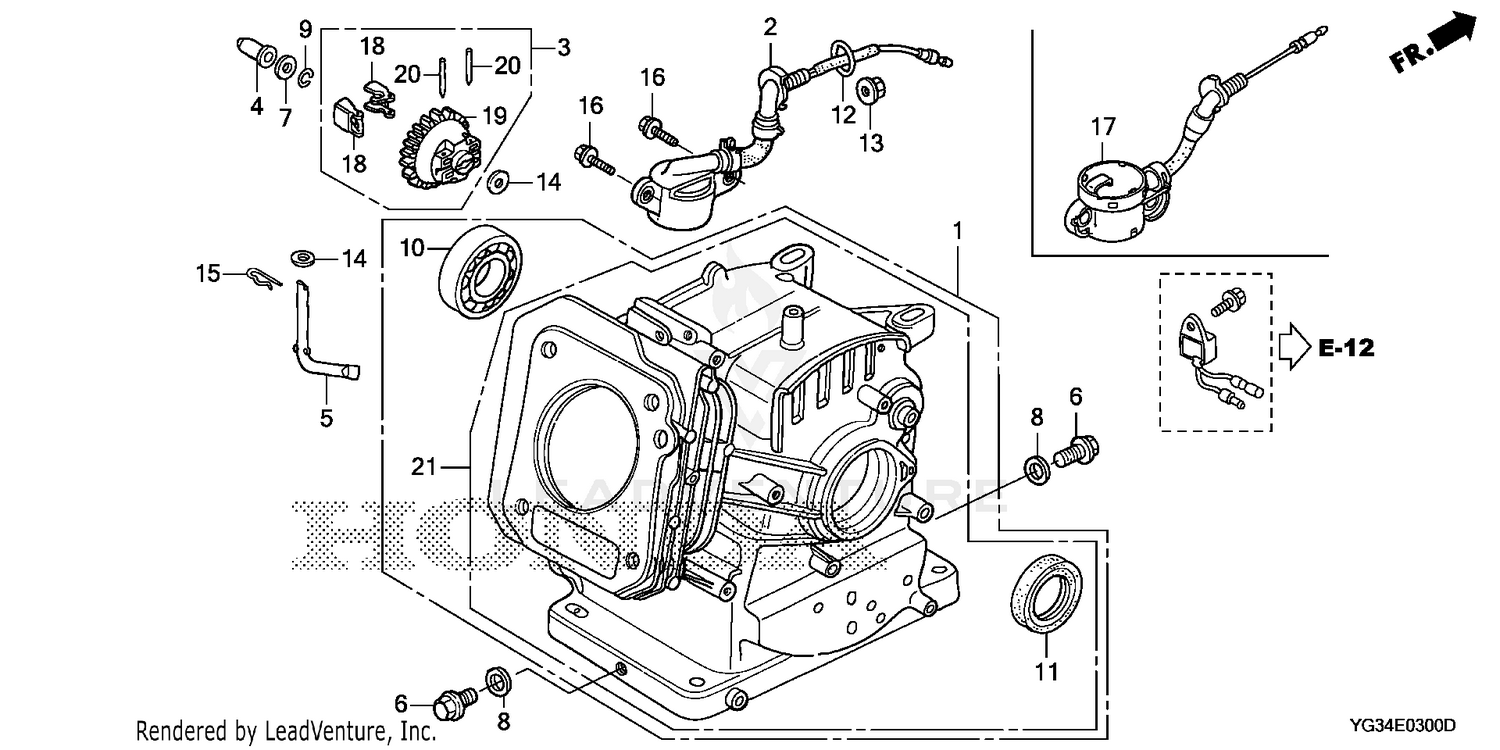

| Ref | Part Number | Description |
|---|
| 1 |
12000-Z0S-416 |
CYLINDER ASSY. (OIL ALERT) Price: $159.85 |
| 3 |
16510-ZE1-000 |
GOVERNOR ASSY. (Honda Code 2414225). Price: $17.16 |
| 4 |
16531-ZE1-000 |
SEE PART DETAILS - PRI; SLIDER, GOVERNOR Price: $3.54 |
| 5 |
16541-ZE1-000 |
SHAFT, GOVERNOR ARM (Honda Code 1427277). Price: $12.56 |
| 6 |
90131-ZE1-000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG Price: $3.04 |
| 7 |
90451-ZE1-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862). Price: $1.98 |
| 8 |
90601-ZE1-000 |
WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583). Price: $0.68 |
| 9 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 10 |
91001-878-003 |
BEARING, RADIAL BALL (62/22) (Honda Code 0442061). Price: $37.88 |
| 11 |
91202-ZE6-013 |
SEE PART DETAILS - PRI; OIL SEAL (22X35X6) (Honda Code 7387756). Price: $10.04 |
| 12 |
91353-671-003 |
SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254. Price: $3.60 |
| 13 |
94050-10000 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867). Price: $1.94 |
| 14 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 15 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
| 16 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 17 |
35480-Z0T-003 |
SWITCH ASSY., OIL LEVEL Price: $74.26 |
| 18 |
16511-ZE1-000 |
WEIGHT, GOVERNOR (Honda Code 1427228). Price: $3.94 |
| 19 |
16512-ZE1-000 |
HOLDER, GOVERNOR WEIGHT (Honda Code 1427236). Price: $24.98 |
