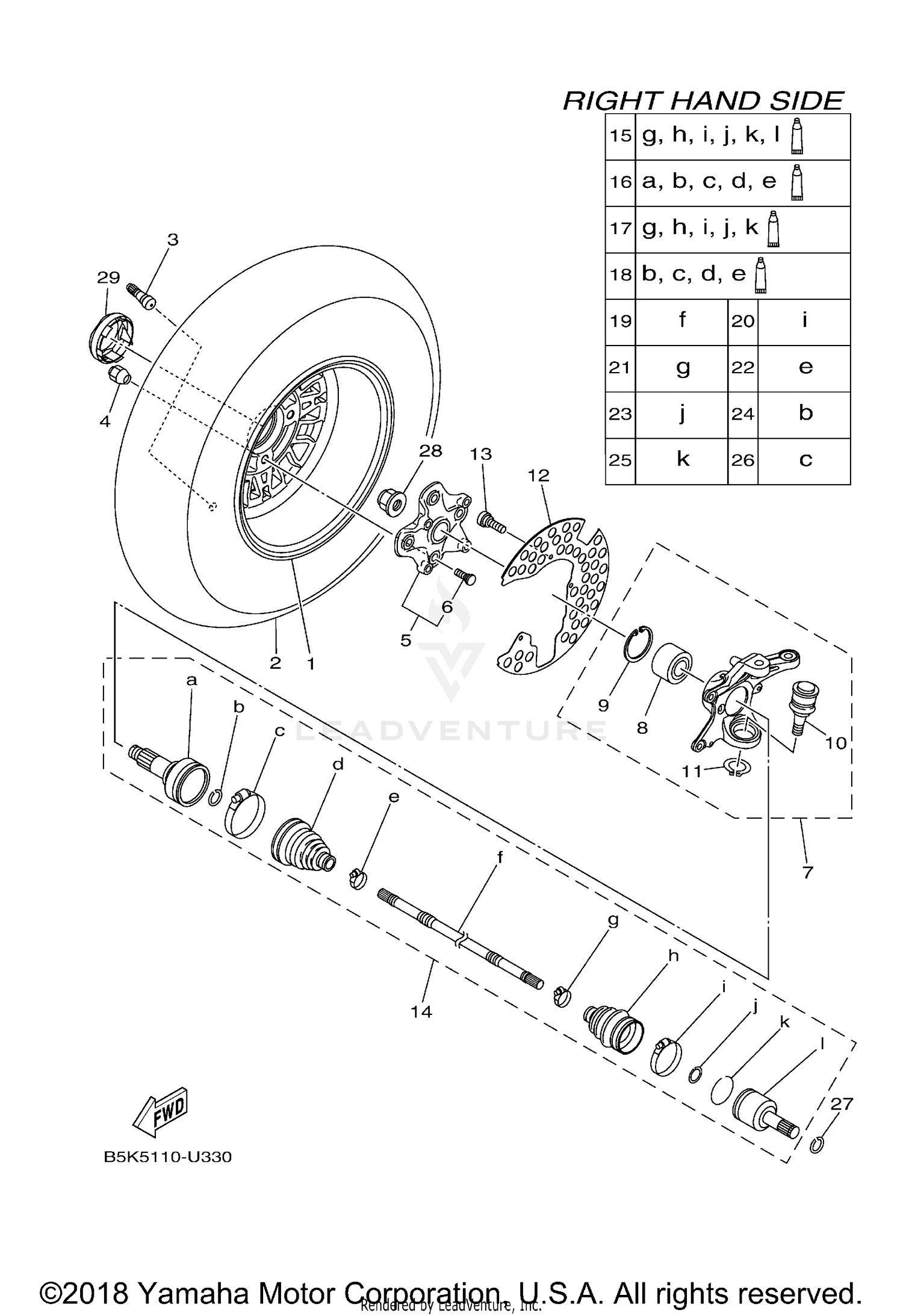

FRONT WHEEL 2
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 90179-10032-00 | NUT Price: $14.49 |
| 5 | B16-F510D-03-00 | HUB ASSY 2 This part replaces B16-F510D-01-00. Price: $59.99 |
| 6 | 90114-10014-00 | BOLT, SERRATION Price: $3.55 |
| 7 | 2BG-F3502-11-00 | STEERING,KNUCKLE (R) Price: $177.99 |
| 8 | 93305-00602-00 | BEARING Price: $110.99 |
| 9 | 99009-55500-00 | CIRCLIP Price: $10.49 |
| 10 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 11 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 12 | BB5-F514A-00-00 | RING, WHEEL 1 Price: $16.49 |
| 13 | 98980-06010-00 | SCREW, BIND This part replaces 98902-06010-00. Price: $10.49 |
| 14 | 28P-2518F-04-00 | DRIVE SHAFT ASSY This part replaces 28P-2518F-03-00. Price: $249.99 |
| 19 | 28P-2518E-01-00 | SHAFT Price: $104.99 |
| 20 | 3B4-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $14.49 |
| 21 | 3B4-2512G-00-00 | BOOT BAND (SMALL) Price: $14.49 |
| 22 | 28P-2512G-00-00 | BOOT BAND (SMALL) Price: $17.99 |
| 23 | 3B4-2512J-00-00 | SNAP RING Price: $9.49 |
| 24 | 3B4-2512H-00-00 | CIRCLIP Price: $7.49 |
| 25 | 3B4-25182-00-00 | CIRCLIP Price: $7.49 |
| 26 | 28P-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $16.49 |
| 27 | 93450-22119-00 | CIRCLIP Price: $9.49 |
| 28 | 90179-20016-00 | NUT Price: $12.99 |
