Home / POWERSPORTS / SNOWMOBILE / 2017 / 2017 ZR 8000 LXR ES 129 BLACK [S2017ZRHLXUSB] / TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [104469]

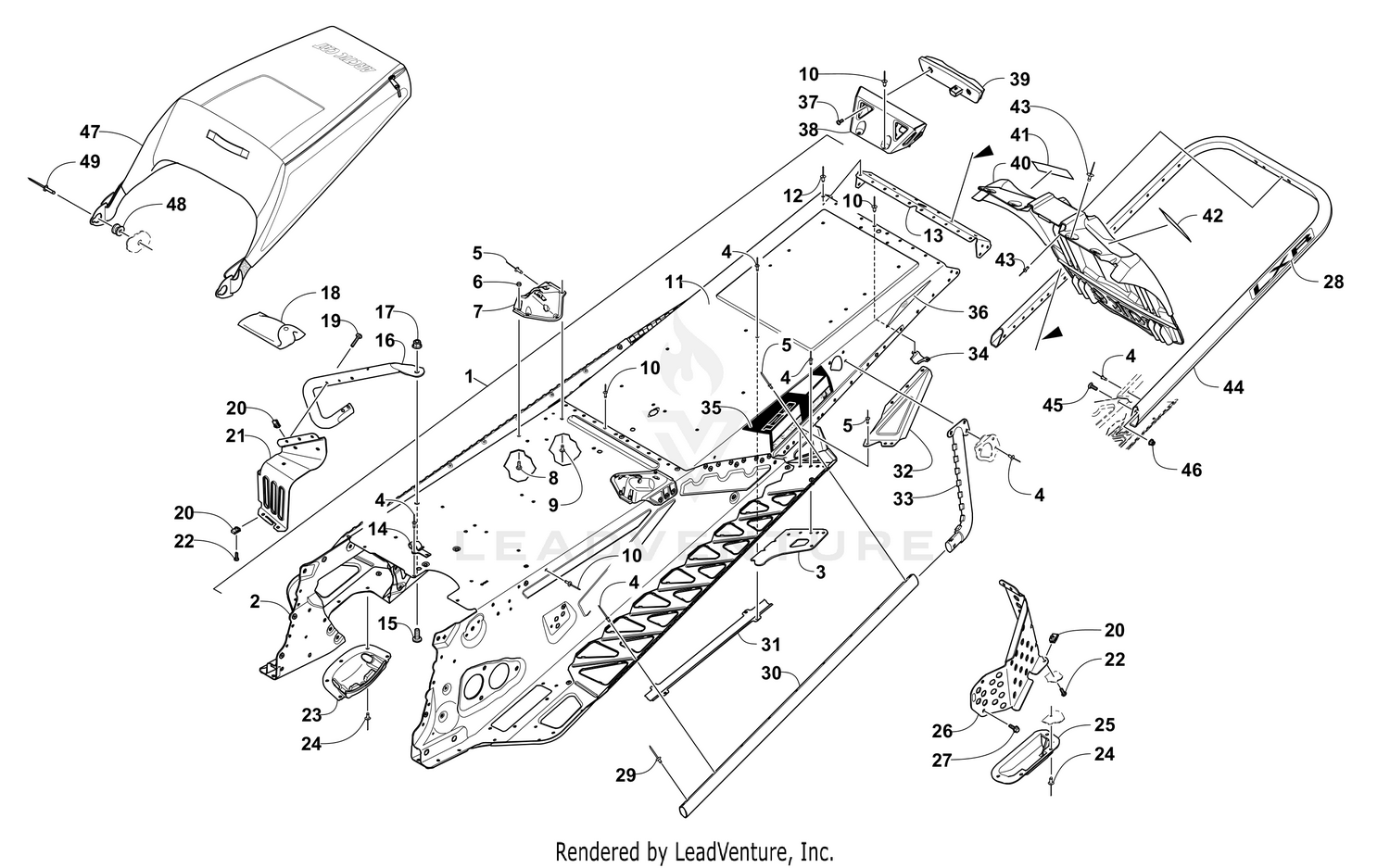

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [104469]

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [104469]

Parts (51)

RefPart NumberDescription
3 0607-992 Bracket, Mounting - Suspension - Right Price: $16.92
3 0607-993 Bracket, Mounting - Suspension - Left Price: $16.92
4 8060-686 Rivet - Zinc Price: $0.46
5 1623-241 Rivet Price: $2.05
6 8422-502 Nut, Lock Price: $0.48
7 1707-644 Bracket, Mounting - Rear Spar - Right Price: $33.95
7 1707-645 Bracket, Mounting - Rear Spar - Left Price: $33.95
8 8476-512 Screw, Machine Price: $1.45
9 1623-257 Rivet Price: $2.30
10 8060-682 Rivet Price: $0.24
11 1607-250 Tunnel, Rear Price: $755.95
12 8060-484 Rivet Price: $0.46
13 1607-104 End Cap, Tunnel Price: $41.95
14 0645-709 Clip, Routing Price: $13.28
15 8476-820 Screw, Machine Price: $1.08
16 1707-454 Support, Footrest - Right Price: $71.95
16 1707-455 Support, Footrest - Left Price: $71.95
17 8427-802 Nut, Lock Price: $0.58
18 0744-087 Kit, Tool Price: $90.14
19 8468-535 Screw, Machine Price: $1.07
20 1623-637 Clip, U-Nut Price: $2.61
21 0607-996 Footrest - Right Price: $28.95
21 0607-997 Footrest - Left Price: $28.95
22 8470-516 Screw, Machine Price: $0.35
23 1607-109 Protector, Chain Case Price: $5.90
24 8061-708 Rivet Price: $1.08
25 0607-351 Protector, Brake Disc Price: $13.28
26 1607-371 Shield, Brake Disc Price: $111.95
27 8408-613 Screw, Cap Price: $1.66
28 3621-245 Decal, Rear Bumper - "LXR" Price: $12.07
29 1623-130 Rivet Price: $1.80
30 1607-092 Roll, Tunnel - Right Price: $64.95
31 0630-308 Protector, Harness - Taillight Extension Price: $18.13
32 1607-162 Gusset, Running Board - Right Price: $19.35
32 1607-163 Gusset, Running Board - Left Price: $19.35
33 1607-040 Gusset, Tunnel Roll - Right Price: $22.99
33 1607-041 Gusset, Tunnel Roll - Left Price: $22.99
34 0630-292 Protector, Taillight Harness Price: $16.92
35 3621-246 Decal, Tunnel - Right - 129" Price: $2.08
35 3621-247 Decal, Tunnel - Left - 129" Price: $2.08
36 0621-990 Decal, Reflector - Red Price: $15.42
37 8470-510 Screw, Machine Price: $0.71
38 0630-328 Bracket, Mounting - Taillight Price: $30.95
39 0609-898 Taillight, LED Price: $70.95
40 6606-394 Snowflap Price: $109.95
43 8061-706 Rivet Price: $1.07
44 2707-579 Bumper, Rear - White Price: $121.95
45 8476-620 Screw, Machine Price: $0.48
46 8427-602 Nut, Hex Price: $0.23
47 6606-600 Saddlebag Price: $242.95
48 1623-940 Mount, Saddlebag Price: $2.17
