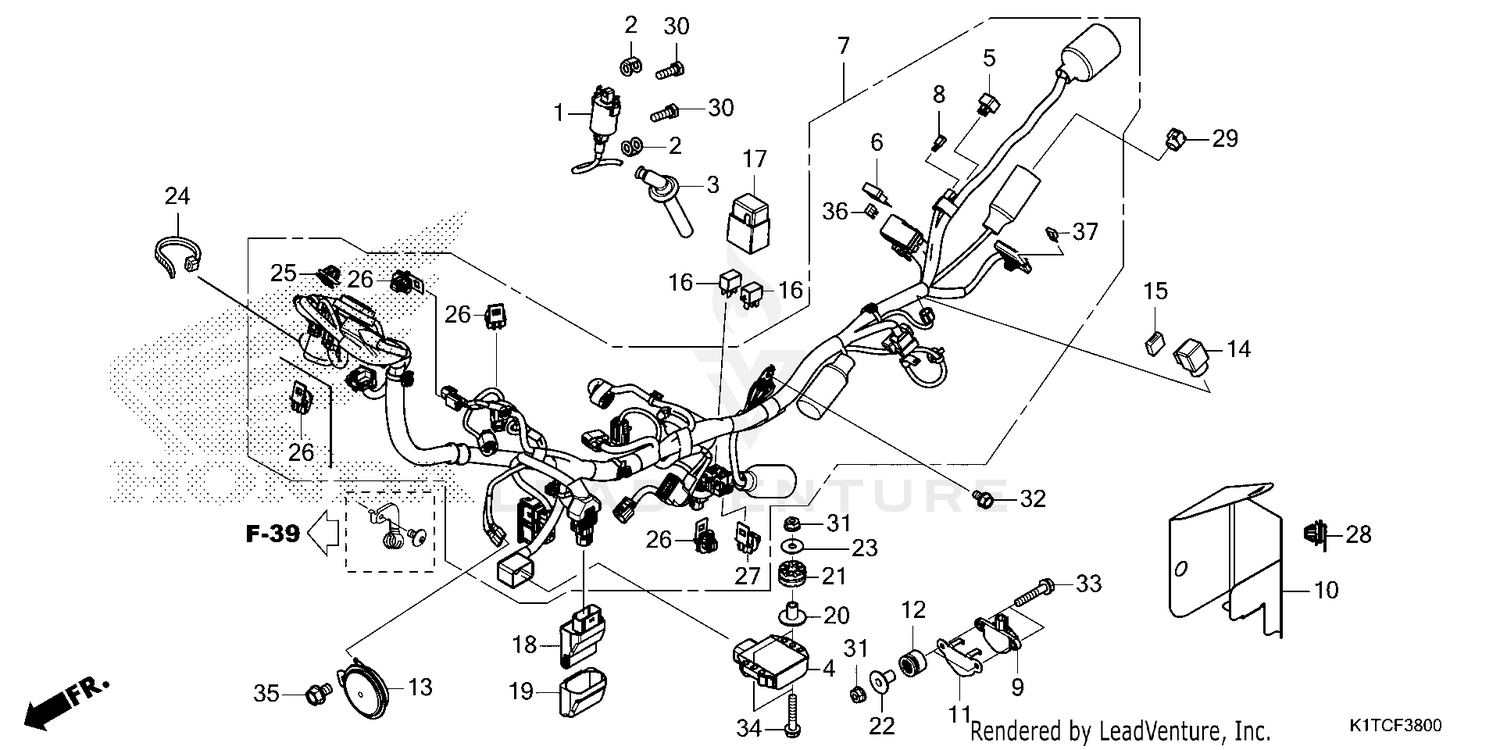

| Ref | Part Number | Description |
|---|
| 1 |
30510-K1T-E11 |
COIL, IGNITION Price: $24.36 |
| 2 |
30520-GFM-900 |
SPACER, IGNITION COIL Price: $2.98 |
| 3 |
30700-KZZ-901 |
CAP ASSY., NOISE SUPPRESSOR Price: $46.58 |
| 4 |
31600-KZZ-J01 |
RECTIFIER ASSY., REGULATOR Price: $120.20 |
| 5 |
31700-MM8-610 |
RECTIFIER, SILICON Price: $28.55 |
| 6 |
31730-MAS-601 |
DIODE ASSY., THREE WAY (SUMITOMO) Price: $13.09 |
| 7 |
32100-K1T-AF0 |
WIRE HARNESS Price: $870.22 |
| 8 |
32146-S84-003 |
CONNECTOR, DIODE (2P) (3A) Price: $18.03 |
| 9 |
35160-KVS-751 |
SENSOR ASSY., BANK ANGLE (M6) Price: $123.91 |
| 10 |
35161-K1T-E10 |
RUBBER, HEAT GUARD Price: $10.15 |
| 11 |
35161-KZZ-900 |
STAY, BANK ANGLE SENSOR Price: $2.95 |
| 12 |
37244-MM4-000 |
RUBBER, SPEEDOMETER MOUNTING Price: $6.42 |
| 13 |
38110-KPP-T01 |
HORN (HIGH) Price: $40.00 |
| 14 |
38301-KYJ-641 |
RELAY, TURN SIGNAL (MITSUBA) Price: $85.85 |
| 15 |
38306-KK4-000 |
SUSPENSION, TURN SIGNAL RELAY (MITSUBA) Price: $3.78 |
| 16 |
38501-MKR-D11 |
RELAY, POWER (MICRO ISO 4P) Price: $14.87 |
| 17 |
38506-KZZ-900 |
COVER, RELAY (2P) Price: $4.13 |
| 18 |
38770-K1T-AB1 |
PGM-FI UNIT Price: $177.07 |
| 19 |
38771-K1T-J10 |
SUSPENSION, PGM-FI UNIT Price: $4.05 |
| 20 |
61104-428-010 |
COLLAR, FR. FENDER (WHITE) (FOR RR.) Price: $5.29 |
| 21 |
77208-KW7-900 |
RUBBER B, SEAT MOUNTING Price: $4.11 |
| 22 |
77302-473-000 |
COLLAR, PILLION SEAT Price: $4.93 |
| 23 |
90525-030-000 |
WASHER B, HANDLE HOLDER SETTING Price: $2.09 |
| 24 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 25 |
91533-MGS-D30 |
CLIP, CONNECTOR (BLACK) Price: $1.53 |
| 26 |
91535-TA0-003 |
CLIP, CONNECTOR (DARK BROWN) Price: $5.20 |
| 27 |
91565-S0X-003 |
CLIP, CONNECTOR (DARK GREEN) Price: $3.80 |
| 28 |
91565-SEL-003 |
CLIP, CONNECTOR (BLACK) (Honda Code 7386865) Price: $4.62 |
| 29 |
91771-MKK-H11 |
CAP, DUMMY (6P) (RED) Price: $25.67 |
| 30 |
92101-06020-4J |
BOLT, HEX. (6X20) Price: $1.58 |
| 31 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 32 |
95701-06010-08 |
BOLT, FLANGE (6X10) Price: $1.68 |
| 33 |
95701-06030-00 |
BOLT, FLANGE (6X30) Price: $1.97 |
| 34 |
95701-06032-08 |
BOLT, FLANGE (6X32) Price: $1.97 |
| 35 |
95701-08012-08 |
BOLT, FLANGE (8X12) Price: $1.83 |
| 36 |
98200-41000 |
FUSE, MINI (10A) Price: $1.38 |
