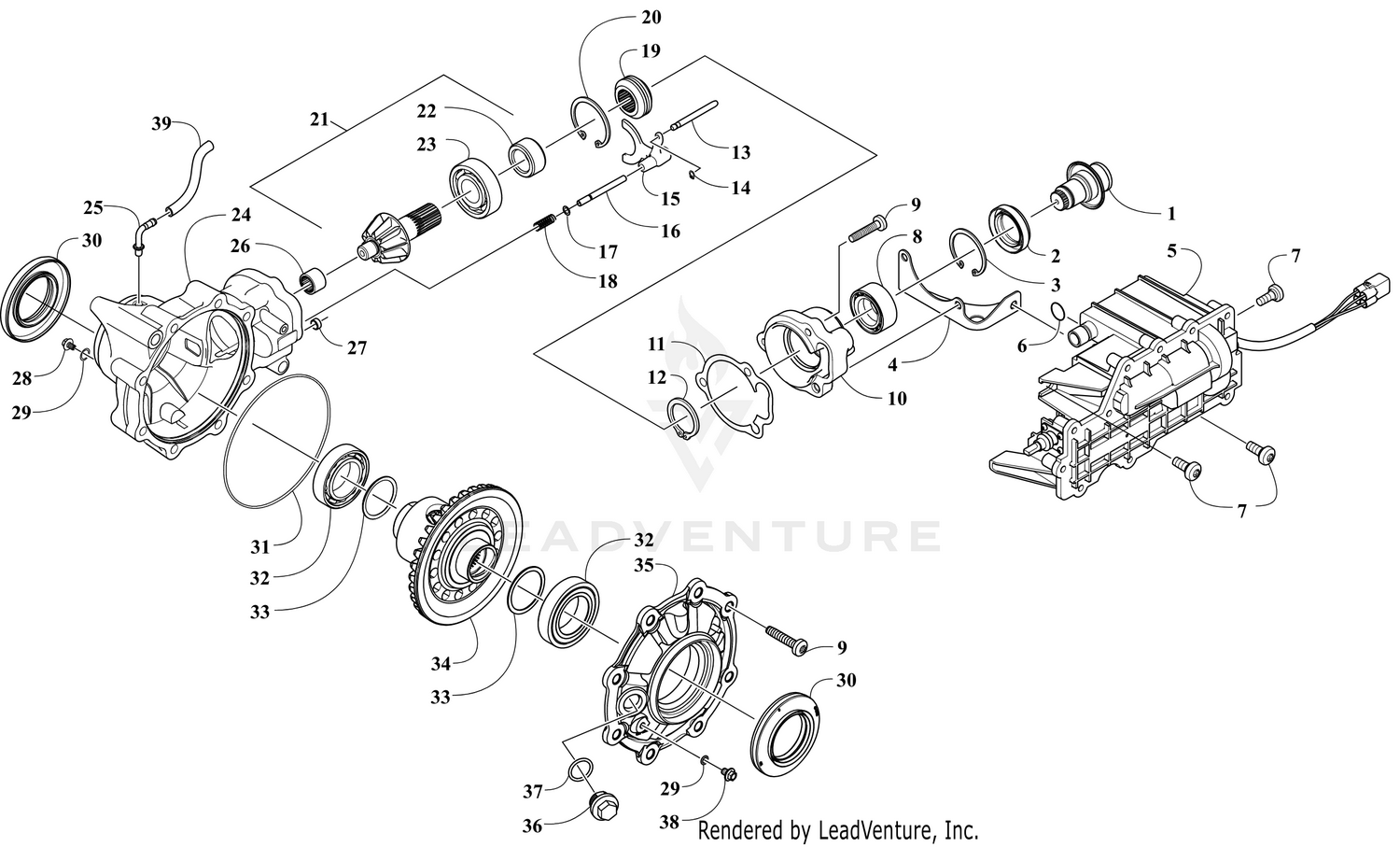

FRONT DRIVE GEARCASE ASSEMBLY [304002]

Parts (38)

Ref	Part Number	Description
0	2502-673	Complete Front Drive Gearcase Assembly Price: $1,341.95
1	2502-156	Shaft, Input Price: $98.95
2	1402-011	Seal Price: $9.95
3	0423-423	Ring, Retaining Price: $4.48
4	3323-241	Bracket, Actuator Price: $14.08
6	1402-981	O-Ring Price: $0.76
7	0423-396	Screw, Self-Tapping Price: $3.38
8	1402-043	Bearing Price: $72.95
9	0423-118	Screw, Self-Tapping Price: $1.85
10	0502-528	Housing, Pinion Price: $202.95
11	0402-947	Gasket, Flange Price: $3.29
12	0423-417	Ring, Retaining Price: $8.51
13	0402-997	Shaft, Selector Price: $77.95
14	0423-402	Ring, Retaining Price: $0.49
15	0402-998	Fork, Selector Price: $93.95
16	0402-417	Shaft, Shuttle Price: $21.39
17	0423-147	O-Ring Price: $1.56
18	0402-999	Spring, Return Price: $1.85
19	0402-413	Coupler, Drive Price: $65.95
20	1423-067	Ring, Retaining Price: $2.30
22	1402-977	Collar, Retaining Price: $55.95
23	0402-327	Bearing Price: $26.95
24	1502-856	Housing, Gearcase Price: $325.95
25	2402-162	Fitting, Elbow Price: $48.95
26	0402-328	Bearing Price: $18.52
27	0402-411	Pin, Dowel Price: $7.15
29	0423-153	O-Ring Price: $4.11
30	2402-240	Seal Price: $18.13
31	0423-149	O-Ring Price: $1.99
32	0402-393	Bearing Price: $18.52
33	0402-405	Shim, 41 x 49 x 1.3 mm Price: $11.36
33	0402-406	Shim, 41 x 49 x 1.4 mm Price: $11.36
33	0402-407	Shim, 41 x 49 x 1.5 mm Price: $11.36
33	0402-408	Shim, 41 x 49 x 1.6 mm Price: $12.81
33	0402-409	Shim, 41 x 49 x 1.7 mm Price: $11.36
34	2502-547	Gear, Ring - 34T Price: $568.95
35	2502-675	Cover, Gearcase Price: $107.95
37	0423-154	O-Ring Price: $3.29
