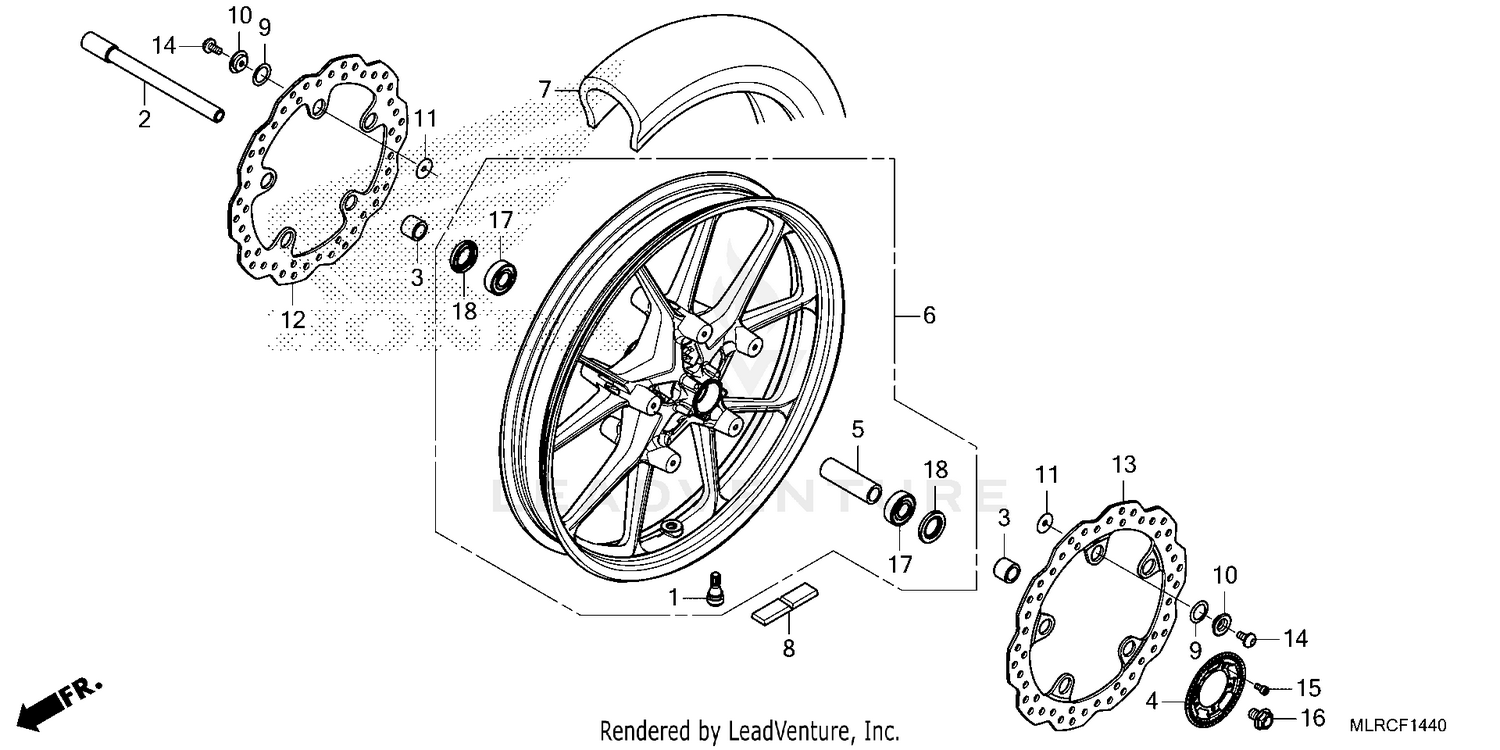

| Ref | Part Number | Description |
|---|
| 1 |
42753-GM9-743 |
VALVE, RIM (IRC) Price: $10.51 |
| 2 |
44301-MKP-DQ0 |
AXLE, FR. WHEEL Price: $27.11 |
| 3 |
44311-MKP-DN0 |
COLR, FR. WHEEL SIDE Price: $9.29 |
| 4 |
44515-K2Y-A00 |
RING, FR. PULSER Price: $19.15 |
| 5 |
44620-MKP-DQ0 |
COLLAR, FR. Price: $9.44 |
| 6 |
44650-MLR-D80 |
WHEEL SUB-ASSY., FR. Price: $355.56 |
| 7 |
44711-MKP-J82 |
TIRE, FR. (110/80R19 M/C 59H) (DUNLOP) Price: $193.07 |
| 9 |
45223-MLR-D01 |
SPRING, FR. DISK Price: $1.84 |
| 10 |
45225-MLR-D00 |
COLLAR, FR. DISK Price: $3.65 |
| 11 |
45226-MGC-000 |
WASHER, FR. DISK Price: $6.16 |
| 12 |
45251-MKP-DN1 |
DISK, R. FR. BRAKE Price: $136.12 |
| 13 |
45351-MKP-DN1 |
DISK, L. FR. BRAKE Price: $136.12 |
| 14 |
90105-MLR-D00 |
BOLT (6X13) Price: $1.15 |
| 15 |
90131-K87-L50 |
BOLT, SOCKET (5X10) Price: $0.65 |
| 16 |
90305-K87-A00 |
BOLT, FR. AXLE Price: $1.51 |
| 17 |
91051-KVK-901 |
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) Price: $11.29 |
