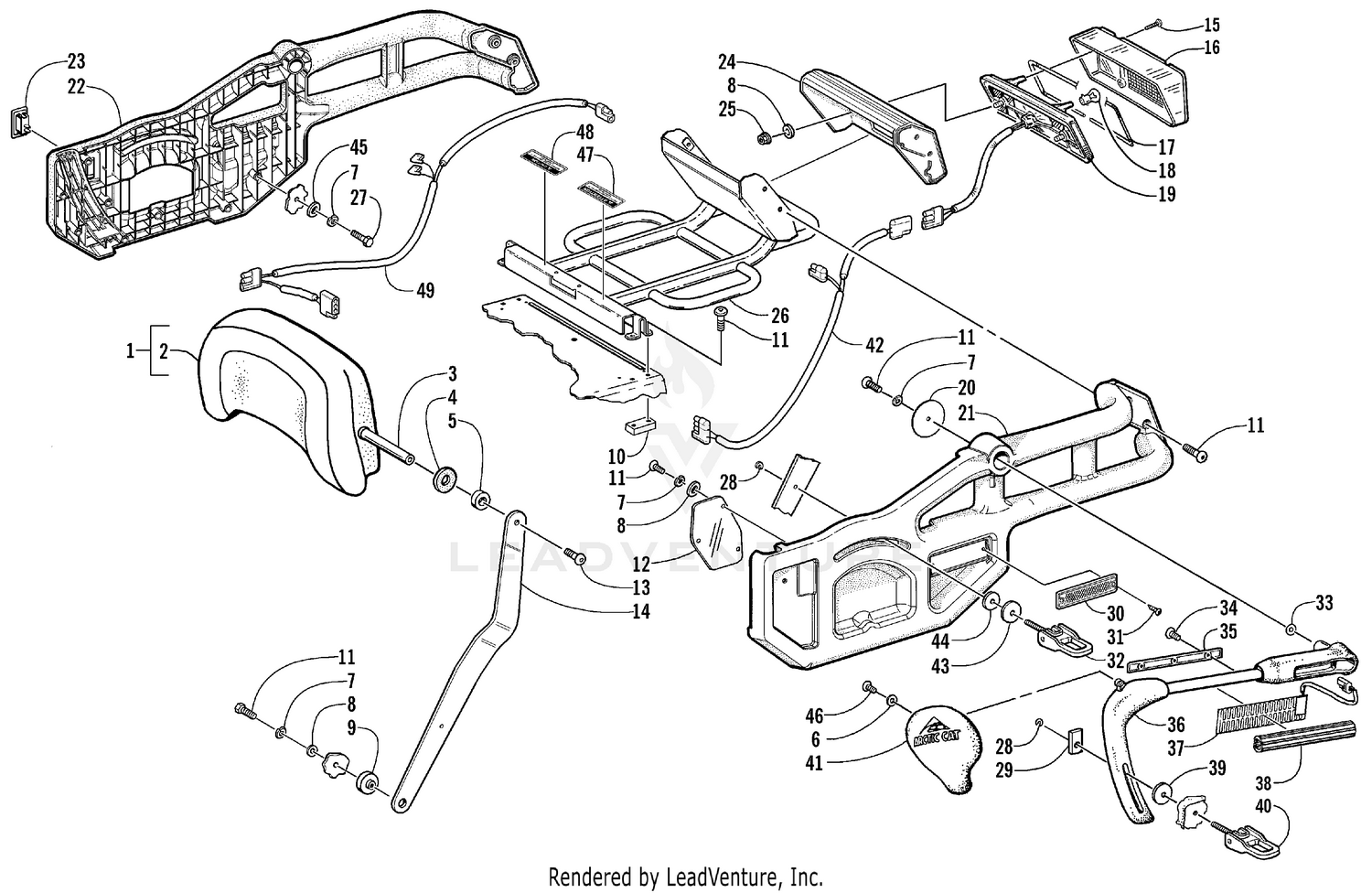

BACKREST AND TAILLIGHT ASSEMBLY [76870]

BACKREST AND TAILLIGHT ASSEMBLY [76870]

Parts (48)

RefPart NumberDescription
2 1706-375 Cover, Backrest Price: $81.95
3 0114-163 Axle, Inner Carriage Price: $55.03
4 0723-003 Washer, Cup Price: $10.85
5 0616-547 Block, Tension - Backrest Price: $6.06
6 0123-802 Washer Price: $0.23
7 8051-217 Washer, Lock Price: $0.29
8 8050-212 Washer Price: $0.82
9 1606-903 Spacer, Backrest Adjuster Price: $4.94
10 2606-786 Plate - Heat Exchanger Price: $76.95
11 8017-582 Screw, Machine Price: $0.59
12 2706-129 Retainer, Handhold - Passenger - Painted Black Price: $14.55
13 0623-566 Screw, Machine Price: $1.80
14 2706-126 ARM,ADJ BACKREST-RH-PTD BLK Price: $103.95
14 2706-127 ARM,ADJ BACKREST-LH-PTD BLK Price: $103.95
15 0609-093 Screw, Retaining Price: $0.71
16 0609-090 Lens, Taillight Price: $26.95
17 0609-092 Gasket, Taillight Lens Price: $14.55
18 0109-460 Bulb, Stop/Taillight Price: $2.17
19 0609-091 Taillight w/Socket Assembly Price: $72.95
20 2706-128 Retainer, Handhold - Painted Black Price: $49.95
21 1606-683 Bracket, Backrest/Rack - Left Price: $195.95
22 1606-682 Bracket, Backrest/Rack - Right Price: $161.95
23 0609-370 Switch, Handwarmer - Passenger Price: $54.95
24 1606-689 Cover, Taillight Price: $102.95
25 0623-038 Nut Price: $0.35
26 1706-230 Bracket, Mounting - Rack/Taillight Price: $129.95
27 8002-042 Screw, Cap Price: $0.48
28 0623-826 E-Ring Price: $0.09
29 0623-850 T-Nut Price: $12.07
30 0606-029 Reflector - Red Price: $14.49
31 0623-269 Clip, Retaining Price: $1.32
32 1606-819 Lever, Quick-Release - Backrest Price: $40.95
33 0670-183 O-Ring Price: $0.35
34 0623-727 Screw, Self-Tapping Price: $0.49
35 1606-772 Retainer, Handgrip - Passenger Price: $15.67
36 1606-684 Handhold, Passenger - Right Price: $146.95
36 1606-685 Handhold, Passenger - Left Price: $162.95
37 0609-476 Element, Handwarmer - Passenger Price: $50.95
38 1606-771 Handgrip, Passenger Handhold Price: $8.95
39 0623-837 Washer, Friction Price: $2.29
40 1606-688 Lever, Quick-Release - Handhold Price: $39.95
41 1606-238 Deflector, Wind - Right Price: $50.95
41 1606-239 Deflector, Wind - Left Price: $41.95
42 0686-701 Harness, Handwarmer - Passenger - Left Price: $66.76
43 0623-842 Washer Price: $3.19
44 0623-838 Washer, Friction Price: $6.69
45 8050-222 Washer Price: $0.70
46 0623-378 SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y Price: $0.86
