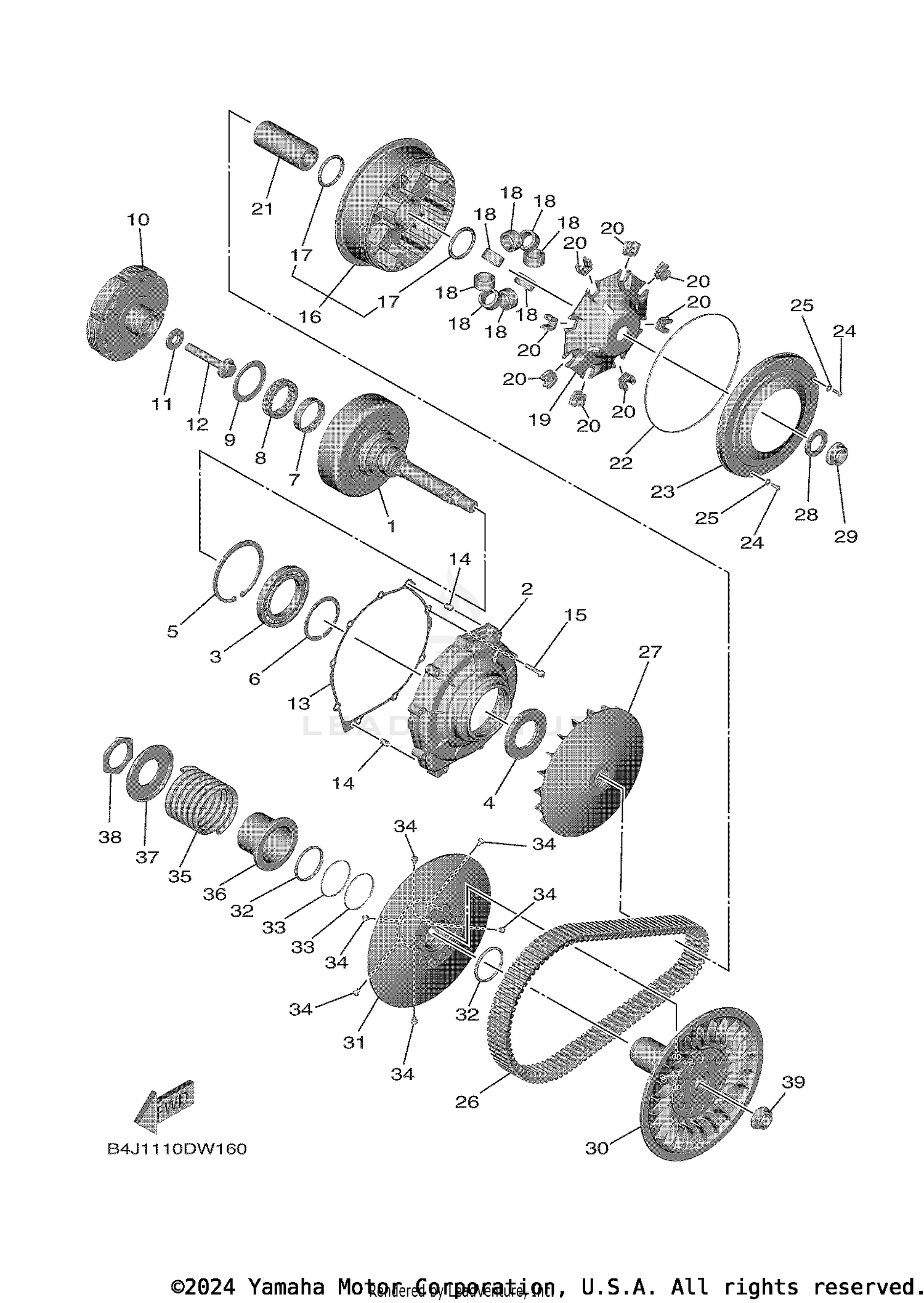

| Ref | Part Number | Description |
|---|
| 1 |
B1R-16611-00-00 |
CLUTCH HOUSING COMP. Price: $326.99 |
| 2 |
BG4-15163-00-00 |
HOUSING, BEARING 1 Price: $95.99 |
| 3 |
93316-01201-00 |
BEARING Price: $96.99 |
| 4 |
93102-45009-00 |
OIL SEAL Price: $27.99 |
| 5 |
99009-95500-00 |
CIRCLIP Price: $17.49 |
| 6 |
99009-60800-00 |
CIRCLIP Price: $10.49 |
| 7 |
93317-445B3-00 |
BEARING Price: $46.99 |
| 8 |
B1R-16664-00-00 |
BEARING, ONE WAY Price: $100.99 |
| 9 |
1HP-16717-00-00 |
RING, SEAL Price: $34.99 |
| 10 |
B1R-16620-00-00 |
CLUTCH CARRIER ASSY Price: $419.99 |
| 11 |
90201-12191-00 |
WASHER, PLATE This part replaces 90201-121H0-00. Price: $8.49 |
| 12 |
90401-12004-00 |
BOLT, UNION Price: $39.99 |
| 13 |
BG4-15463-00-00 |
GASKET, 2 Price: $17.49 |
| 14 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 15 |
90105-06102-00 |
BOLT, FLANGE Price: $4.30 |
| 16 |
B4J-17606-00-00 |
PRIMARY SLIDING SHEA Price: $187.99 |
| 17 |
93101-41001-00 |
OIL SEAL Price: $17.49 |
| 18 |
B4J-17632-00-00 |
WEIGHT Price: $16.49 |
| 19 |
BG4-17623-00-00 |
CAM Price: $141.99 |
| 20 |
BG4-17653-00-00 |
SLIDER Price: $5.99 |
| 21 |
B4J-17645-00-00 |
COLLAR Price: $102.99 |
| 22 |
93211-74001-00 |
O-RING Price: $10.49 |
| 23 |
BG4-17639-00-00 |
STOPPER Price: $14.49 |
| 24 |
90157-04006-00 |
SCREW, PAN HEAD Price: $5.49 |
| 26 |
B4J-17641-00-00 |
V-BELT Price: $224.99 |
| 27 |
B4J-17611-00-00 |
SHEAVE, PRIMARY FIXE Price: $101.99 |
| 28 |
90201-26016-00 |
WASHER, PLATE Price: $11.49 |
| 29 |
90179-22025-00 |
NUT Price: $22.99 |
| 30 |
B4J-17660-10-00 |
SECONDARY FIXED SHEA Price: $438.99 |
| 31 |
B4J-17670-00-00 |
SECONDARY SLIDING SH Price: $314.99 |
| 32 |
93101-48004-00 |
OIL SEAL Price: $31.99 |
| 33 |
93210-50768-00 |
O-RING Price: $8.49 |
| 34 |
4CW-17664-00-00 |
PIN, GUIDE Price: $8.49 |
| 35 |
90501-850A1-00 |
SPRING, COMPRESSION Price: $44.99 |
| 36 |
B4J-17690-00-00 |
SPRING SEAT COMP. Price: $95.99 |
| 37 |
BG4-17644-00-00 |
SEAT,SPRING Price: $9.49 |
| 38 |
90170-42003-00 |
NUT Price: $29.99 |
