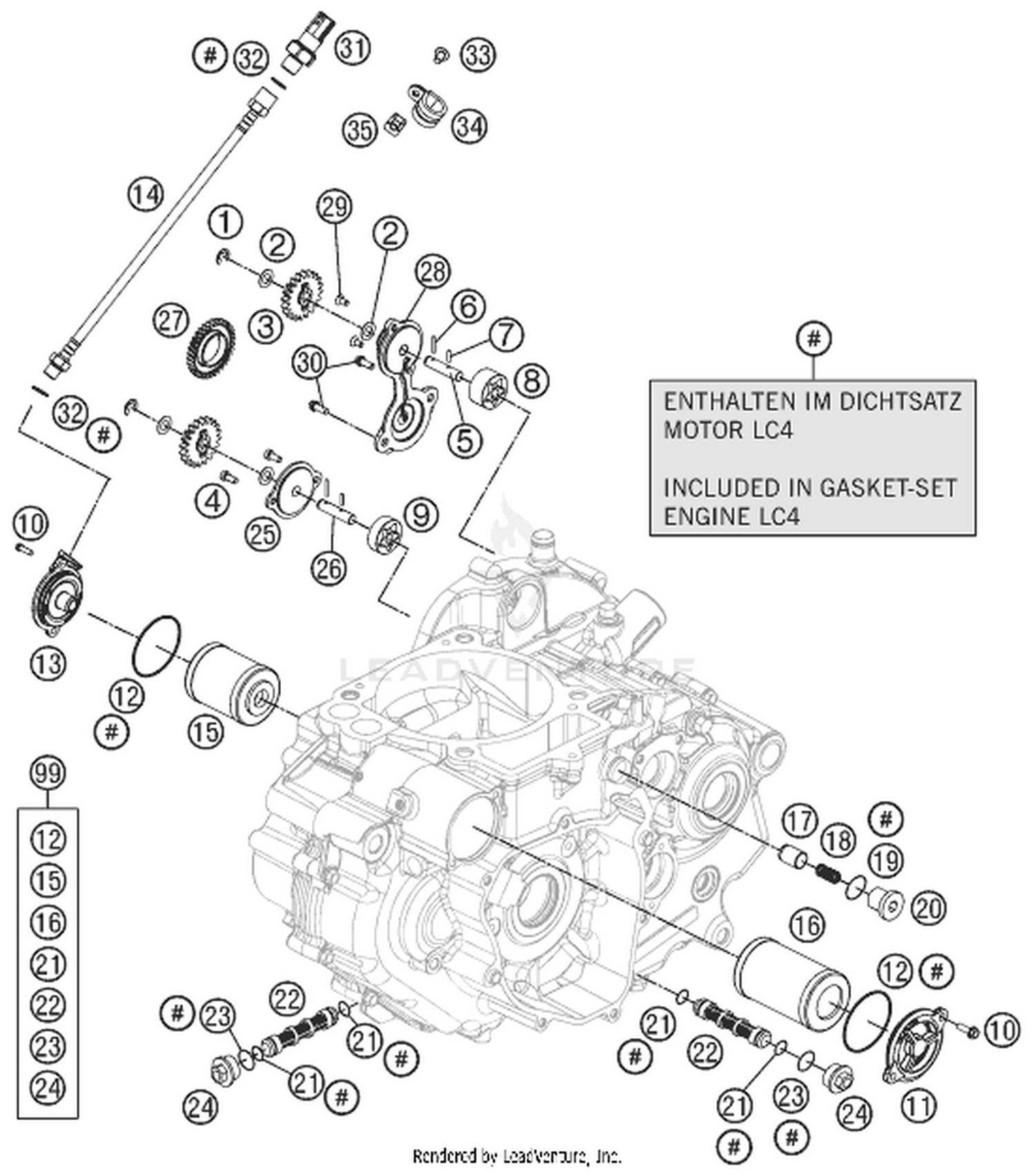

38 LUBRICATING SYSTEM

38 LUBRICATING SYSTEM

Parts (29)

RefPart NumberDescription
1 0799060000 TAB WASHER DIN6799-RS 6,0 Price: Call Us
2 58038007755 STOP DISK 8,1 X 15 X 0,5 Price: Call Us
3 75038001020 OIL PUMP GEAR 20-T Price: Call Us
4 073801050105S Oval head screw ISR M5x10-10.9 This part replaces 07984050100. Price: Call Us
5 75038002000 OIL PUMP SHAFT 07 Price: Call Us
6 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 Price: Call Us
7 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 Price: Call Us
8 77038011000 OILPUMP ROTOR 15MM G-164 Price: Call Us
9 59038011010 OILPUMP ROTOR CPL. 10MM G-73R Price: Call Us
10 0025050166 HH collar screw M5x16 TX30 Price: Call Us
12 07700390261 O-RING 39,34X2,62 Price: Call Us
13 76038041000 OILFILTER COVER Price: Call Us
14 76538034000 OIL PIPE Price: Call Us
15 75038046100 OIL FILTER SHORT Price: Call Us
16 58038005100 OIL FILTER LONG Price: Call Us
17 58038028000 VALVE PISTON D=10MM Price: Call Us
18 58538023000 OIL PRES.SPRING 5 BAR RED 2001 Price: Call Us
19 58038022000 CU-seal ring DIN7603-12X18X1.5 Price: Call Us
21 07701250151 O-RING 12,5X1,5 VITON V75 Price: Call Us
22 59038016200 Oil screen This part replaces 59038016100. Price: Call Us
24 59038017100 PLUG M20X1,5 WS=13 This part replaces 59038017000. Price: Call Us
26 75038004000 OIL PUMP SHAFT 07 Price: Call Us
27 75032050001 OIL PUMP DRIVE WHEEL 07 Price: Call Us
28 76038003000 OIL PUMP COVER Price: Call Us
29 0019050163S INT. TORX FLAT HEAD M5X16 8.8 Price: Call Us
30 0025060166S HH collar screw M6x16 TX30 SL Price: Call Us
31 61238091144 Oil pressure switch cpl. Bitron This part replaces 61238091000. Price: Call Us
33 58605083010 SCREW TORX M5X10 05 Price: Call Us
34 49007439000 CLAMP RSGU 15/12 Price: Call Us
