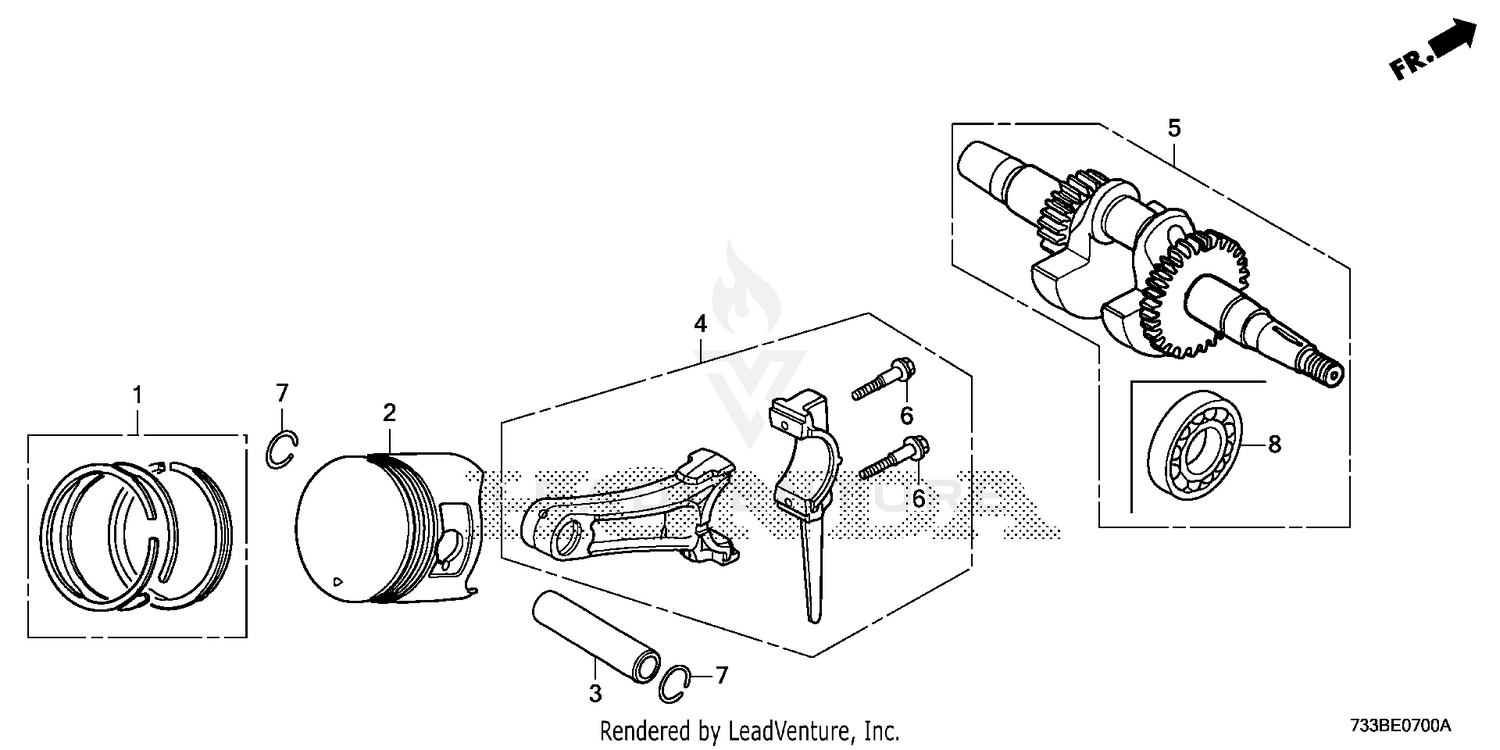

PISTON@CRANKSHAFT
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13010-Z1T-931 | RING SET, PISTON (STD) (TPR) Price: $41.32 |
| 1 | 13010-Z1T-932 | RING SET, PISTON (STD) (RIKEN) (NA USE ALT:13010-Z1T-931) Price: $30.28 |
| 2 | 13101-Z1T-930 | PISTON (STD) Price: $52.52 |
| 3 | 13111-Z1T-000 | PIN, PISTON Price: $11.48 |
| 3 | 13111-ZDK-003 | PIN, PISTON Price: $9.52 |
| 4 | 13200-Z1T-930 | ROD ASSY., CONNECTING Price: $82.20 |
| 5 | 13310-Z1T-A20 | CRANKSHAFT Price: $219.19 |
| 6 | 90001-Z4M-000 | BOLT, CONNECTING ROD (6X34.5) Price: $4.70 |
| 7 | 90551-ZE1-000 | CLIP, PISTON PIN (18MM) (Honda Code 2539120). Price: $1.40 |
