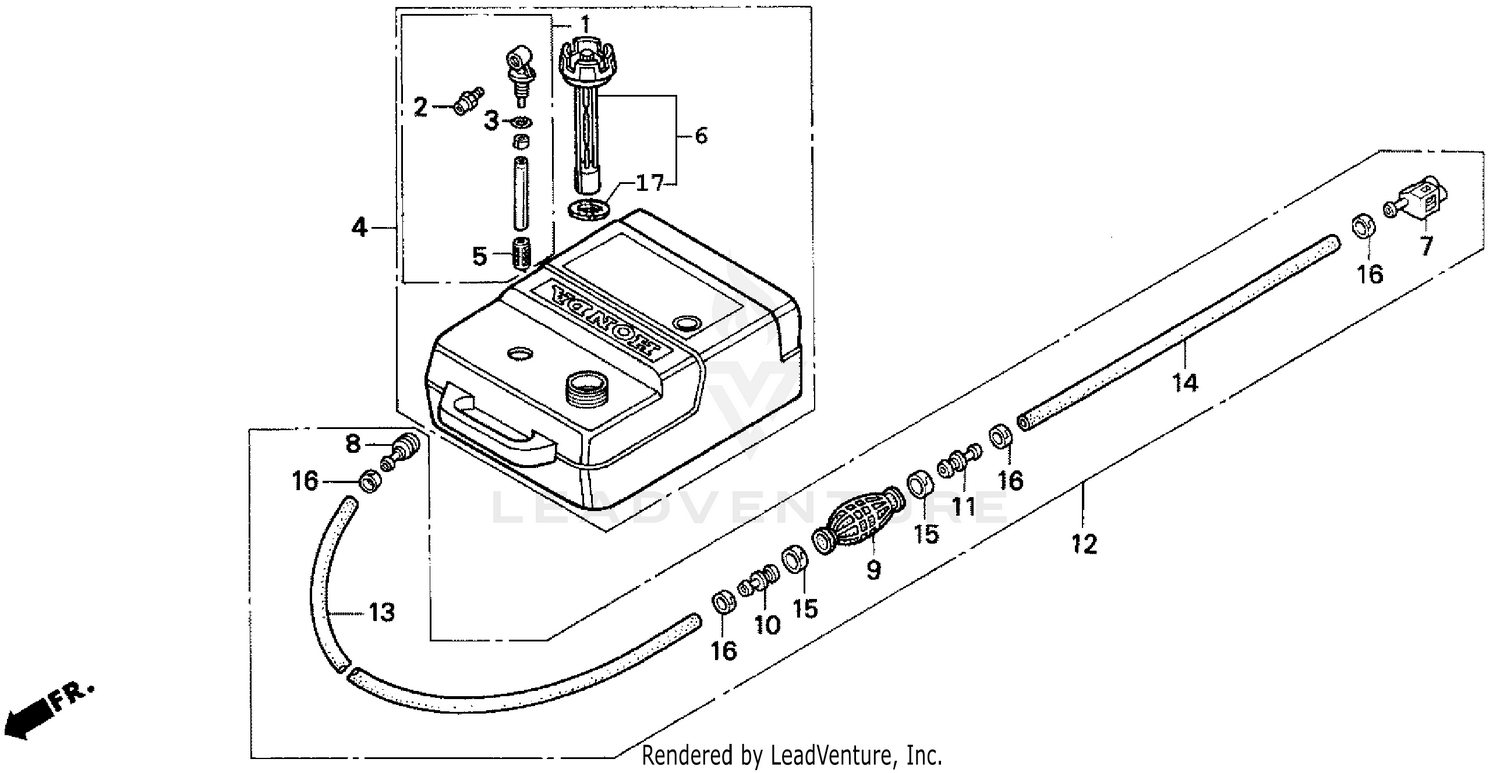

| Ref | Part Number | Description |
|---|
| 1 |
16900-ZV5-902 |
SEE PART DETAILS - PRI; JOINT ASSY., FUEL Use from Frame SN 1303828. This part replaces 16900-ZV5-901. Price: $37.02 |
| 2 |
16977-ZV5-A00 |
FITTING, QUICK DISCONNECT Price: $20.00 |
| 3 |
16979-ZV5-901 |
SEE PART DETAILS - PRI; O-RING Use from Frame SN 1303828. This part replaces 16979-ZV5-900. Price: $0.82 |
| 3 |
35350HP0A00 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 4 |
17500-ZV5-903 |
SEE PART DETAILS - SUP; TANK ASSY., FUEL Price: Call Us |
| 4 |
35351HP0A00 |
STAY, STOP SWITCH Price: Call Us |
| 5 |
17583-ZV5-901 |
SEE PART DETAILS - PRI; FILTER, FUEL This part replaces 17583-ZV5-900. Price: $2.60 |
| 5 |
35357HP0A00 |
SPRING, STOP SWITCH Price: Call Us |
| 6 |
17620-ZV5-903 |
SEE PART DETAILS - PRI; CAP, FUEL FILLER This part replaces 17620-ZV5-900. Price: $35.94 |
| 6 |
35359HP0A00 |
GUARD, RR. STOP SWITCH Price: Call Us |
| 7 |
04104-ZW9-010 |
SEE PART DETAILS - PRI; CONNECTOR SET, FUEL This part replaces 04104-ZW9-000. Price: $71.86 |
| 7 |
43470HP0A00 |
CABLE COMP., FOOT BRAKE Price: Call Us |
| 8 |
17660-ZW9-003 |
SEE PART DETAILS - PRI; CONNECTOR, FUEL This part replaces 17660-ZV5-A00. Price: $44.08 |
| 8 |
46500HP0A00 |
PEDAL COMP., BRAKE Price: Call Us |
| 9 |
17661-921-010 |
SEE PART DETAILS - PRI; PRIMER BULB This part replaces 17661-921-000. Price: $17.80 |
| 9 |
46513HM7000 |
SPRING ASSY., RR. BRAKE PEDAL Price: Call Us |
| 10 |
17665-ZV5-000 |
VALVE, IN. Price: $16.62 |
| 10 |
46515HM7000 |
TUBE, BRAKE PEDAL SPRING Price: Call Us |
| 11 |
17680-ZV4-000 |
VALVE, OUTLET Price: $16.62 |
| 12 |
04101-ZW9-010 |
SEE PART DETAILS - PRI; CONNECTOR SET, FUEL TUBE This part replaces 04101-ZW9-000. Price: $130.64 |
| 13 |
17701-ZV5-000 |
TUBE, FUEL (7.5X2000) Price: $63.14 |
| 13 |
50611HP0A00 |
BRACKET, STEP Price: Call Us |
| 14 |
17702-ZV4-000 |
TUBE, FUEL SHORT Price: $13.36 |
| 14 |
90105MCE750 |
BOLT, FLANGE, 6X14 Price: Call Us |
| 15 |
17703-921-010 |
SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM) This part replaces 17703-921-000. Price: $4.84 |
| 15 |
90111HP0A00 |
BOLT, FLANGE, 6MM Price: Call Us |
| 16 |
17704-ZV4-010 |
SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM) Price: $2.98 |
| 17 |
90512303000 |
WASHER, 17.5MM Price: Call Us |
| 18 |
91206968003 |
DUST SEAL, 17X23X3 (NOK) Price: Call Us |
| 19 |
9405008000 |
NUT, FLANGE, 8MM Price: Call Us |
| 20 |
9420130250 |
PIN, SPLIT, 3.0X25 Price: Call Us |
| 21 |
958010804500 |
BOLT, FLANGE, 8X45 Price: Call Us |
