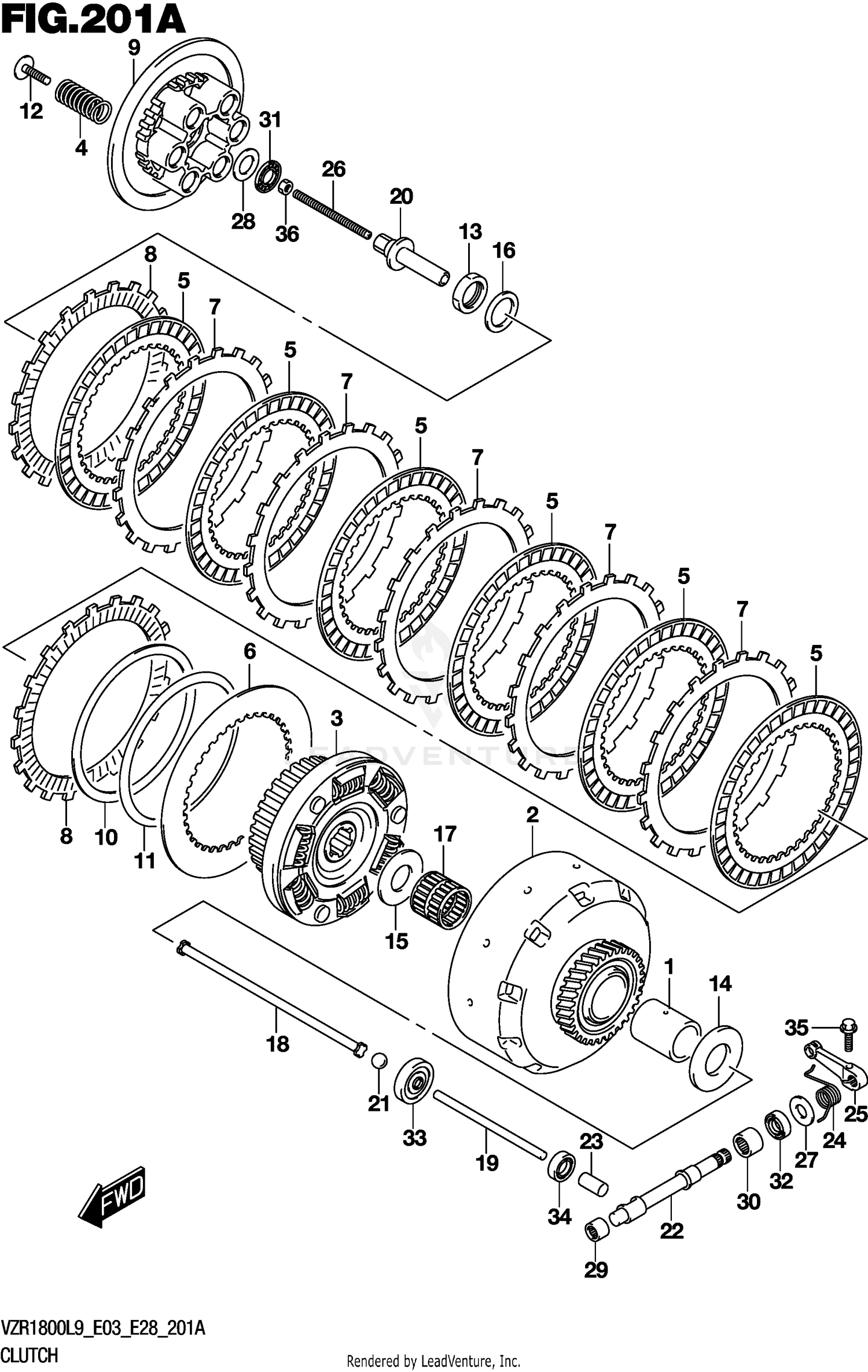

| Ref | Part Number | Description |
|---|
| 1 |
21151-48G00 |
SPACER,PRIMARY DRIVE GEAR Price: $49.42 |
| 2 |
21100-48G01 |
GEAR ASSY,PRIMARY DRIVE (NT:3 Price: $368.64 |
| 3 |
21410-48G10 |
HUB,CLUTCH Price: $466.80 |
| 4 |
21413-35F10 |
SPRING,CLUTCH Price: $8.78 |
| 5 |
21441-22H00 |
PLATE,CLUTCH DRIVE NO.1 (T:3. Price: $61.71 |
| 7 |
21451-22H00 |
PLATE,CLUTCH DRIVEN NO.1 (T:2 Price: $25.95 |
| 8 |
21451-48G10 |
PLATE,CLUTCH DRIVEN NO.2 (T:3 Price: $45.45 |
| 9 |
21462-48G00 |
DISC,CLUTCH PRESSURE Price: $79.58 |
| 10 |
21471-48G00 |
SEAT,WAVE WASHER (109X124X1.6 Price: $17.55 |
| 11 |
21472-48G10 |
WASHER,CLUTCH PLATE WAVE Price: $32.13 |
| 12 |
21482-41G00 |
BOLT,CLUTCH SPRING Price: $3.64 |
| 13 |
09159-24010 |
NUT Price: $16.09 |
| 14 |
09160-25056 |
WASHER (25X50X2.5) Price: $14.34 |
| 15 |
09160-25056 |
WASHER (25X50X2.5) Price: $14.34 |
| 16 |
09164-24008 |
WASHER (24.2X35X2.7) Price: $4.83 |
| 17 |
09263-32020 |
BEARING (32X37X38.3) Price: $49.15 |
| 18 |
23110-24F00 |
ROD,CLUTCH (L:195.5) Price: $28.24 |
| 19 |
23111-48G00 |
ROD,CLUTCH PUSH LH Price: $21.35 |
| 20 |
23121-41G00 |
PIECE,CLUTCH PUSH Price: $52.95 |
| 21 |
23122-02FR0 |
BALL,CLUTCH PUSH PIECE Price: $96.60 |
| 22 |
23122-48G00 |
CAMSHAFT,CLUTCH RELEASE Price: $63.81 |
| 23 |
23123-41G00 |
CAP,CLUTCH PUSH ROD Price: $13.51 |
| 24 |
23125-48G00 |
SPRING,CLUTCH RELEASE RETURN Price: $4.28 |
| 25 |
23271-48G00 |
ARM,CLUTCH RELEASE Price: $82.77 |
| 26 |
09134-06015 |
SCREW (6X73) Price: $8.39 |
| 27 |
09160-10020 |
WASHER (10.5X24X1.0) Price: $2.18 |
| 28 |
09160-15045 |
WASHER (15.5X28X1) Price: $4.75 |
| 29 |
09263-10014 |
BEARING (10X14X10) Price: $16.47 |
| 30 |
09263-12027 |
BEARING (12X18X12) Price: $8.90 |
| 31 |
09263-15003 |
BEARING (15X28X2) Price: $10.10 |
| 32 |
09282-10012 |
SEAL,OIL (10X20X6) Price: $9.72 |
| 33 |
09283-06010 |
OIL SEAL (6X34X10.5) Price: $20.46 |
| 34 |
09285-10004 |
SEAL,OIL (10X17X5) Price: $4.10 |
| 35 |
01547-0620A |
BOLT Price: $2.45 |
