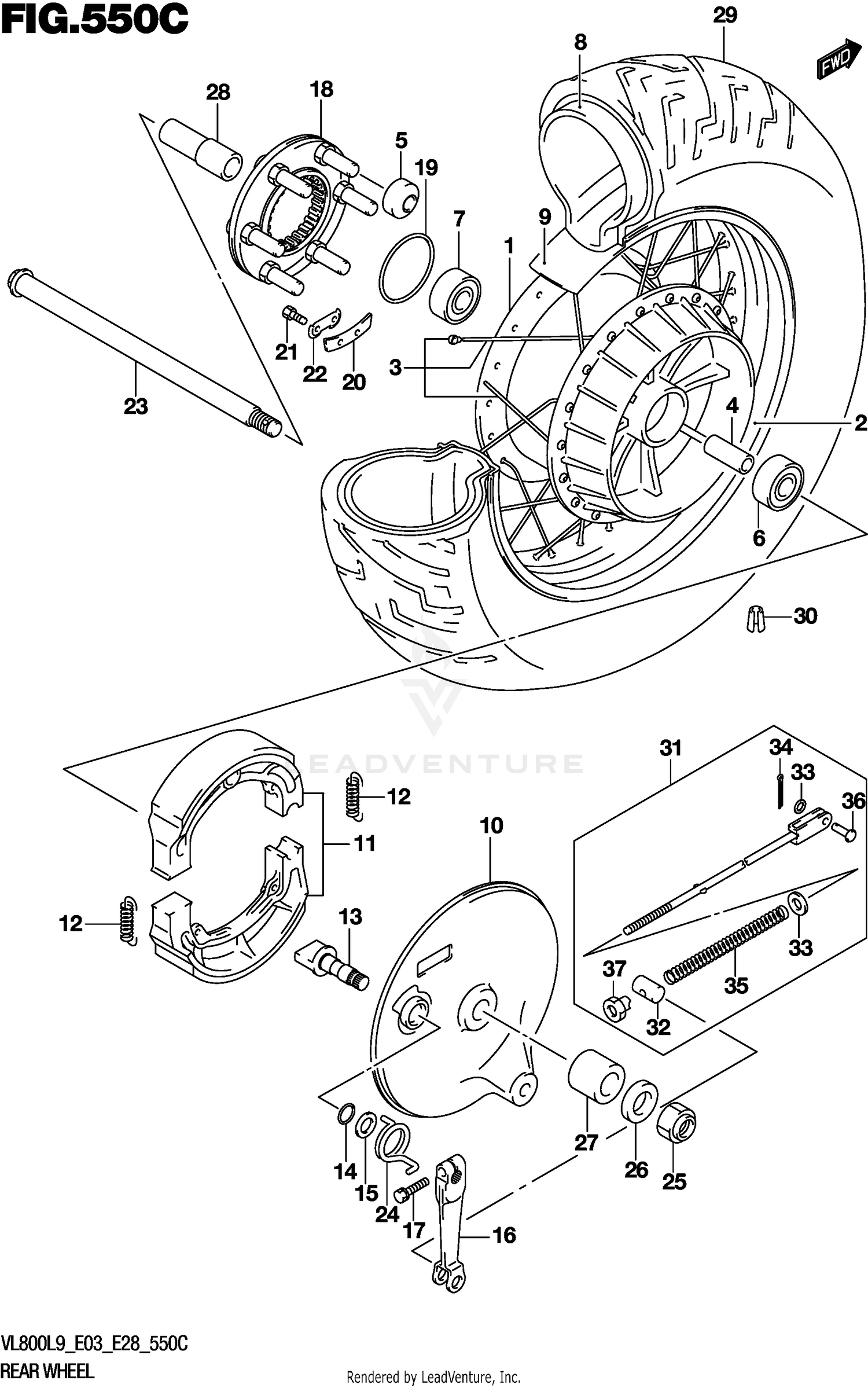

| Ref | Part Number | Description |
|---|
| 1 |
64110-41F20 |
HUB,REAR Price: $594.75 |
| 2 |
65311-41F00 |
RIM,REAR WHEEL (15M/CXMT4.00) Price: $386.18 |
| 3 |
65320-41F00 |
SPOKE SET,REAR WHEEL Price: $161.57 |
| 4 |
09180-17092 |
SPACER (17.5X25X113) Price: $26.61 |
| 5 |
09319-12019 |
BUSH (12X41X34) Price: $16.19 |
| 6 |
08123-6303B |
BEARING This part replaces 08123-63037. Price: $19.21 |
| 7 |
08143-63037 |
BEARING Price: $27.50 |
| 8 |
65200-41F01 |
TUBE ASSY,WHEEL INNER This part replaces 65200-41F00. Price: $61.25 |
| 9 |
65261-41F10 |
PROTECTOR, WHEEL INNER TUBE Price: $7.98 |
| 10 |
64210-38A70-20H |
PANEL,REAR BRAKE ANCHOR (SILV Price: $325.14 |
| 11 |
64400-38820 |
SHOE SET,BRAKE Price: $59.74 |
| 12 |
55420-30000 |
SPRING,BRAKE SHOE Price: $5.69 |
| 13 |
64441-38A20 |
CAM,REAR BRAKE Price: $33.22 |
| 14 |
09280-15003 |
O-RING (D:1.9,ID:14.5) Price: $2.15 |
| 15 |
09160-15048 |
WASHER (15.5X24X1.6) Price: $3.12 |
| 16 |
64451-38A40 |
LEVER, BRAKE CAM Price: $50.45 |
| 17 |
01570-06257 |
BOLT Price: $3.20 |
| 18 |
64680-45113 |
JOINT ASSY,REAR HUB DRIVEN Price: $294.69 |
| 19 |
09280-65003 |
O-RING (D:2.1,ID:65) Price: $3.91 |
| 20 |
64677-45110 |
WASHER, THRUST (T:1.6) Price: $3.65 |
| 21 |
09119-06049 |
BOLT (6X16) Price: $1.85 |
| 22 |
09169-06030 |
WASHER Price: $3.31 |
| 23 |
64711-19F00 |
AXLE,REAR (L:302) Price: $91.07 |
| 24 |
09448-33006 |
SPRING Price: $9.70 |
| 25 |
08319-2116A |
NUT Price: $9.45 |
| 26 |
09160-17050 |
WASHER (17X30X3.2) Price: $2.58 |
| 27 |
64741-41F00 |
SPACER,REAR AXLE,R Price: $24.58 |
| 28 |
64772-34201 |
SPACER,REAR AXLE,L Price: $24.92 |
| 31 |
43300-41F00 |
ROD ASSY,REAR BRAKE Price: $35.51 |
| 33 |
08322-0106B |
WASHER Price: $2.72 |
| 34 |
04111-2015A |
PIN Price: $1.48 |
