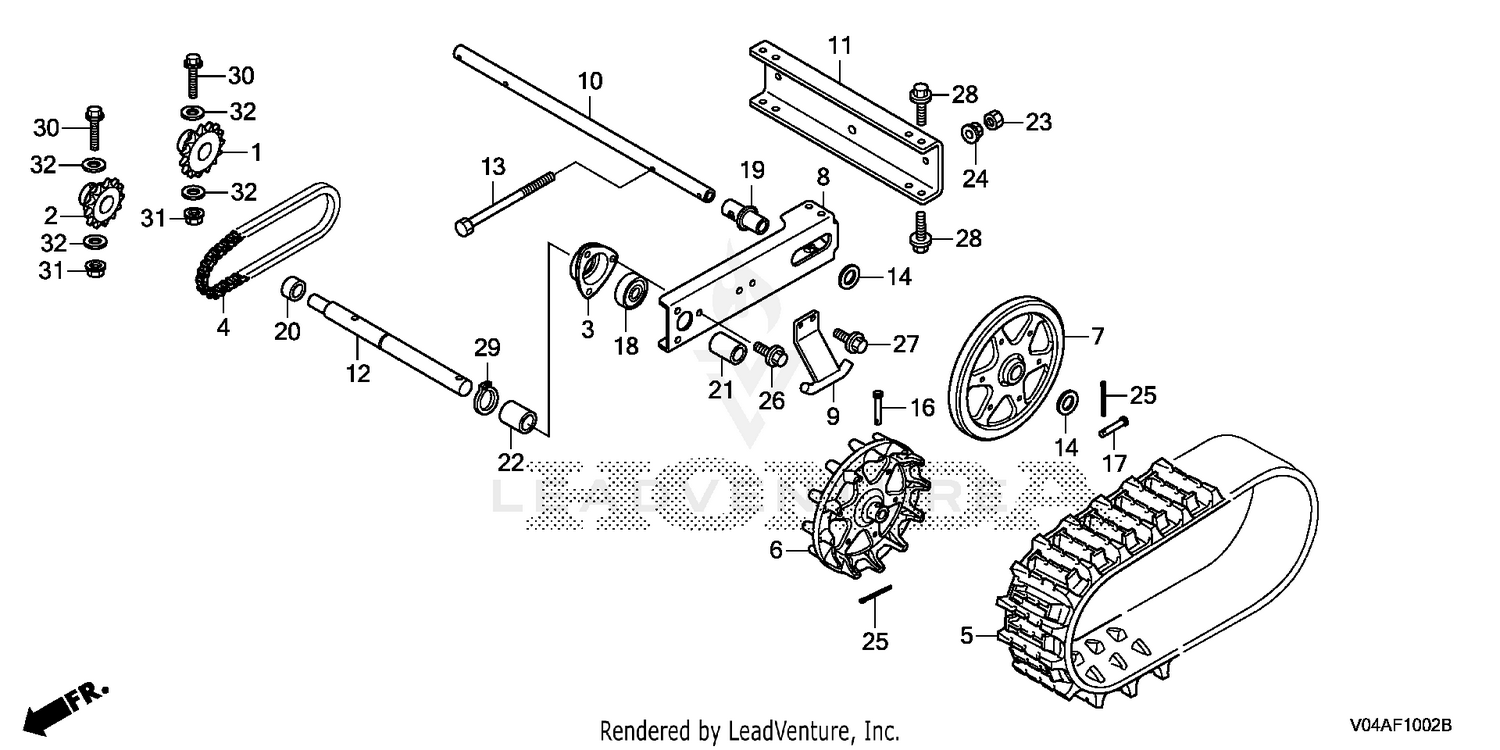

| Ref | Part Number | Description |
|---|
| 1 |
23121-V45-A00 |
SPROCKET, DRIVE (15T) Price: $11.74 |
| 2 |
23281-V45-A00 |
SPROCKET, DRIVEN (13T) Price: $10.44 |
| 3 |
23380-V45-A00 |
HOLDER, BEARING Price: $19.36 |
| 4 |
23851-V45-A01 |
CHAIN, DRIVE Price: $9.96 |
| 5 |
42755-V45-A01 |
CRAWLER (58.5X21) Price: $193.74 |
| 6 |
42756-V45-A00ZA |
SPROCKET, CRAWLER *NH314* (CONDUCT GRAY) Price: $54.66 |
| 7 |
42757-V45-A00ZA |
ROLLER, CRAWLER *NH314* (CONDUCT GRAY) Price: $19.00 |
| 8 |
42762-V45-A00 |
PLATE, CRAWLER Price: $33.46 |
| 9 |
42772-V45-A00 |
GUIDE, CRAWLER Price: $27.22 |
| 10 |
42773-V45-A00 |
PIPE, CRAWLER Price: $53.10 |
| 11 |
42783-V45-A00 |
BAR, CRAWLER PLATE Price: $45.36 |
| 12 |
44321-V45-A00 |
SHAFT, FR. AXLE Price: $16.36 |
| 13 |
90124-V45-A00 |
BOLT, HEX. (8X110) Price: $1.34 |
| 14 |
90509-V45-A10 |
WASHER, PLAIN (22.5MM) Price: $0.76 |
| 16 |
90755-V45-A00 |
PIN (6X34) Price: $1.16 |
| 17 |
90759-V45-A00 |
PIN, SPECIAL (6X29) Price: $1.12 |
| 18 |
91051-V45-A00 |
BEARING, RADIAL BALL (6203-19.05) Price: $6.16 |
| 19 |
91553-V45-A00 |
COLLAR, CRAWLER PIPE Price: $8.40 |
| 20 |
91559-V45-A00 |
COLLAR, CRAWLER SPROCKET Price: $1.86 |
| 21 |
91560-V45-A00 |
COLLAR B, CRAWLER SPROCKET Price: $2.28 |
| 22 |
91561-V45-A00 |
COLLAR C, CRAWLER SPROCKET Price: $2.50 |
| 23 |
94001-08000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338). Price: $1.64 |
| 24 |
94071-08080 |
NUT-WASHER (8MM) (Honda Code 0612713). Price: $1.84 |
| 25 |
94201-30180 |
PIN, COTTER (3.0X18) Price: $1.30 |
| 26 |
95701-08016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016. Price: $2.26 |
| 27 |
95701-08016-07 |
BOLT, FLANGE (8X16) Price: $2.20 |
| 28 |
95701-08020-07 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Price: $2.34 |
| 29 |
94514-19000 |
CIRCLIP (OUTER) (19) Price: $0.50 |
| 30 |
90102-V45-A01 |
BOLT, FLANGE (6X50) Price: $0.58 |
| 31 |
90343-ZE6-000 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) Price: $2.24 |
