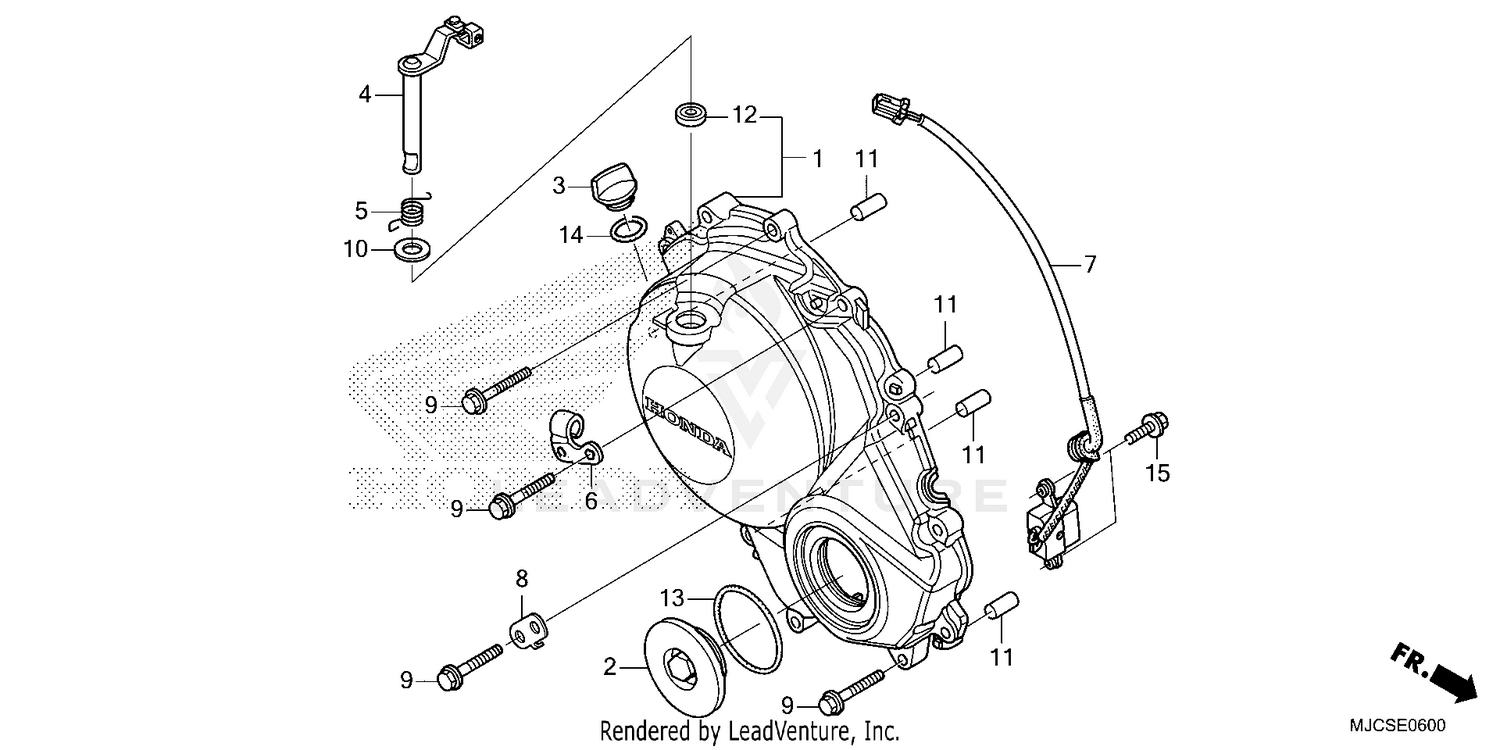

RIGHT CRANKCASE COVER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11330-MFJ-A41 | COVER, R. Price: $285.07 |
| 2 | 11332-MER-D00 | CAP (45MM) Price: $21.07 |
| 3 | 15611-KA4-710 | CAP, OIL FILLER Price: $17.45 |
| 4 | 22810-MFG-D00 | LEVER, CLUTCH Price: $53.53 |
| 5 | 22815-MFJ-D00 | SPRING, CLUTCH LEVER Price: $5.33 |
| 6 | 22821-MFJ-D00 | RECEIVER, CLUTCH CABLE Price: $11.51 |
| 7 | 30300-MFJ-D01 | GENERATOR, PULSE Price: $68.85 |
| 8 | 32157-MFJ-D00 | STAY, HARNESS CLIP Price: $4.16 |
| 9 | 90006-GHB-680 | BOLT, FLANGE (6X28) (NSHF) Price: $2.33 |
| 10 | 90525-MBZ-610 | WASHER Price: $2.73 |
| 11 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 12 | 91204-KK0-003 | OIL SEAL (12X18X5) (ARAI) Price: $6.35 |
| 13 | 91301-ML7-003 | O-RING (48.1X3.6) (ARAI) Price: $4.93 |
| 14 | 91307-KF0-003 | O-RING (18X3) (ARAI) Price: $3.35 |
