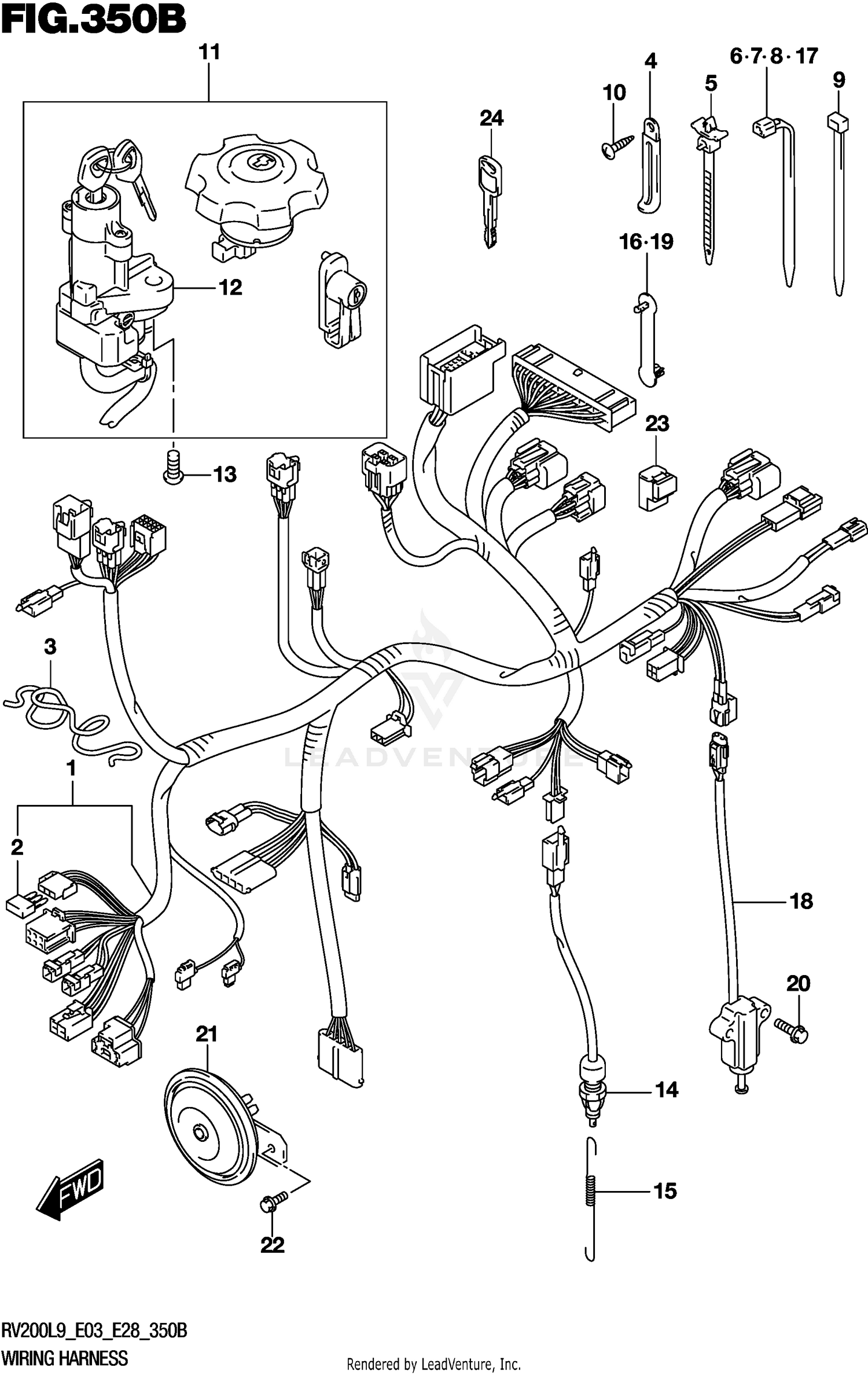

WIRING HARNESS (RV200L9 E28)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-13G70 | HARNESS, WIRING Price: $488.52 |
| 3 | 36619-13G10 | GUIDE, WIRING HARNESS Price: $10.66 |
| 4 | 09404-06036 | CLAMP(L:80) This part replaces 09404-06433. Price: $2.12 |
| 5 | 09407-11402 | CLAMP (L:90) Price: $2.20 |
| 6 | 09407-11401 | CLAMP (L:95) Price: $2.77 |
| 7 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 8 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 9 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 10 | 03541-0410B | SCREW, CLAMP Price: $1.98 |
| 11 | 37106-33881 | LOCK SET This part replaces 37106-33880. Price: $369.68 |
| 12 | 37100-33EB1 | LOCK ASSY,STEER This part replaces 37100-33EB0. Price: $222.59 |
| 13 | 09139-08016 | BOLT (8X20) Price: $4.10 |
| 14 | 37740-45D00 | SWITCH ASSY,STOP LAMP Price: $19.73 |
| 15 | 09443-06011 | SPRING Price: $3.58 |
| 16 | 09407-03401 | CLAMP (L:33) Price: $3.79 |
| 17 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 18 | 37840-35F02 | SWITCH ASSY,SIDE STAND This part replaces 37840-35F00. Price: $61.19 |
| 19 | 09407-03401 | CLAMP (L:33) Price: $3.79 |
| 20 | 01550-0616B | BOLT Price: $2.87 |
| 21 | 38500-13G00 | HORN ASSY Price: $69.66 |
| 22 | 01550-0610A | BOLT Price: $2.37 |
| 23 | 38740-26E01 | RELAY ASSY,FUEL PUMP This part replaces 38740-26E00. Price: $49.02 |
