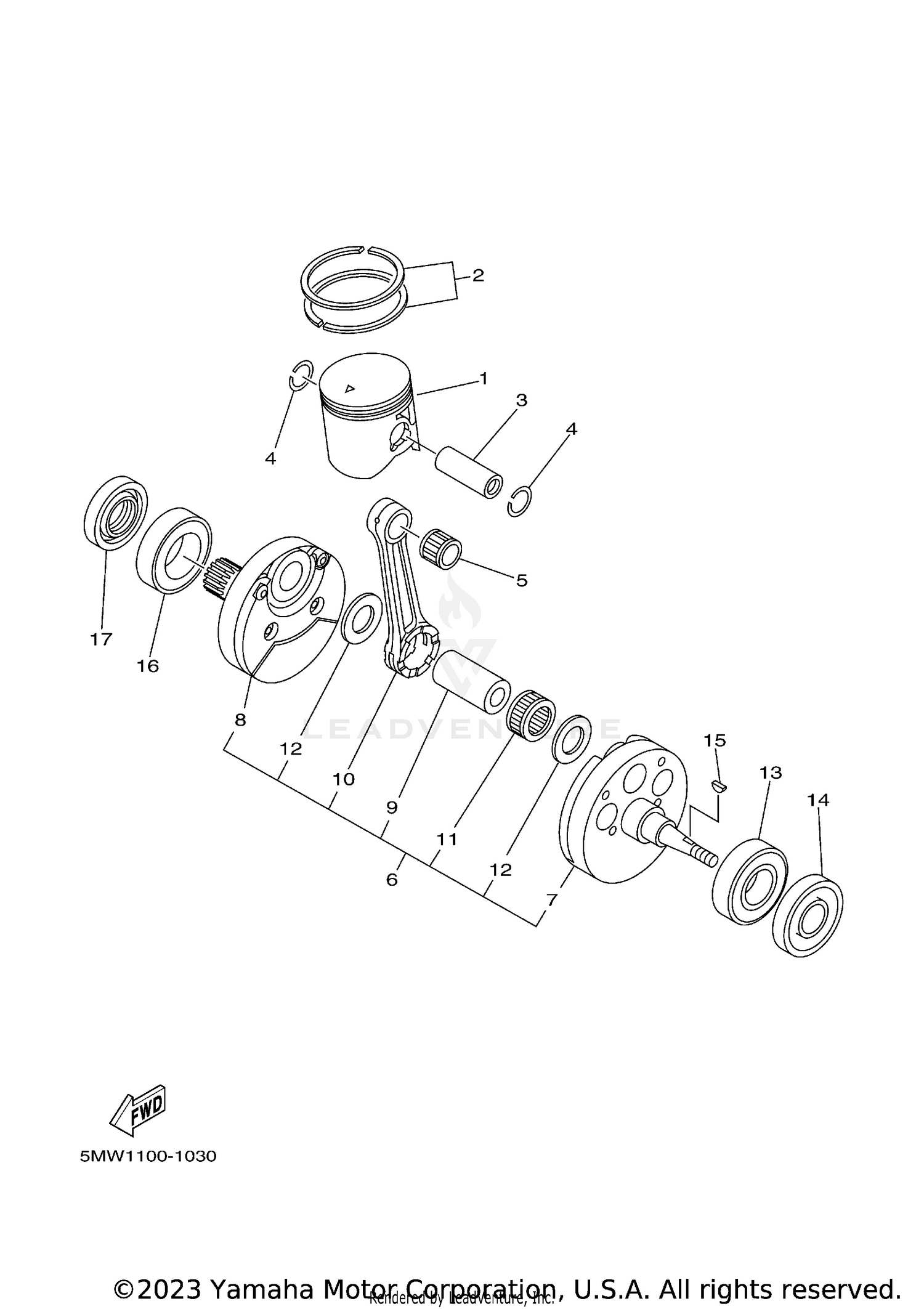

CRANKSHAFT & PISTON
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5CU-11603-11-00 | PISTON RING SET (STD) Price: $54.99 |
| 3 | 5UP-11633-00-00 | PIN, PISTON Price: $38.99 |
| 4 | 93450-19052-00 | CIRCLIP, INNER Price: $7.49 |
| 5 | 93310-218A6-00 | BEARING Price: $42.99 |
| 6 | 5UP-11400-10-00 | CRANKSHAFT ASSY Price: $713.99 |
| 7 | 5UP-11410-10-00 | CRANKSHAFT Price: $287.99 |
| 8 | 5MW-11420-10-00 | CRANKSHAFT Price: $319.99 |
| 9 | 5CU-11681-00-00 | PIN, CRANK 1 Price: $72.99 |
| 10 | 5MW-11651-00-00 | ROD, CONNECTING Price: $184.99 |
| 11 | 93310-52406-00 | BEARING Price: $115.99 |
| 12 | 90209-24327-00 | WASHER Price: $48.99 |
| 13 | 93306-37808-00 | BEARING Price: $82.99 |
| 14 | 93102-20485-00 | OIL SEAL Price: $23.99 |
| 15 | 90280-03017-00 | KEY, WOODRUFF This part replaces 90280-03045-00. Price: $8.49 |
| 16 | 93306-37808-00 | BEARING Price: $82.99 |
