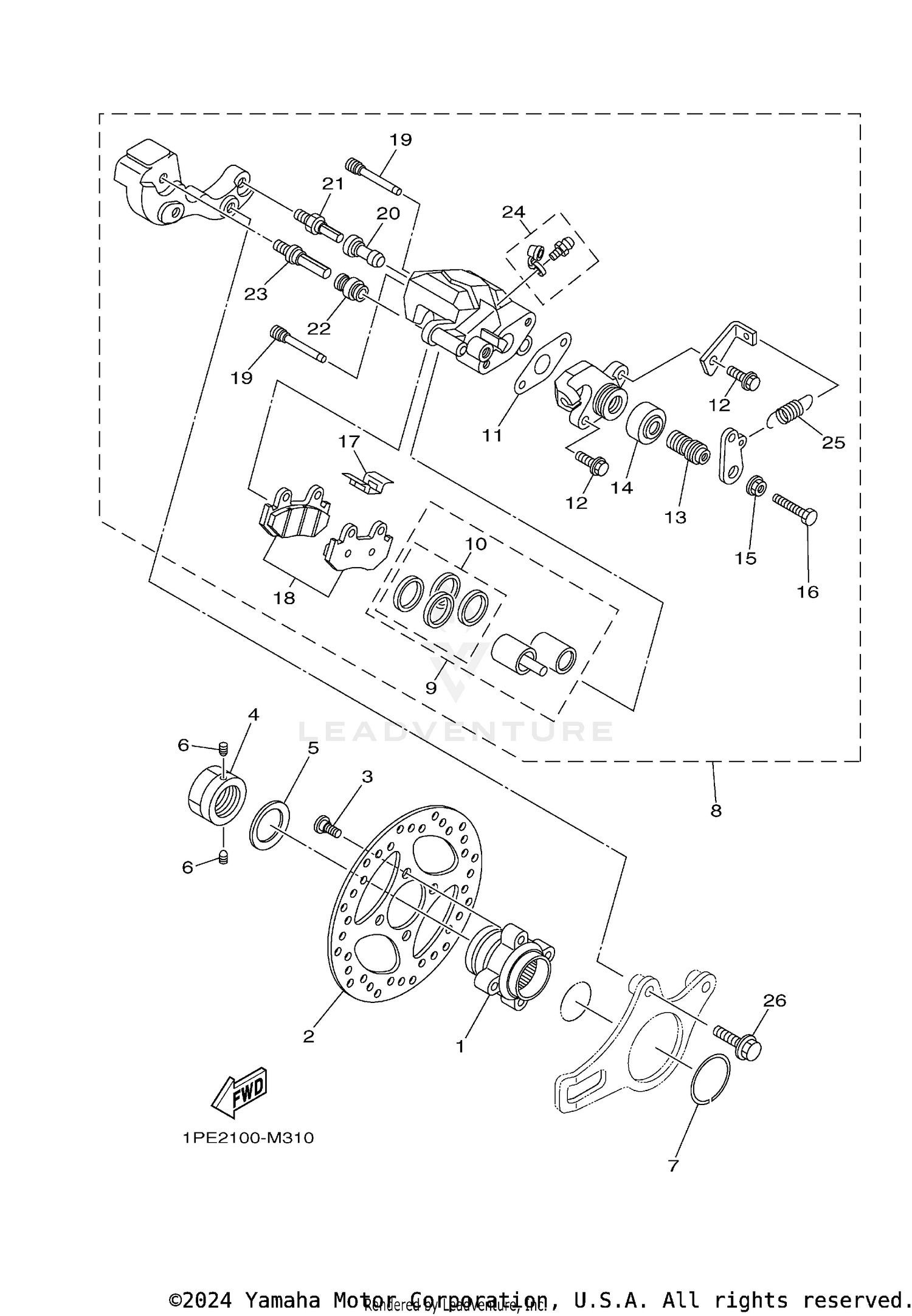

| Ref | Part Number | Description |
|---|
| 1 |
1PE-F5712-00-00 |
BRACKET, DISC Price: $129.99 |
| 2 |
1PE-F582W-00-00 |
DISK, REAR BRAKE 2 Price: $73.99 |
| 3 |
90109-08077-00 |
BOLT This part replaces 90109-08076-00. Price: $3.75 |
| 4 |
90179-36003-00 |
NUT Price: $53.99 |
| 5 |
90208-37001-00 |
WASHER, CONICAL SPRING Price: $13.49 |
| 6 |
90113-06039-00 |
BOLT, SET This part replaces 90113-06055-00. Price: $10.49 |
| 7 |
1S3-25415-00-00 |
CIRCLIP Price: $7.49 |
| 8 |
5TG-2580W-21-00 |
CALIPER ASSY, REAR 2 Price: $493.99 |
| 9 |
5TG-W0057-10-00 |
PISTON ASSY, CALIPER Price: $120.99 |
| 10 |
5TG-W0047-00-00 |
CALIPER SEAL KIT Price: $32.99 |
| 11 |
5TG-25975-00-00 |
RUBBER, BUSHING Price: $12.99 |
| 12 |
5UG-25833-00-00 |
BOLT, FITTING Price: $7.49 |
| 13 |
5TG-25978-00-00 |
SHAFT L Price: $66.99 |
| 14 |
1UY-25974-51-00 |
BOOT Price: $8.49 |
| 15 |
1UY-25973-51-00 |
NUT Price: $7.49 |
| 16 |
5TG-25972-00-00 |
ADJUST BOLT Price: $8.49 |
| 17 |
3LD-25934-01-00 |
SPRING, PAD Price: $33.99 |
| 18 |
5TG-W0046-10-00 |
BRAKE PAD KIT 2 Price: $50.99 |
| 19 |
5DH-25933-00-00 |
PIN, PAD Price: $24.99 |
| 20 |
1UY-25937-51-00 |
BOOT 2 Price: $15.49 |
| 21 |
3SP-25914-51-00 |
PIN, SLIDE Price: $4.95 |
| 22 |
3JD-25917-00-00 |
BOOT, CALIPER Price: $9.49 |
| 23 |
3SP-25926-51-00 |
BOLT Price: $14.49 |
| 24 |
36Y-W0048-00-00 |
BLEED SCREW KIT This part replaces 1UY-W0048-50-00. Price: $10.99 |
| 25 |
5TG-25977-50-00 |
SPRING, RETURN Price: $8.49 |
