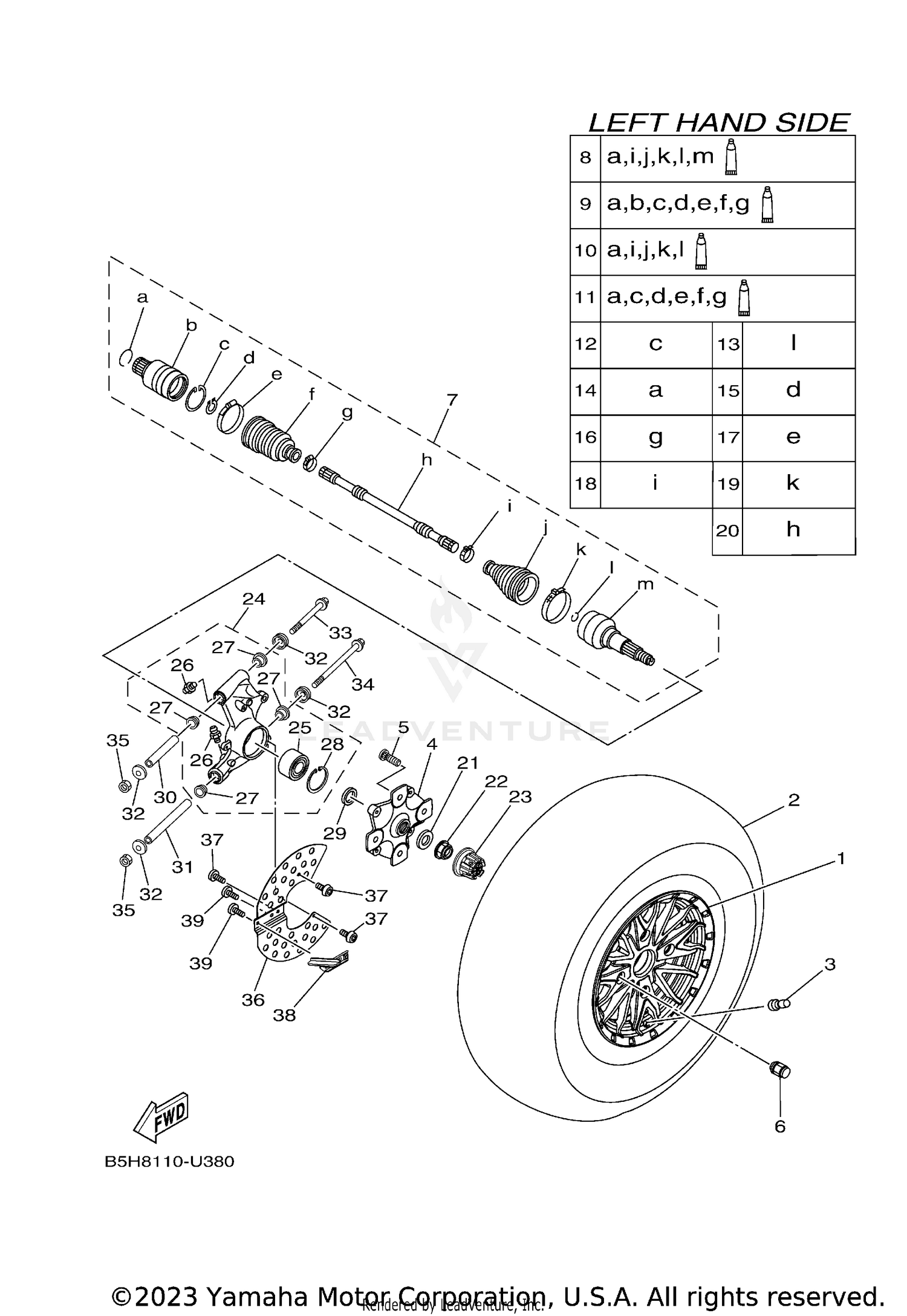

| Ref | Part Number | Description |
|---|
| 1 |
B5H-F533P-01-00 |
WHEEL, CAST 2 Price: $269.99 |
| 2 |
94111-14813-00 |
TIRE This part replaces 94111-14808-00. Price: $407.99 |
| 4 |
B5H-F5111-02-00 |
HUB, FRONT This part replaces B5H-F5111-00-00. Price: $142.99 |
| 5 |
90114-12005-00 |
BOLT, SERRATION Price: $3.20 |
| 6 |
90176-12800-00 |
NUT, CROWN Price: $3.95 |
| 7 |
2HC-2531H-13-00 |
REAR DRIVE SHAFT ASSY This part replaces 2HC-2531H-12-00. Price: $289.99 |
| 8 |
2HC-2530T-12-00 |
BALL JOINT SET Price: $499.99 |
| 10 |
2HC-2530X-12-00 |
BOOT SET (BALL JOINT Price: $59.99 |
| 12 |
2HC-2536E-00-00 |
CLIP, SPRING Price: $5.49 |
| 13 |
16B-25185-00-00 |
RING 1 Price: $5.49 |
| 14 |
16B-2536E-00-00 |
CLIP, SPRING Price: $5.49 |
| 15 |
2HC-2512J-00-00 |
SNAP RING Price: $4.95 |
| 16 |
2HC-25719-00-00 |
BAND Price: $7.49 |
| 17 |
2HC-26293-00-00 |
BAND Price: $10.99 |
| 18 |
2HC-26397-12-00 |
BAND Price: $5.99 |
| 19 |
2HC-2512G-10-00 |
BOOT BAND (SMALL) Price: $8.49 |
| 20 |
2HC-259A2-00-00 |
SHAFT Price: $117.99 |
| 21 |
90201-25023-00 |
WASHER, PLATE Price: $11.49 |
| 22 |
90179-24006-00 |
NUT Price: $15.49 |
| 23 |
2HC-F512A-00-00 |
CAP, WHEEL Price: $3.25 |
| 24 |
B5H-F530F-00-00 |
REAR KNUCKLE ASSY Price: $222.99 |
| 25 |
93305-00603-00 |
BEARING Price: $139.99 |
| 26 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 27 |
90381-17067-00 |
BUSH, SOLID Price: $12.49 |
| 28 |
93420-72065-00 |
CIRCLIP (70R) This part replaces 99009-72500-00. Price: $8.99 |
| 29 |
90201-30666-00 |
WASHER, PLATE Price: $11.49 |
| 30 |
90387-12060-00 |
COLLAR Price: $31.99 |
| 31 |
90387-12061-00 |
COLLAR Price: $39.99 |
| 32 |
1XD-23517-01-00 |
COVER, THRUST 1 This part replaces 1XD-23517-00-00. Price: $10.99 |
| 33 |
90105-12066-00 |
BOLT, FLANGE Price: $13.49 |
| 34 |
90105-12097-00 |
BOLT, FLANGE Price: $19.49 |
| 35 |
90185-12007-00 |
NUT, SELF-LOCKING Price: $11.49 |
| 36 |
2HC-F534C-00-00 |
RING, WHEEL RR. 1 Price: $11.49 |
| 37 |
90111-06096-00 |
BOLT,HEX. SOCKET BUTTON Price: $9.49 |
| 38 |
2HC-F2341-00-00 |
PLATE, GUIDE 1 Price: $10.49 |
