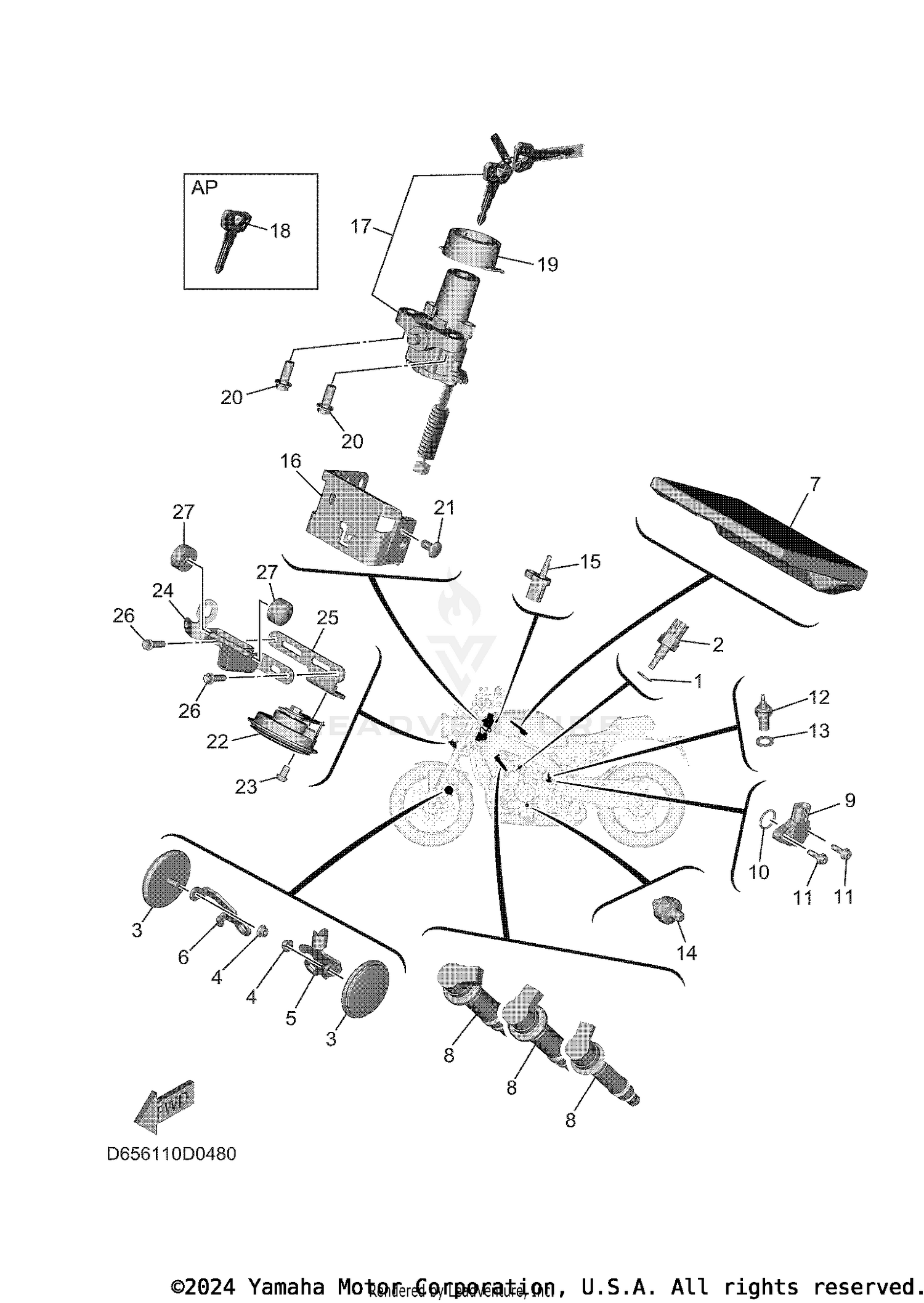

| Ref | Part Number | Description |
|---|
| 1 |
90430-10004-00 |
GASKET Price: $7.49 |
| 2 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 3 |
59C-85131-00-00 |
REFLECTOR, REAR 1 Price: $12.49 |
| 4 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 5 |
BME-85112-00-00 |
BRACKET, REFLECTOR 1 Price: $17.99 |
| 6 |
BME-85122-00-00 |
BRACKET, REFLECTOR 2 Price: $9.49 |
| 8 |
BME-82310-00-00 |
IGNITION COIL ASSY Price: $98.99 |
| 9 |
2CR-85899-10-00 |
SENSOR, GEAR POSITION Price: $123.99 |
| 10 |
93210-17008-00 |
O-RING Price: $2.65 |
| 11 |
90110-05038-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 12 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 13 |
90430-10148-00 |
GASKET Price: $5.99 |
| 14 |
1WS-82504-01-00 |
OIL PRESSURE SWITCH ASSY Price: $76.99 |
| 15 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 16 |
B7N-82599-01-00 |
COVER, CONNECTOR Price: $3.90 |
| 17 |
BME-82501-10-00 |
MAIN SWITCH STEERING LOCK Price: $160.99 |
| 19 |
3P6-82568-00-00 |
COVER, MAIN SWITCH Price: $44.99 |
| 20 |
90105-081A1-00 |
BOLT, FLANGE Price: $10.49 |
| 21 |
90269-07015-00 |
RIVET Price: $2.60 |
| 22 |
BEA-83371-00-00 |
HORN Price: $54.99 |
| 23 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 24 |
B7N-8431R-00-00 |
STAY, SETTING Price: $47.99 |
| 25 |
BEA-23377-00-00 |
BRACKET, HORN Price: $16.49 |
| 26 |
95E32-06020-00 |
BOLT, FLANGE DEEP RE This part replaces 90105-06225-00. Price: $0.95 |
