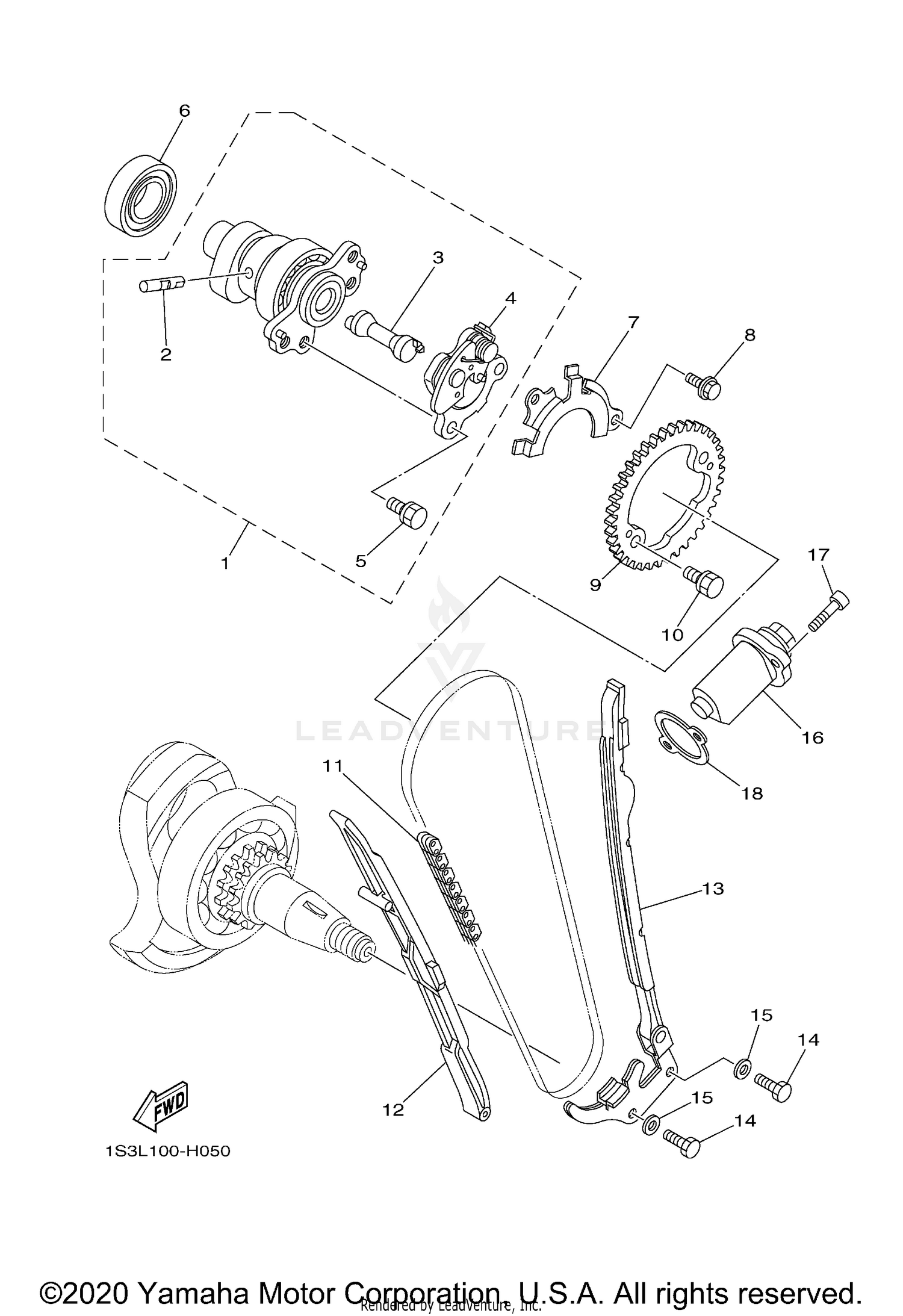

| Ref | Part Number | Description |
|---|
| 1 |
2LS-12170-00-00 |
CAMSHAFT ASSY 1 Price: $473.99 |
| 2 |
5VK-12284-00-00 |
PIN, DECOMPRESSION LEVER Price: $24.99 |
| 3 |
1S3-12290-00-00 |
LEVER, DECOMPRESSION SPRING Price: $66.99 |
| 4 |
1S3-12280-01-00 |
DECOMPRESSION ASSY Price: $115.99 |
| 5 |
90105-07006-00 |
BOLT, FLANGE Price: $9.49 |
| 6 |
93306-07209-00 |
BEARING Price: $48.99 |
| 7 |
5VK-1111F-00-00 |
PLATE Price: $16.49 |
| 8 |
95022-06012-00 |
BOLT, FLANGE This part replaces 90105-06078-00. Price: $3.55 |
| 9 |
1S3-12176-00-00 |
SPROCKET, CAM CHAIN Price: $80.99 |
| 10 |
90105-07006-00 |
BOLT, FLANGE Price: $9.49 |
| 11 |
94591-57126-00 |
CHAIN (98XRH2010-126M) Price: $42.99 |
| 12 |
5VK-12231-00-00 |
GUIDE, STOPPER 1 Price: $47.99 |
| 13 |
1S3-12241-01-00 |
GUIDE, STOPPER 2 This part replaces 1S3-12241-00-00. Price: $49.99 |
| 14 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 97022-06016-00. Price: $2.76 |
| 15 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 16 |
3TB-12210-00-00 |
TENSIONER ASSY, CAM CHAIN Price: $153.99 |
| 17 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
