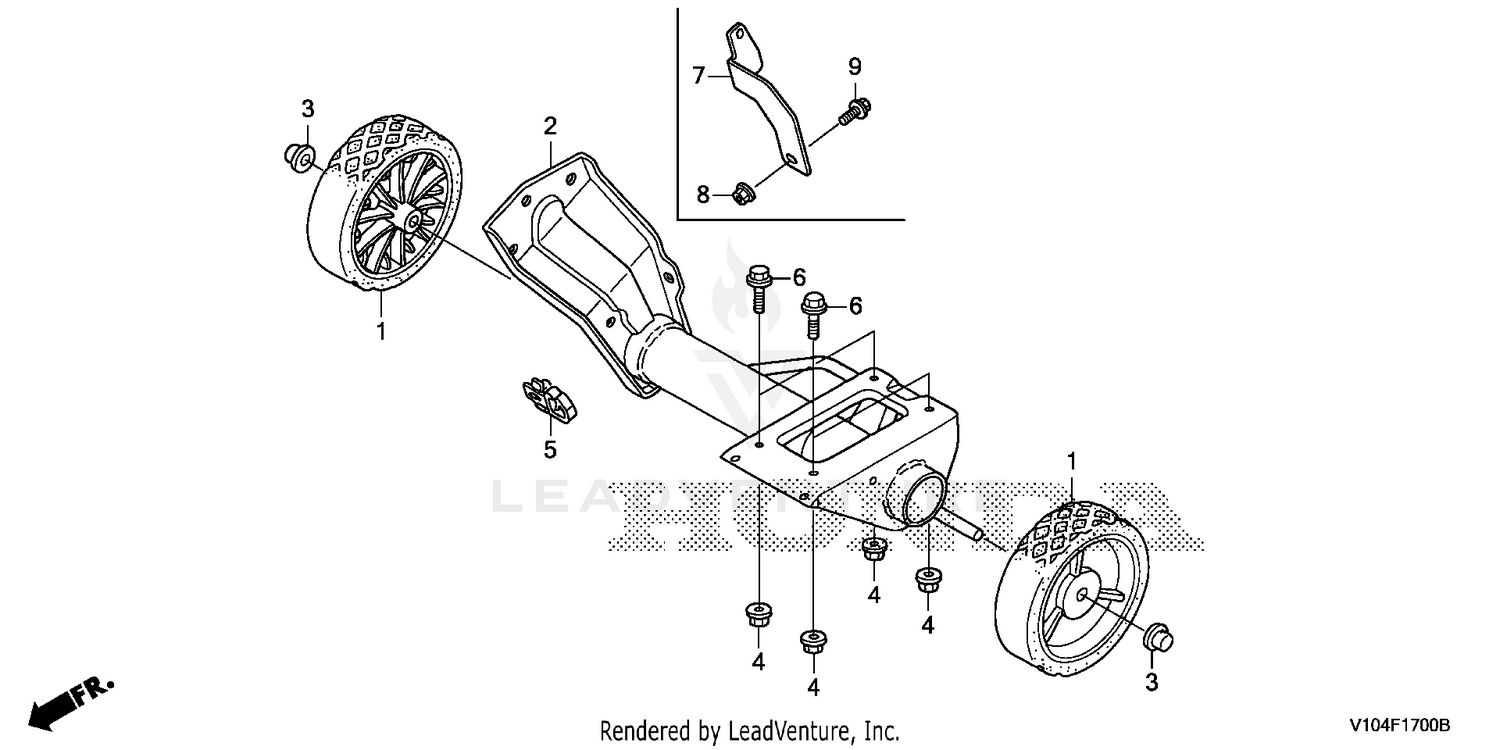

ENGINE BED@WHEEL
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 42700-V10-S11ZA | WHEEL ASSY. *R280* (POWER RED) Price: $6.51 |
| 2 | 51110-V10-R10 | BED COMP,ENG Price: $643.50 |
| 3 | 90301-V10-000 | NUT, PUSH (12.7MM) Price: $1.30 |
| 4 | 90351-SB2-003 | NUT, FLANGE (8MM) Price: $4.52 |
| 6 | 95701-08035-00 | SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029). Price: $2.88 |
| 7 | 51171-V10-R10 | STAY, ENGINE BED Price: $20.30 |
| 8 | 94050-06000 | SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
