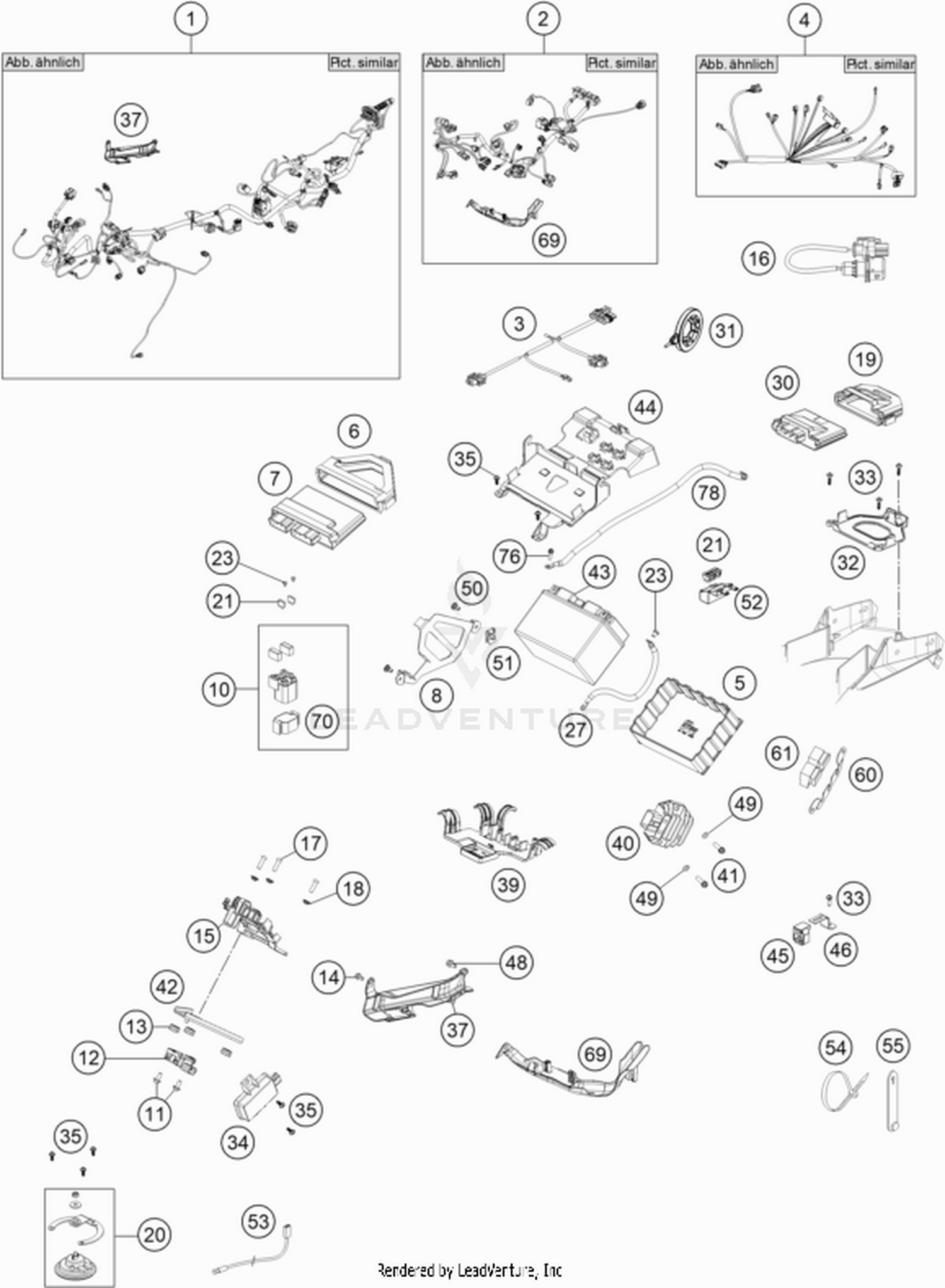

11 WIRING HARNESS
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 60711175033 | Main wiring harness R cpl. Price: Call Us |
| 2 | 60711085100 | Engine harness Price: Call Us |
| 3 | 60311079000 | WIRING HARNESS HEAD LIGHT Price: Call Us |
| 4 | 60311076000 | REAR WIRING HARNESS Price: Call Us |
| 5 | 60311053050 | Battery Housing Price: Call Us |
| 6 | 60341031050 | ECU RUBBER BRACKET Price: Call Us |
| 7 | 61341031300 | Control unit EFI Price: Call Us |
| 8 | 60311057050 | BRACKET ELECTRIC Price: Call Us |
| 9 | 60416031100 | Electgronic control unit, SAFE This part replaces 60416031000. Price: Call Us |
| 10 | 58211058000 | Starter reley 12V 99 Price: Call Us |
| 11 | 0024060136 | HH collar screw M6x13 TX30 Price: Call Us |
| 13 | 62142041000 | DAMP. COMPONENT ABS MODUL Price: Call Us |
| 15 | 60711048000 | Connector support front Price: Call Us |
| 16 | 60411078050 | Wiring harness Price: Call Us |
| 17 | 0738060201 | FLAT HEAD SCREW ISO7380 M6X20 Price: Call Us |
| 18 | 76508043050 | COLLAR BUSHING Price: Call Us |
| 19 | 60711033050 | Rubber band Price: Call Us |
| 20 | 60711060033 | Direct current horn complete Price: Call Us |
| 21 | 58011109110 | Plug-in fuse, big 10A Price: Call Us |
| 21 | 58011109115 | FUSE 15 A Price: Call Us |
| 21 | 58011109125 | FUSE 25 A Price: Call Us |
| 21 | 58011109130 | Plug-in fuse, big 30A Price: Call Us |
| 21 | 58011109140 | FUSE 40 A Price: Call Us |
| 22 | 60316029000 | RUBBER EDS-CONTROL UNIT Price: Call Us |
| 23 | 0902060083 | Oval head screw ISO 7380 M 6X8 Price: Call Us |
| 27 | 60311059050 | BATTERIE CABLE Price: Call Us |
| 30 | 60711033000 | Control unit MCU 3.0 Price: Call Us |
| 31 | 69011168000 | Antenna keyless Price: Call Us |
| 32 | 60708019010 | Support Price: Call Us |
| 33 | 0081050181 | SCREW FOR PLASTIC K50X18 T20 Price: Call Us |
| 34 | 60312032000 | RECEIVER AIR PRESSURE SENSOR Price: Call Us |
| 35 | 0081050121 | EJOT PT screw K50x12 Price: Call Us |
| 37 | 60311047000 | CABLE CHANNEL R/S Price: Call Us |
| 39 | 60311049300 | Plug board rear This part replaces 60311049200. Price: Call Us |
| 40 | 60311034100 | Regulator rectifier This part replaces 60311034000. Price: Call Us |
| 41 | 0025060206 | HH collar screw M6x20 TX30 Price: Call Us |
| 42 | 60342090040 | BRACKET SLOPING POSITIONS SENS Price: Call Us |
| 43 | 60011053000 | BATTERY 12V/11AH 03 Price: Call Us |
| 44 | 60308017000 | BATTERIE COVER Price: Call Us |
| 45 | 61041085050 | RUBBER SUPP. PRESSURE SENS. 05 Price: Call Us |
| 46 | 60311040100 | BRACKET PRESSURE SENSOR Price: Call Us |
| 48 | 0023060123 | COLLAR SCREW M6X12 TX Price: Call Us |
| 49 | 60007020040 | PLASTIC WASHER 03 Price: Call Us |
| 50 | 0025050126 | HH collar screw M5x12 TX30 Price: Call Us |
| 51 | 54603048200 | RANGE CHANGE METAL NUT M5 Price: Call Us |
| 52 | 58411087050 | RUBBERCOVER F.LOCKHOLDER Price: Call Us |
| 53 | 61111018100 | Temperatur sensor Price: Call Us |
| 54 | 44011076140 | CABLE TIE 140/2,5MM BLACK Price: Call Us |
| 54 | 44011076200 | CABLE TIE 200/3,6MM BLACK Price: Call Us |
| 54 | 44011076305 | CABLE TIE 300/4,8MM BLACK Price: Call Us |
| 55 | 60011093045 | RUBBER CABLE TIE 45MM 03 Price: Call Us |
| 55 | 60011093060 | RUBBER CABLE TIE 60MM 03 Price: Call Us |
| 55 | 60011093075 | RUBBER CABLE TIE 75MM 03 Price: Call Us |
| 60 | 60711057050 | Retaining bracket Price: Call Us |
| 61 | 61111057000 | RELAY CM1A-R-12V-H80 07 Price: Call Us |
| 69 | 60311046000 | CABLE CHANNEL L/S Price: Call Us |
| 70 | 58211058050 | BRACKET RUBBER F.STARTRELAY 07 Price: Call Us |
| 76 | 0025050166 | HH collar screw M5x16 TX30 Price: Call Us |
