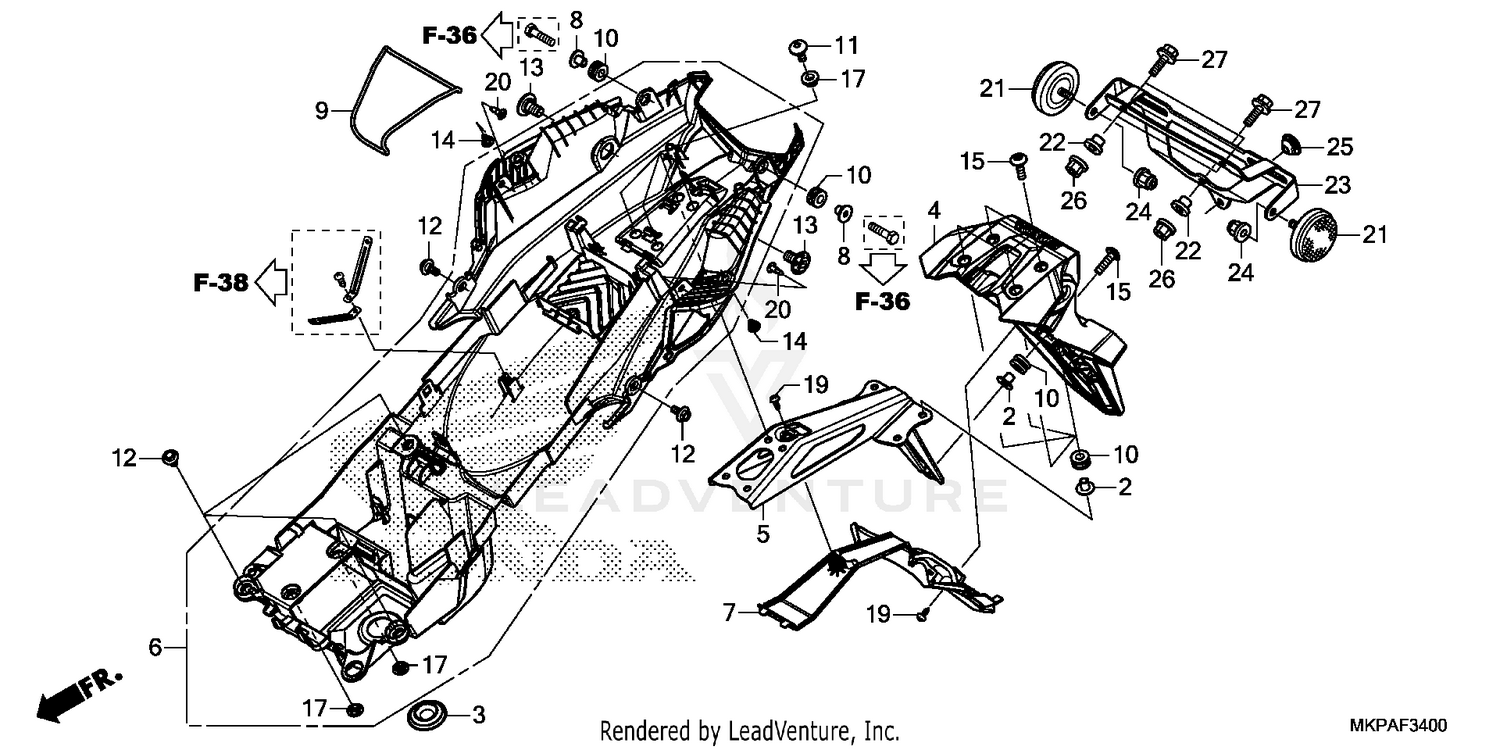

| Ref | Part Number | Description |
|---|
| 2 |
61103-KRY-900 |
COLLAR A, FR. FENDER Price: $1.45 |
| 3 |
64285-MKP-J00 |
GROMMET, PANEL (INNER) Price: $1.47 |
| 4 |
80100-MKP-A00ZA |
FENDER SET A, RR. (TYPE1) (WL) Price: $19.11 |
| 5 |
80102-MJW-J00 |
BRACKET, FENDER A Price: $70.95 |
| 6 |
80104-MKP-J00 |
FENDER ASSY. B, RR. Price: $36.96 |
| 7 |
80106-MJW-J00 |
COVER, RR. FENDER Price: $8.15 |
| 8 |
80113-MGZ-J00 |
COLLAR, TAILLIGHT Price: $2.20 |
| 9 |
80123-GN5-900 |
BAND, TOOL Price: $3.05 |
| 10 |
83545-KCJ-690 |
RUBBER, SIDE COVER Price: $1.60 |
| 11 |
90107-K26-900 |
BOLT, SPECIAL (6X16) Price: $1.22 |
| 12 |
90111-187-000 |
BOLT, FLANGE (6MM) Price: $7.02 |
| 13 |
90115-MKP-J00 |
BOLT, SPECIAL (10X16) Price: $2.07 |
| 14 |
90116-K0A-E11 |
RIVET, PUSH (6MM) Price: $1.47 |
| 15 |
90130-MKP-J00 |
SCREW, PAN (6X22) Price: $1.47 |
| 17 |
90503-MJE-D40 |
COLLAR, MOUNTING Price: $3.45 |
| 19 |
93903-24380 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 20 |
90116-SP0-003 |
CLIP, BUMPER SEAL Price: $5.93 |
| 21 |
33741-HB9-641 |
REFLECTOR, RR. REFLEX (RED) Price: $16.07 |
| 22 |
44125-MN5-000 |
COLLAR, FR. WHEEL COVER (FOR RR.) Price: $6.42 |
| 23 |
84700-KYJ-920 |
BRACKET, NUMBER PLATE Price: $19.11 |
| 24 |
90301-KGH-901 |
NUT, U (6MM) (FUJI SEIMITSU) Price: $1.58 |
| 25 |
90852-446-630 |
PLUG, HOLE Price: $2.93 |
| 26 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
