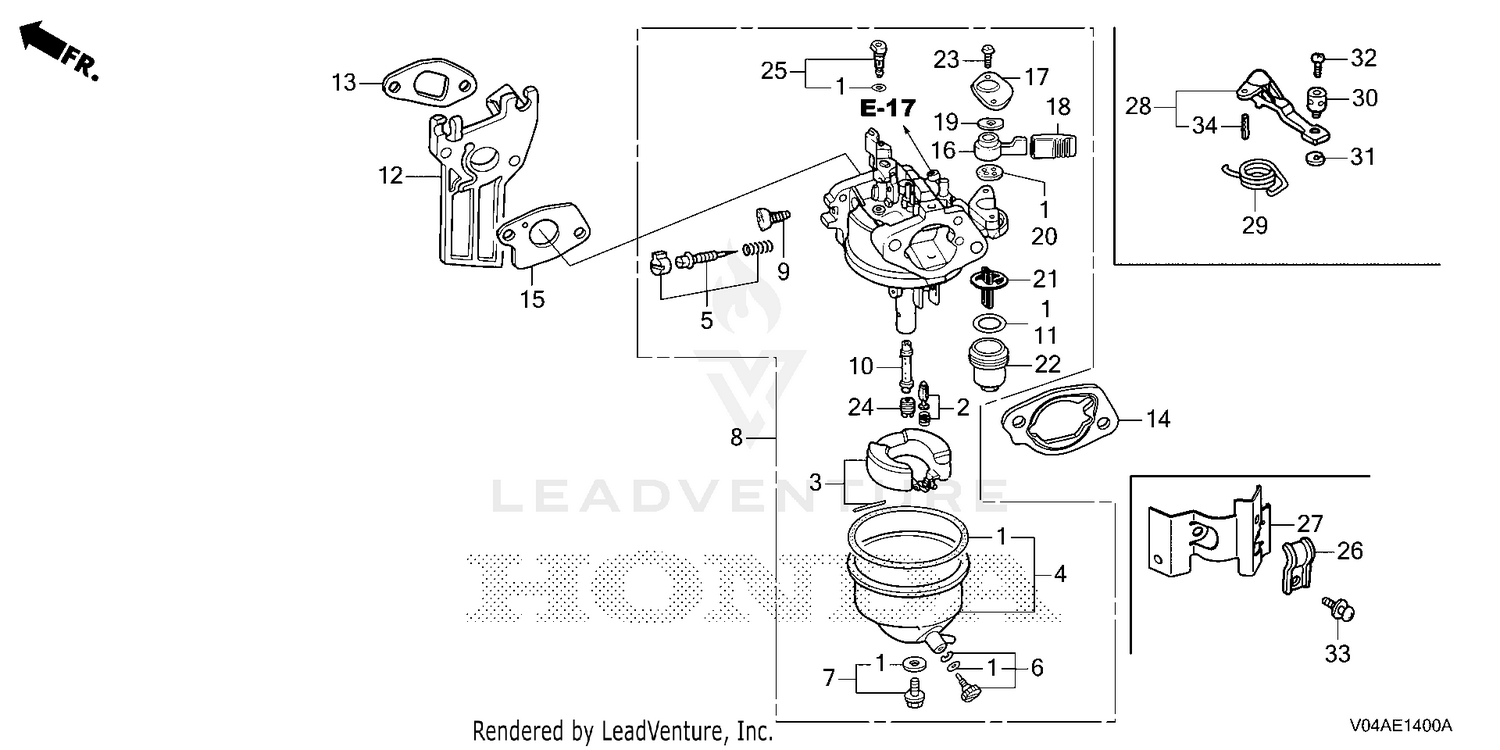

| Ref | Part Number | Description |
|---|
| 1 |
16010-ZH7-A20 |
GASKET SET (CARBURETOR NO.) Price: $17.56 |
| 2 |
16011-ZE0-005 |
VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED) Price: $29.34 |
| 3 |
16013-Z0S-B01 |
FLOAT SET (Honda Code 7346596). Price: $32.08 |
| 4 |
16015-Z4V-W11 |
CHAMBER, FLOAT Price: $63.04 |
| 5 |
16016-Z1E-V21 |
SCREW SET (CARBURETOR NO.) Price: $4.02 |
| 6 |
16024-ZH7-A20 |
SCREW SET, DRAIN (CARBURETOR NO.) Price: $11.32 |
| 7 |
16028-Z5T-901 |
SCREW SET (CARBURETOR NO.) Price: $5.60 |
| 8 |
16100-Z0V-HA1 |
CARBURETOR ASSY. (BEA3W A) Price: $69.67 |
| 9 |
16124-ZE0-005 |
SCREW, THROTTLE STOP (Honda Code 1441559). Price: $17.88 |
| 10 |
16166-Z0V-HA1 |
NOZZLE, MAIN (CARBURETOR NO.) Price: Call Us |
| 11 |
16173-001-004 |
GASKET, FUEL STRAINER CUP (Honda Code 0005652). Price: $7.14 |
| 12 |
16211-Z4V-000 |
INSULATOR, CARBURETOR Price: $24.34 |
| 13 |
16212-ZH8-800 |
SEE PART DETAILS - PRI; GASKET, INSULATOR Price: $3.32 |
| 14 |
16220-ZE1-020 |
SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2534055). Price: $8.36 |
| 15 |
16221-ZH8-801 |
SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289). Price: $2.30 |
| 16 |
16953-ZE1-712 |
LEVER, VALVE (Honda Code 5266069). Price: $10.76 |
| 17 |
16954-ZE1-812 |
SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.) Price: $4.16 |
| 18 |
16955-ZE2-H21 |
CAP, LEVER Price: $11.72 |
| 19 |
16956-ZE1-811 |
SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.) Price: $4.16 |
| 20 |
16957-ZE1-812 |
SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708). Price: $4.24 |
| 21 |
16959-Z5T-901 |
FILTER, CUP (CARBURETOR NO.) Price: $7.56 |
| 22 |
16967-ZE0-811 |
CUP, FUEL STRAINER (Honda Code 1441583). Price: $21.64 |
| 23 |
93500-03006-0H |
SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654). Price: $1.04 |
| 24 |
99101-ZH8-0780 |
JET, MAIN (#78) (CARBURETOR NO.) Price: $8.24 |
| 25 |
99204-ZE0-0380 |
JET SET, PILOT (#38) (Honda Code 3353075). Price: $23.18 |
| 26 |
16582-889-U20 |
HOLDER, CONTROL CABLE Price: $12.10 |
| 27 |
16598-Z0T-N70 |
STAY, CHOKE CONTROL Price: $7.32 |
| 28 |
16610-ZE1-810 |
LEVER, CHOKE (REMOTE) Price: $10.76 |
| 29 |
16615-ZE1-010 |
SEE PART DETAILS - PRI; SPRING, RETURN (Honda Code 2456721). Price: $5.50 |
| 30 |
16617-890-010 |
SEE PART DETAILS - PRI; HOLDER, CABLE (Honda Code 0760462). Price: $8.48 |
| 31 |
90605-230-000 |
CIRCLIP (5MM) Use from Engine SN 2327377. Price: $4.04 |
| 32 |
93500-04008-0A |
SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463). Price: $1.10 |
| 33 |
93892-05010-00 |
SEE PART DETAILS - PRI; SCREW-WASHER (5X10) Use up to Frame SN 1382074. Price: $0.64 |
