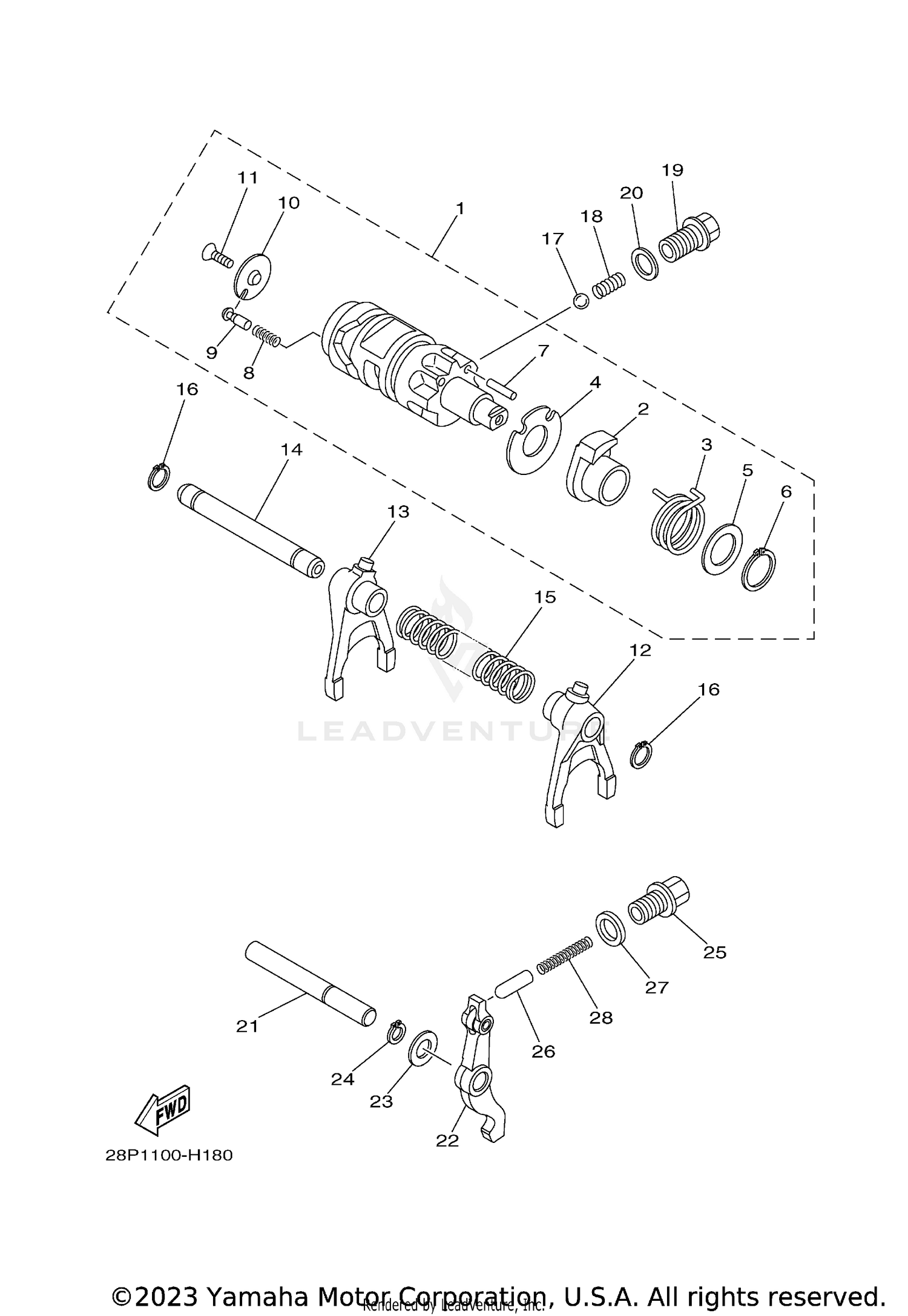

| Ref | Part Number | Description |
|---|
| 1 |
3B4-18540-21-00 |
SHIFT CAM ASSY Price: $196.99 |
| 2 |
5KM-18171-00-00 |
CAM, LEVER Price: $47.99 |
| 3 |
90508-32132-00 |
SPRING, TORSION Price: $3.90 |
| 4 |
3B4-18331-00-00 |
PLATE, SHIFT CAM Price: $3.30 |
| 5 |
90560-20040-00 |
SPACER Price: $3.15 |
| 6 |
93410-20038-00 |
CIRCLIP, S-TYPE Price: $4.05 |
| 7 |
93604-18100-00 |
PIN, DOWEL Price: $3.85 |
| 8 |
90501-06022-00 |
SPRING, COMPRESSION Price: $9.49 |
| 9 |
5KM-18542-00-00 |
POINT, NEUTRAL Price: $16.49 |
| 10 |
4UN-18566-00-00 |
PLATE, SIDE 2 Price: $21.99 |
| 11 |
90149-05015-00 |
SCREW This part replaces 90149-05016-00. Price: $6.49 |
| 12 |
3B4-18511-11-00 |
FORK, SHIFT 1 Price: $126.99 |
| 13 |
3B4-18512-11-00 |
FORK, SHIFT 2 Price: $129.99 |
| 14 |
3B4-18531-00-00 |
BAR, SHIFT FORK GUIDE 1 Price: $20.99 |
| 15 |
90501-140A2-00 |
SPRING, COMPRESSION Price: $9.49 |
| 16 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 17 |
93503-08007-00 |
BALL Price: $4.50 |
| 18 |
90501-10353-00 |
SPRING, COMPRESSION Price: $10.49 |
| 19 |
90105-14003-00 |
BOLT, FLANGE Price: $9.49 |
| 20 |
90430-14194-00 |
GASKET Price: $9.49 |
| 21 |
3B4-18318-00-00 |
SHAFT, SHIFTER Price: $13.49 |
| 22 |
28P-18140-02-00 |
STOPPER LEVER ASSY Price: $123.99 |
| 23 |
90201-127J6-00 |
WASHER, PLATE Price: $9.49 |
| 24 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 25 |
90109-14002-00 |
BOLT Price: $13.49 |
| 26 |
1J7-18547-00-00 |
STOPPER, CAM Price: $10.99 |
| 27 |
90430-14043-00 |
GASKET Price: $8.49 |
