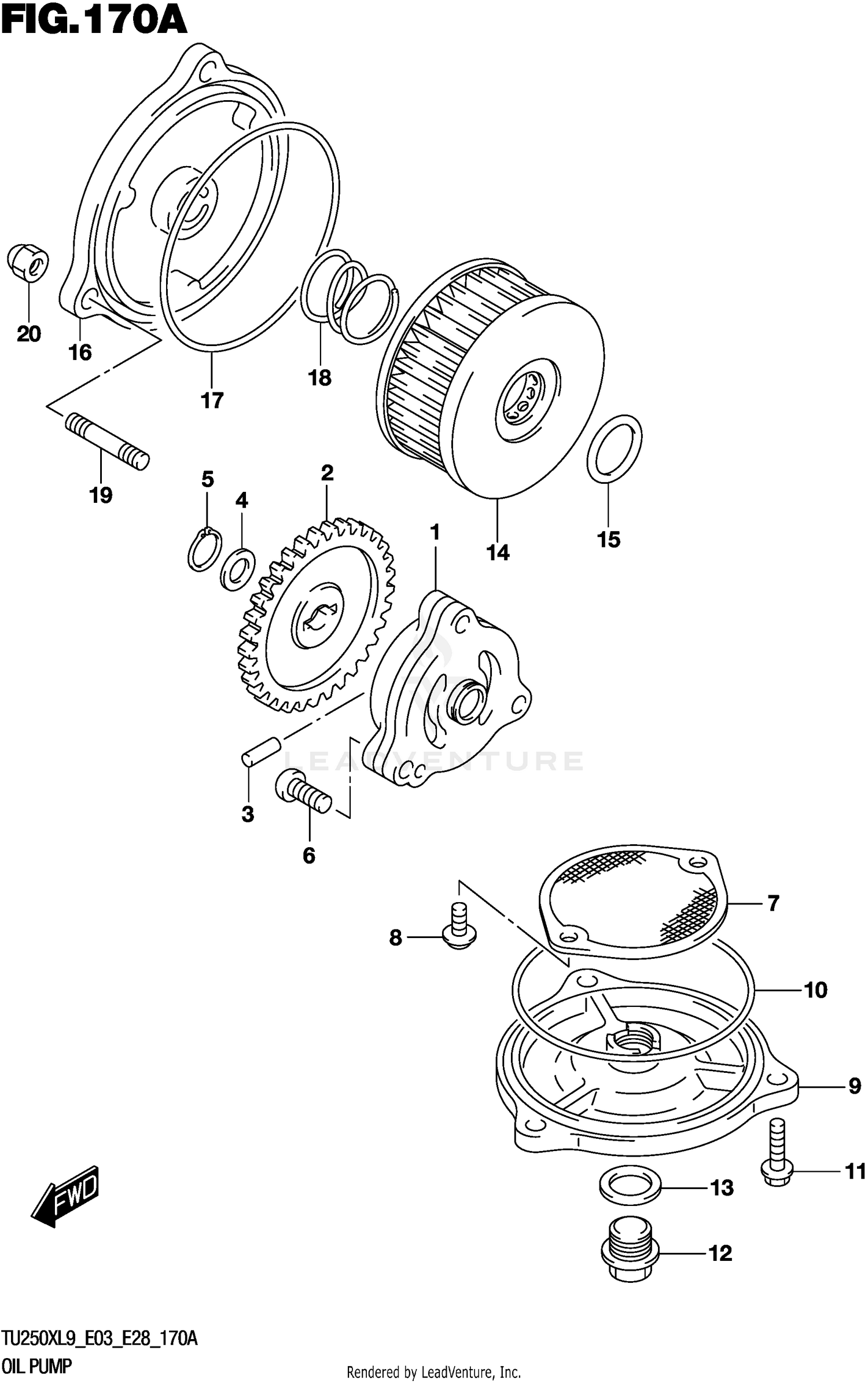

OIL PUMP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16400-38200 | PUMP ASSY Price: $187.22 |
| 2 | 16331-26F00 | GEAR Price: $22.73 |
| 3 | 09261-04001 | PIN (4X18.5) Price: $1.81 |
| 4 | 09181-10158 | SHIM (10X18X0.5) Price: $2.37 |
| 5 | 08331-31109 | CIRCLIP Price: $2.15 |
| 6 | 07130-0625A | BOLT (6X25) Price: $3.20 |
| 7 | 16520-37400 | STRAINER Price: $8.78 |
| 8 | 02112-7512A | SCREW Price: $2.95 |
| 9 | 16523-38200 | CAP Price: $35.39 |
| 11 | 01547-0620A | BOLT Price: $2.45 |
| 12 | 09247-14026 | PLUG (14X12) Price: $4.57 |
| 13 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 14 | 16510-38240 | FILTER Price: $7.27 |
| 15 | 09280-15007 | O RING (D:2.4,ID:15.8) Price: $2.07 |
| 16 | 16512-25D00 | CAP Price: $37.21 |
| 17 | 09280-72001 | O RING (D:2.4,ID:73) Price: $6.02 |
| 18 | 09440-21006 | SPRING Price: $2.45 |
| 19 | 09108-06123 | STUD BOLT Price: $3.83 |
