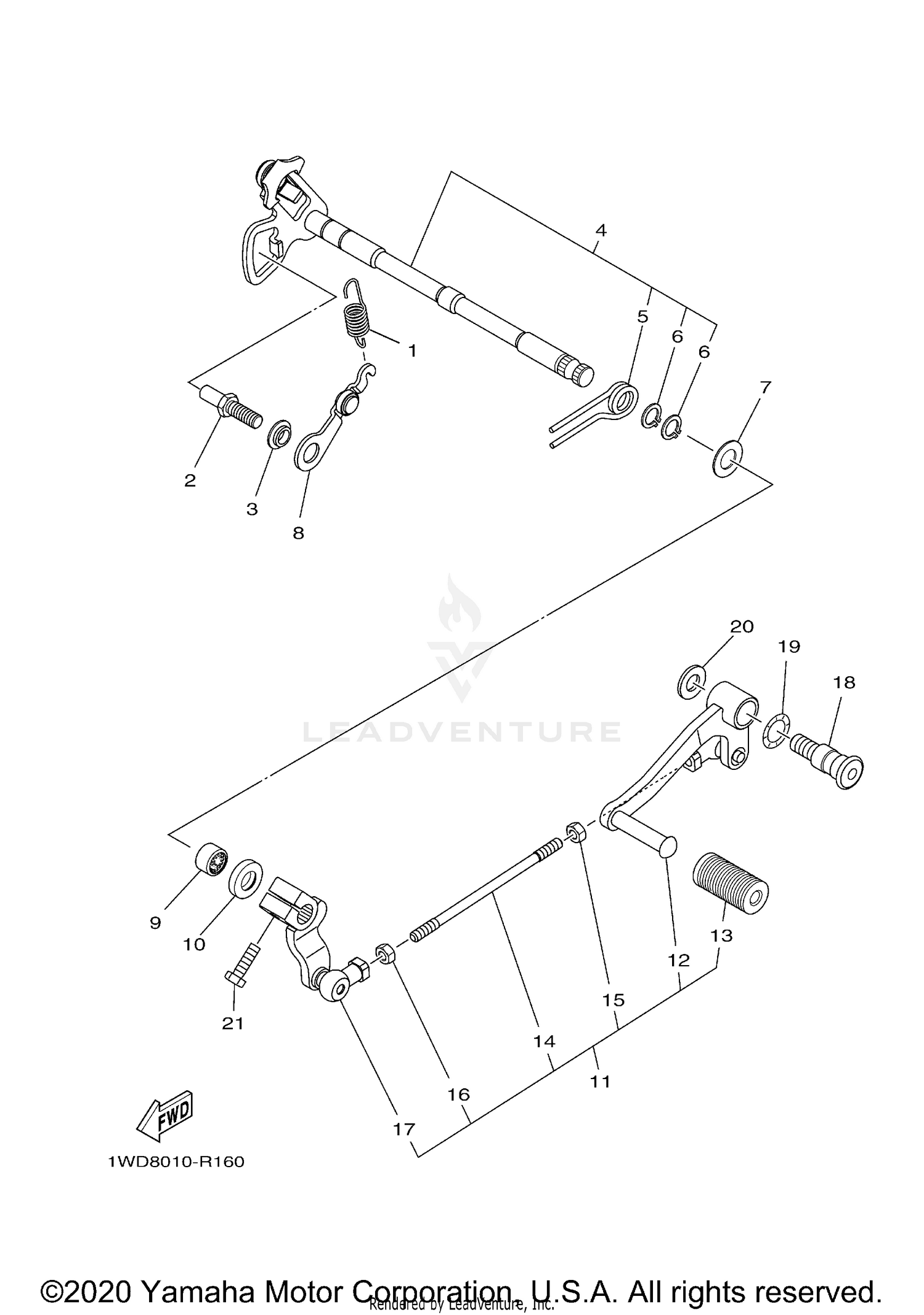

| Ref | Part Number | Description |
|---|
| 1 |
1WD-E8337-00-00 |
SPRING Price: $1.15 |
| 2 |
1WD-E8127-10-00 |
STOPPER, SCREW Price: $3.15 |
| 3 |
1WD-E8175-00-00 |
SPACER Price: $2.70 |
| 4 |
1WD-E8101-00-00 |
SHIFT SHAFT ASSY Price: $46.99 |
| 5 |
90508-29806-00 |
SPRING, TORSION Price: $3.80 |
| 6 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 7 |
90201-127E1-00 |
WASHER, PLATE Price: $4.65 |
| 8 |
1WD-E8140-00-00 |
STOPPER LEVER ASSY Price: $14.99 |
| 9 |
93317-11295-00 |
BEARING Price: $50.99 |
| 10 |
93102-12106-00 |
OIL SEAL (SD 12-22-5 HS) This part replaces 93102-12891-00. Price: $12.49 |
| 11 |
B1X-E8110-01-00 |
CHANGE PEDAL ASSY This part replaces 1WD-E8110-00-00. Price: $79.99 |
| 12 |
1WD-E8111-00-00 |
PEDAL, SHIFT Price: $49.99 |
| 13 |
1EG-E8113-02-00 |
COVER, SHIFT PEDAL This part replaces 1EG-E8113-01-00. Price: $1.10 |
| 14 |
1WD-E8115-00-00 |
ROD, SHIFT Price: $33.99 |
| 15 |
90170-06023-00 |
NUT Price: $6.49 |
| 16 |
95380-06600-00 |
NUT, HEXAGON This part replaces 95302-06600-00. Price: $4.80 |
| 17 |
1WD-E8112-00-00 |
ARM, SHIFT Price: $39.99 |
| 18 |
BS8-F7261-00-00 |
SHAFT Price: $7.49 |
| 19 |
90206-14001-00 |
WASHER, WAVE Price: $9.49 |
| 20 |
90201-10021-00 |
WASHER, PLATE Price: $6.49 |
