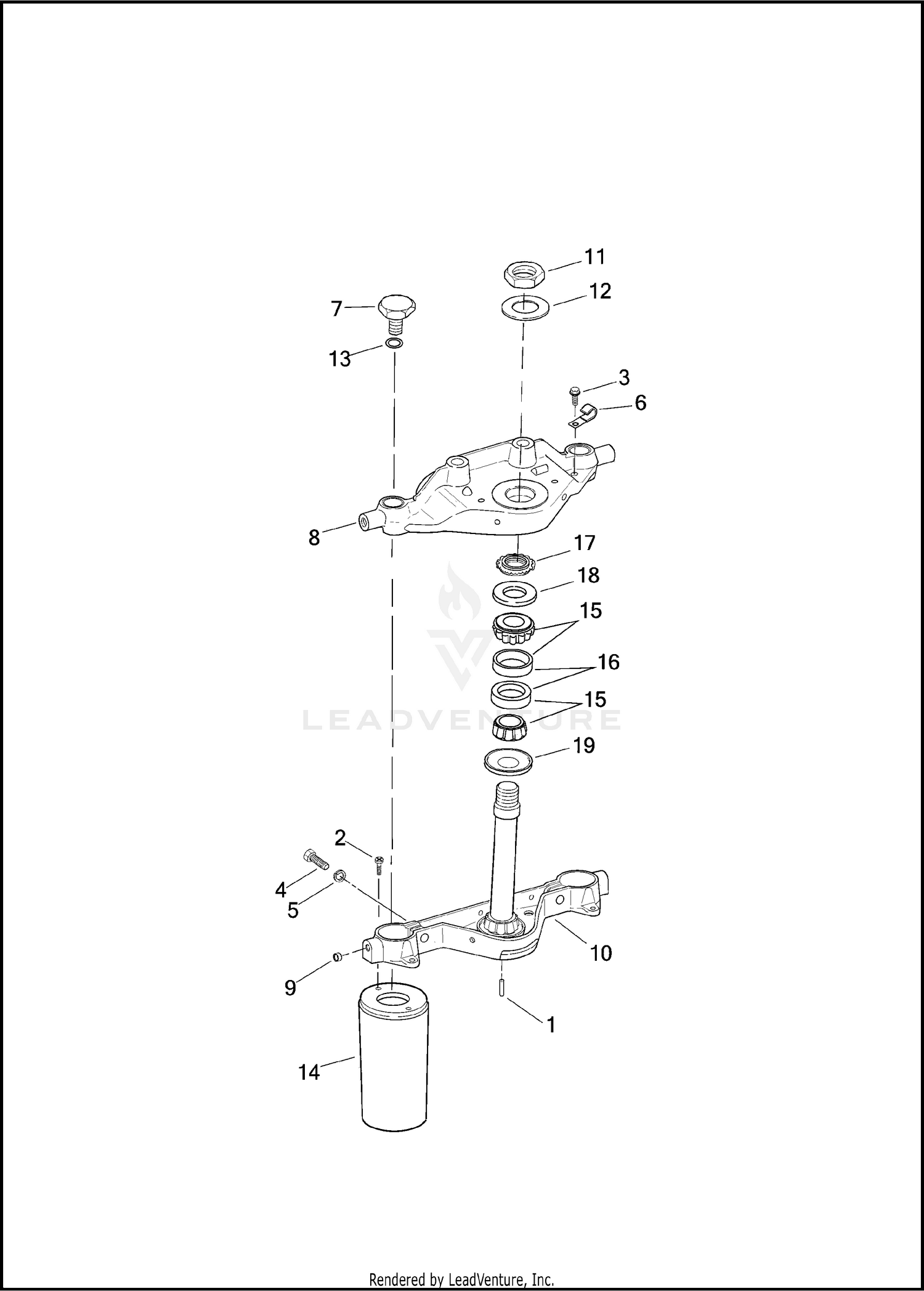

| Ref | Part Number | Description |
|---|
| 1 |
608 |
ROLL PIN Not Available Price: |
| 2 |
3537 |
SCREW 1/4-28 X 1/2 FLANGE HD., W/LOCKPATCH Price: $0.59 |
| 3 |
4240 |
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER Price: $0.59 |
| 4 |
4855 |
SCREW 7/16-20 X 1-3/8 HEX HD. (GRADE 8) Not Available Price: |
| 5 |
7039 |
LOCKWASHER 7/16 Price: $0.55 |
| 6 |
10092 |
J-CLAMP Not Available Price: |
| 7 |
45419-80 |
BOLT FORK Price: $17.09 |
| 8 |
45435-10 |
BRACKET UPPER Price: $236.30 |
| 9 |
45442-86 |
GUIDE BUSHING FORK STEM BRACKET ASSEMBLY Not Available Price: |
| 10 |
45446-09 |
BRACKET ASSEMBLY LOWER, W/ 608 & 48365-48A Not Available Price: |
| 11 |
45718-60 |
NUT 1-24 X 1.5 X 0.47 Price: $15.88 |
| 12 |
45727-08 |
WASHER 1-1/32 X 2.0 X 1/16 Not Available Price: |
| 13 |
45733-48 |
OIL SEAL FORK BRACKET BOLT Price: $1.38 |
| 14 |
45600015CPB |
FORK SLIDER COVER (GALAXY GRAY) Price: $392.17 |
| 14 |
45600015DRC |
FORK SLIDER COVER (BURNT EMERALD) Not Available Price: |
| 14 |
45600015DRJ |
FORK SLIDER COVER (OBSIDIAN) Not Available Price: |
| 14 |
45964-10 |
FORK SLIDER COVER (PRIME) Not Available Price: |
| 15 |
45700080 |
KIT,STRG,STEERING HEAD This part replaces 48300-60. Price: $17.05 |
| 16 |
45700080 |
KIT,STRG,STEERING HEAD This part replaces 48315-60. Price: $17.05 |
| 17 |
48333-80 |
SEAT UPPER HEAD CONE Price: $18.25 |
| 18 |
48361-80 |
DUST SHIELD BEARING, UPPER Price: $3.57 |
