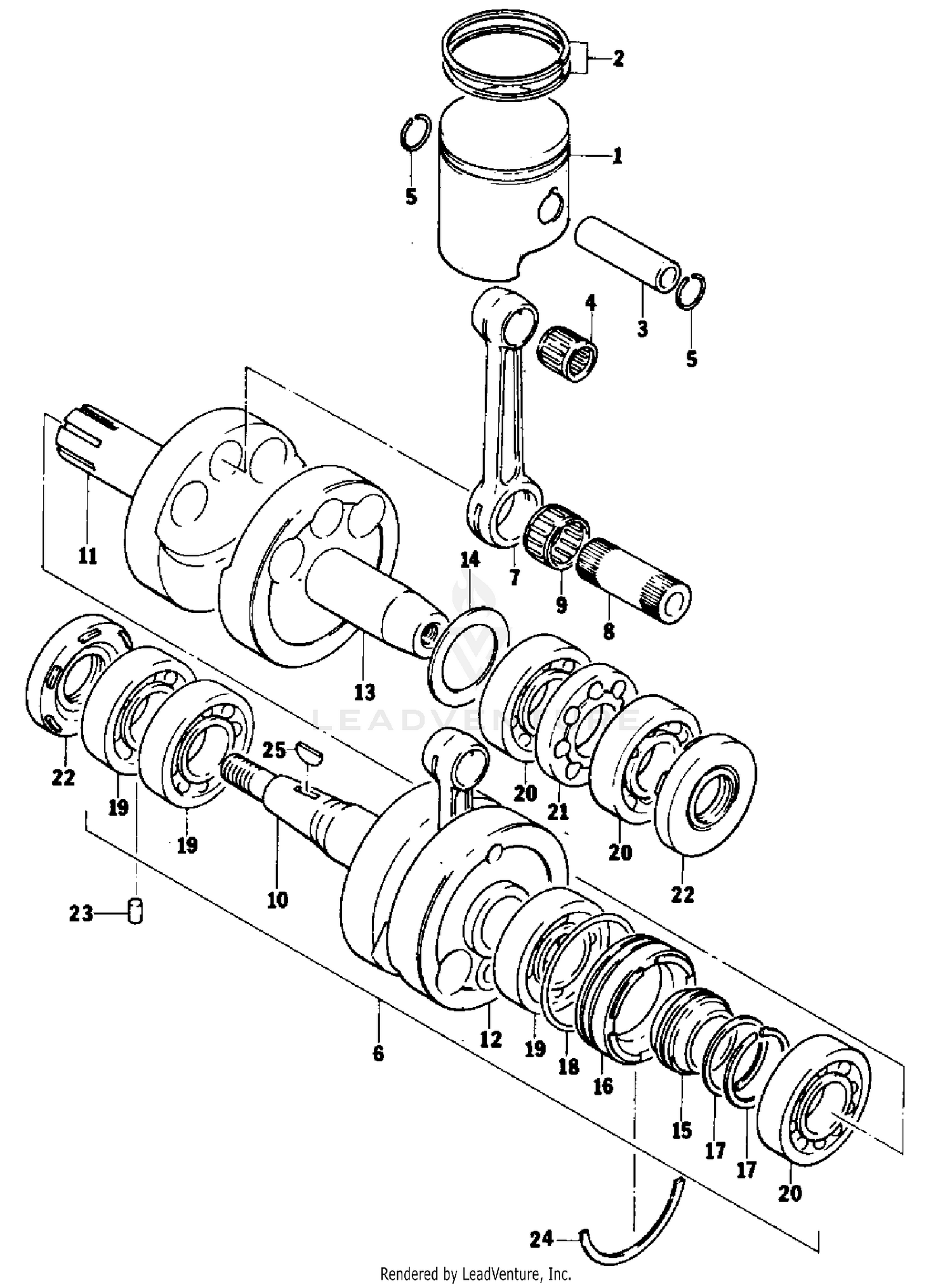

| Ref | Part Number | Description |
| 1 |
3005-683 |
PISTON ASSY,500F/C-'76-'88 Price: $241.95 |
| 2 |
3002-324 |
RING SET,500CC Price: $28.95 |
| 3 |
3002-647 |
PIN,PISTON Price: $23.95 |
| 4 |
3003-107 |
BEARING,PISTON PIN,ROLLER,M18X23X22 Price: $29.95 |
| 5 |
3003-537 |
Circlip, Piston Pin Price: $2.80 |
| 6 |
3002-947 |
CRANKSHAFT ASSY Price: $912.95 |
| 8 |
3002-173 |
PIN,CRANK Price: $80.95 |
| 9 |
3003-170 |
BEARING, ROD,ROLLER,M22,28,15.8 Price: $48.95 |
| 10 |
3002-187 |
Crankshaft-Right Price: $97.55 |
| 11 |
3002-186 |
Crankshaft-Center Price: $154.70 |
| 12 |
3002-534 |
WHEEL,CRANKSHAFT Price: $92.59 |
| 13 |
3002-536 |
CRANKSHAFT, LH Price: $342.95 |
| 14 |
3002-025 |
Washer - Left Price: $2.80 |
| 16 |
3002-097 |
Retainer Price: $27.30 |
| 17 |
3003-112 |
Ring, Center Price: $25.95 |
| 18 |
3004-818 |
O-Ring Price: $4.82 |
| 19 |
3002-624 |
BEARING,CRANKSHAFT,BALL,M30X65X16 Price: $93.95 |
| 20 |
3002-624 |
BEARING,CRANKSHAFT,BALL,M30X65X16 Price: $93.95 |
| 22 |
3002-717 |
SEAL,CRANKSHAFT-M30 Price: $47.95 |
| 23 |
3003-658 |
Pin, Alignment Price: $3.13 |
| 24 |
3003-736 |
C-Ring, Crankshaft Price: $9.95 |
