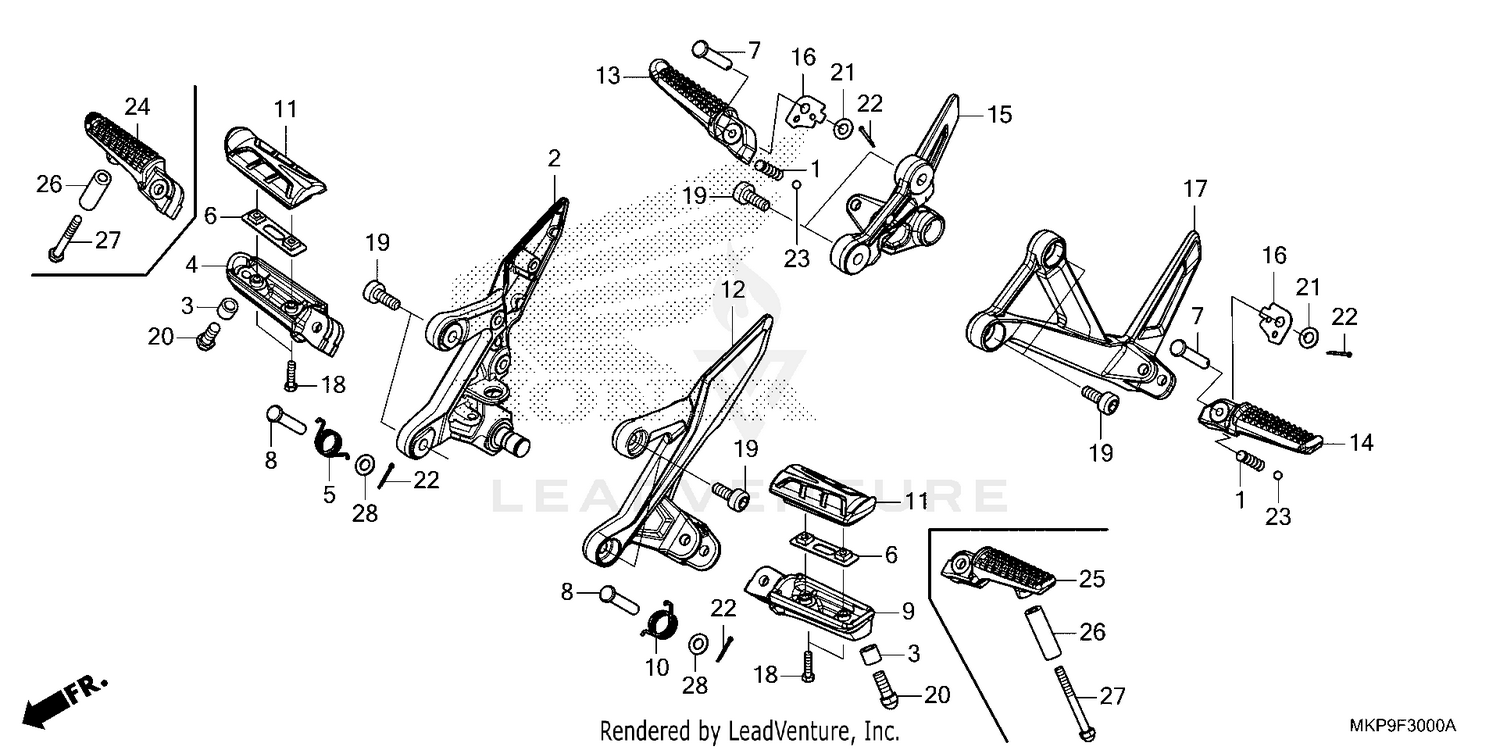

| Ref | Part Number | Description |
|---|
| 1 |
28333-300-000 |
SPRING, KICK STARTER STOPPER Price: $3.55 |
| 2 |
50600-MKP-J00 |
HOLDER, R. MAIN STEP Price: $45.42 |
| 5 |
50617-445-840 |
SPRING, R. STEP RETURN (L. SIDE) Price: $6.84 |
| 7 |
50639-MFL-D20 |
PIN, STEP BAR Price: $3.67 |
| 8 |
50639-ML0-010 |
PIN, STEP BAR Price: $6.36 |
| 10 |
50644-445-840 |
SPRING, L. STEP RETURN (R. SIDE) Price: $6.84 |
| 12 |
50700-MJW-J00 |
HOLDER, L. MAIN STEP Price: $37.13 |
| 13 |
50711-MGS-305 |
ARM, R. PILLION STEP (COO) This part replaces 50711-MGS-D30. Price: $73.49 |
| 14 |
50712-MGS-305 |
ARM, L. PILLION STEP (COO) This part replaces 50712-MGS-D30. Price: $73.49 |
| 15 |
50715-MJW-J00 |
HOLDER, R. PILLION STEP Price: $30.56 |
| 16 |
50718-MN8-000 |
PLATE, PILLION STEP CLICK Price: $2.84 |
| 17 |
50725-MJW-J00 |
HOLDER, L. PILLION STEP Price: $29.69 |
| 19 |
90116-MGZ-J00 |
BOLT, SOCKET (8X22) Price: $1.09 |
| 21 |
94102-08000 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 22 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 23 |
96211-08000 |
BALL, STEEL (#8) (1/4) Price: $1.30 |
| 24 |
50660-MKN-D50 |
ARM, R. MAIN STEP Price: $16.75 |
| 25 |
50665-MKN-D50 |
ARM, L. MAIN STEP Price: $16.75 |
| 26 |
50602-MKP-DN0 |
COLLAR, STEP (LOWER) Price: $3.40 |
| 27 |
92501-06055-0A |
BOLT, CAP (6X55) Price: $1.22 |
