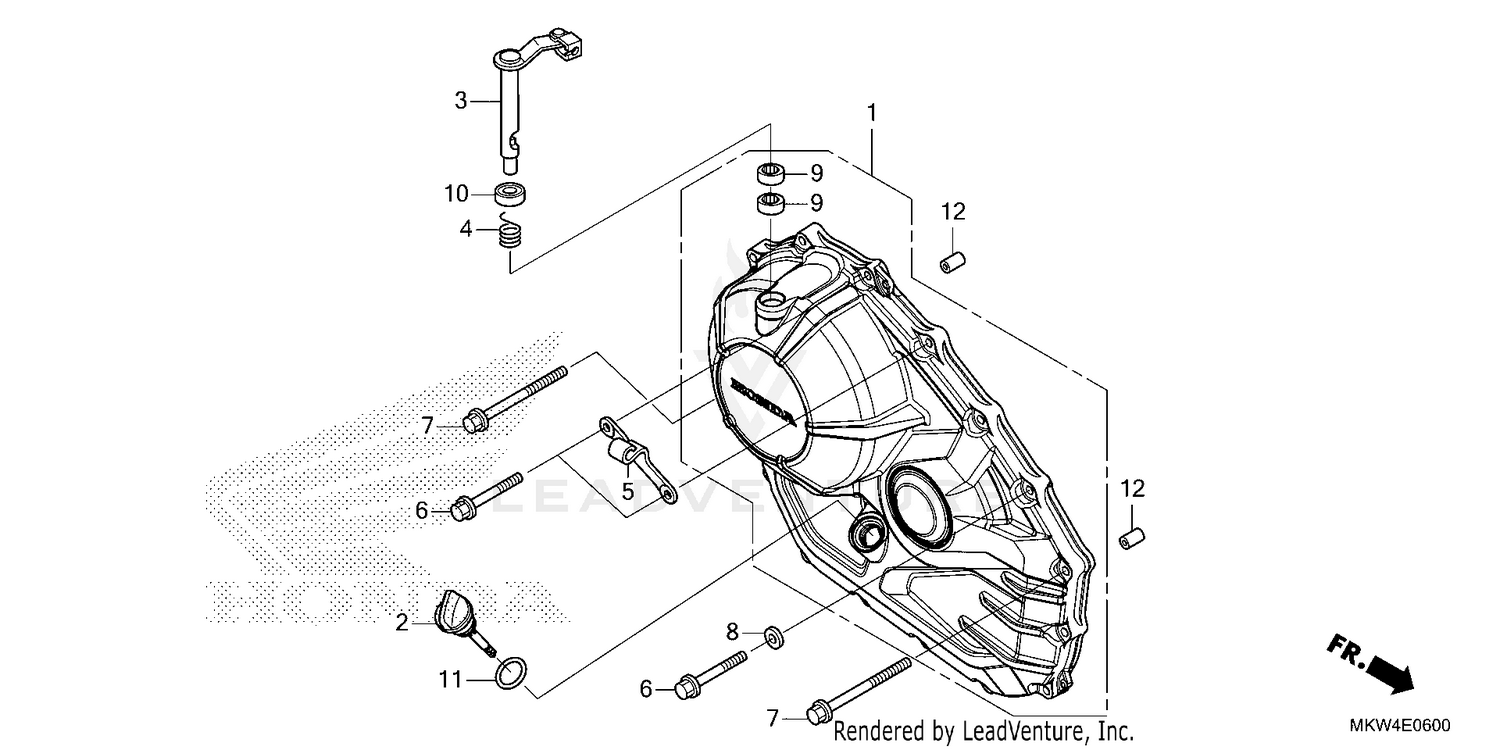

RIGHT CRANKCASE COVER (1)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11330-MKW-D00 | COVER, R. CRANKCASE Price: $322.83 |
| 2 | 15651-MKW-D00 | DIPSTICK, OIL Price: $9.82 |
| 3 | 22810-MKW-D00 | LEVER, CLUTCH Price: $55.29 |
| 4 | 22815-MJE-D00 | SPRING, CLUTCH LEVER Price: $1.25 |
| 5 | 22821-MKW-D00 | RECEIVER, CLUTCH CABLE Price: $8.13 |
| 6 | 90028-GHB-690 | BOLT, FLANGE (6X28) (S-NSHF) Price: $1.25 |
| 7 | 90028-GHB-740 | BOLT, FLANGE (6X40) (S-NSHF) Price: $2.67 |
| 8 | 90488-425-000 | WASHER, SEALING (6MM) Price: $2.60 |
| 9 | 91053-MFJ-D01 | BEARING, NEEDLE (12X16X10) Price: $5.36 |
| 10 | 91204-KK0-003 | OIL SEAL (12X18X5) (ARAI) Price: $6.35 |
| 11 | 91307-035-000 | O-RING (18X3) Price: $3.40 |
