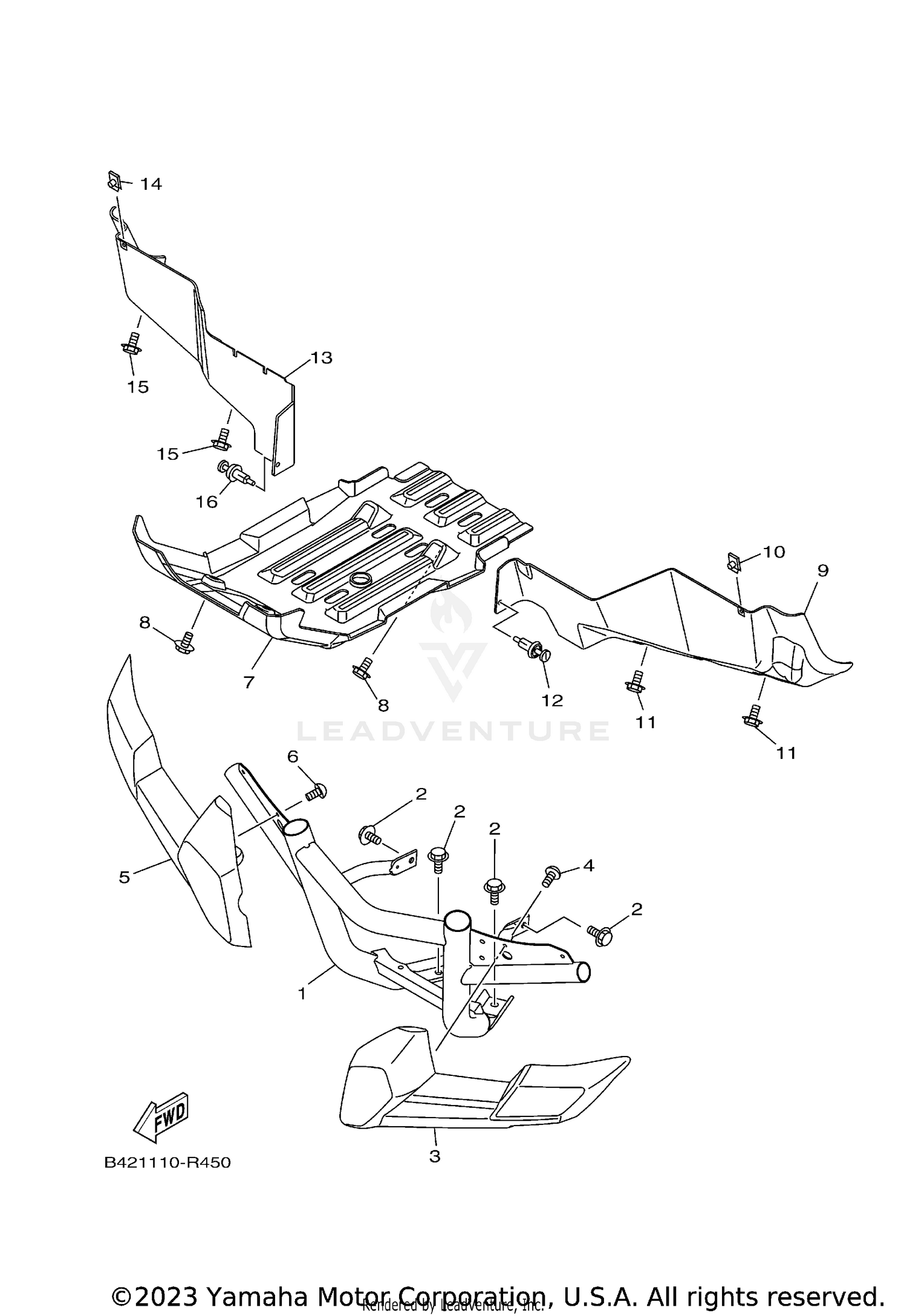

GUARD
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1XD-F845N-10-00 | BAR, CARRY FRONT Price: $209.99 |
| 2 | 95812-10016-00 | BOLT, FLANGE Price: $10.49 |
| 3 | 1XD-F842M-02-00 | COVER 1 This part replaces 1XD-F842M-01-00. Price: $58.99 |
| 4 | 90167-06800-00 | SCREW, TAPPING Price: $0.95 |
| 5 | 1XD-F842N-01-00 | COVER 2 Price: $49.99 |
| 6 | 90167-06800-00 | SCREW, TAPPING Price: $0.95 |
| 7 | 1XD-F8385-02-00 | COVER, LOWER This part replaces 1XD-F8385-01-00. Price: $64.99 |
| 8 | 90109-06202-00 | BOLT Price: $3.10 |
| 9 | 1XD-F2361-00-00 | GUARD 1 Price: $32.99 |
| 10 | 90183-060A6-00 | NUT, SPRING Price: $5.99 |
| 11 | 90109-06202-00 | BOLT Price: $3.10 |
| 12 | 90269-06800-00 | RIVET Price: $1.70 |
| 13 | 1XD-F2362-00-00 | GUARD 2 Price: $64.99 |
| 14 | 90183-060A6-00 | NUT, SPRING Price: $5.99 |
| 15 | 90109-06202-00 | BOLT Price: $3.10 |
