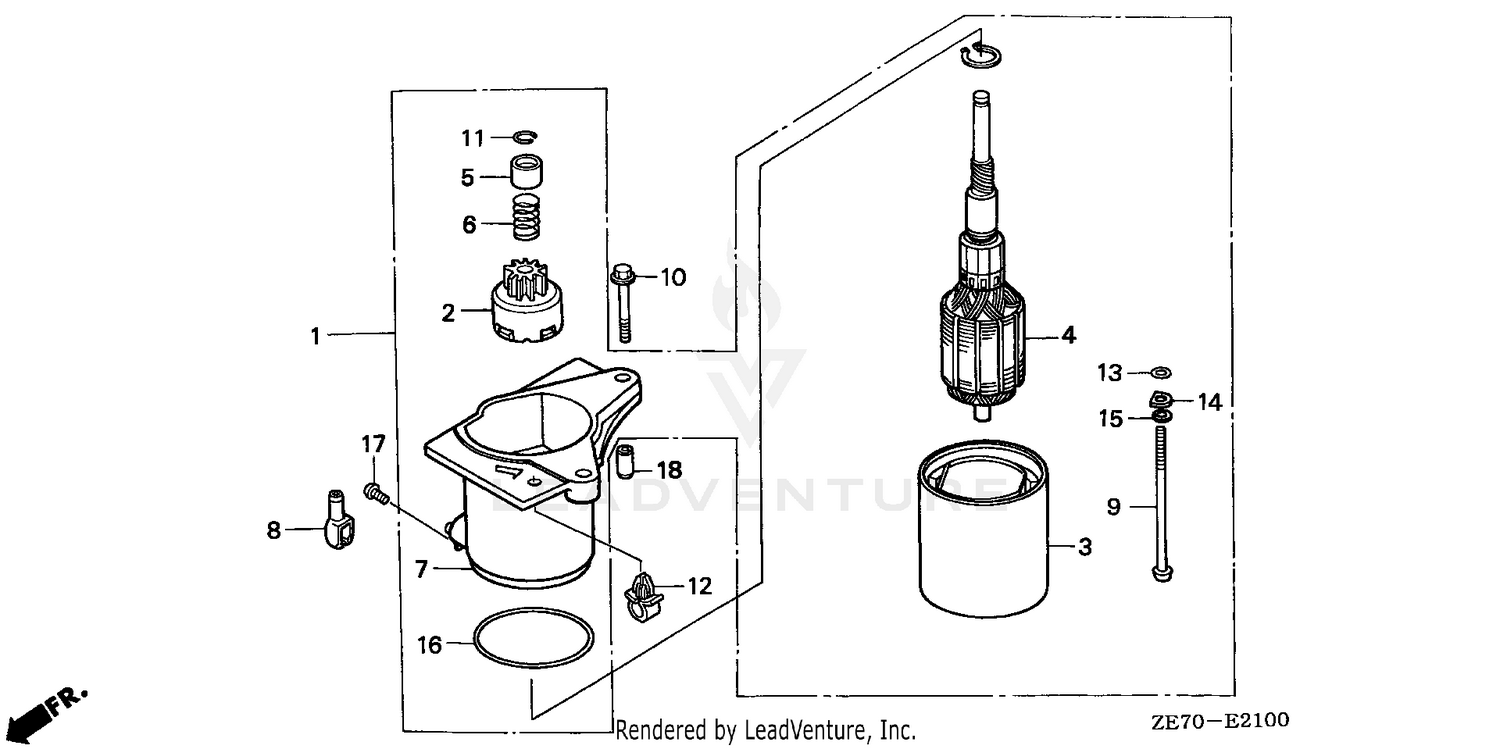

| Ref | Part Number | Description |
|---|
| 1 |
31210-ZE7-023 |
SEE PART DETAILS - PRI; MOTOR UNIT, STARTER Price: $675.88 |
| 2 |
31214-ZE7-003 |
GEAR ASSY., PINION Price: $165.16 |
| 3 |
31216-ZE1-721 |
YOKE ASSY. Price: $44.12 |
| 4 |
31217-ZE7-013 |
SEE PART DETAILS - PRI; ROTOR ASSY. Price: $102.93 |
| 5 |
31221-ZE7-003 |
PIECE, STOPPER Price: $33.06 |
| 6 |
31223-ZE7-003 |
SPRING, RETURN Price: $5.06 |
| 7 |
31235-ZE7-013 |
SEE PART DETAILS - PRI; BRACKET, FR. Price: $133.26 |
| 8 |
32411-ZE7-003 |
COVER, TERMINAL Price: $4.38 |
| 9 |
90012-ZE6-003 |
BOLT, SETTING Price: $2.38 |
| 10 |
90017-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076). Price: $3.36 |
| 11 |
90602-ZE7-003 |
CIRCLIP (OUTER) (8.3MM) Price: $1.86 |
| 13 |
91301-ZE1-003 |
SEE PART DETAILS - PRI; O-RING (Honda Code 3329398). Price: $2.38 |
| 14 |
91402-ZE6-003 |
WASHER, SPECIAL (Honda Code 1879907). Price: $2.46 |
| 15 |
91403-ZE6-003 |
WASHER, SPRING (Honda Code 1879915). Price: $2.16 |
| 16 |
31206-KN7-670 |
O-RING Use from Engine SN 2664637. Price: $2.92 |
