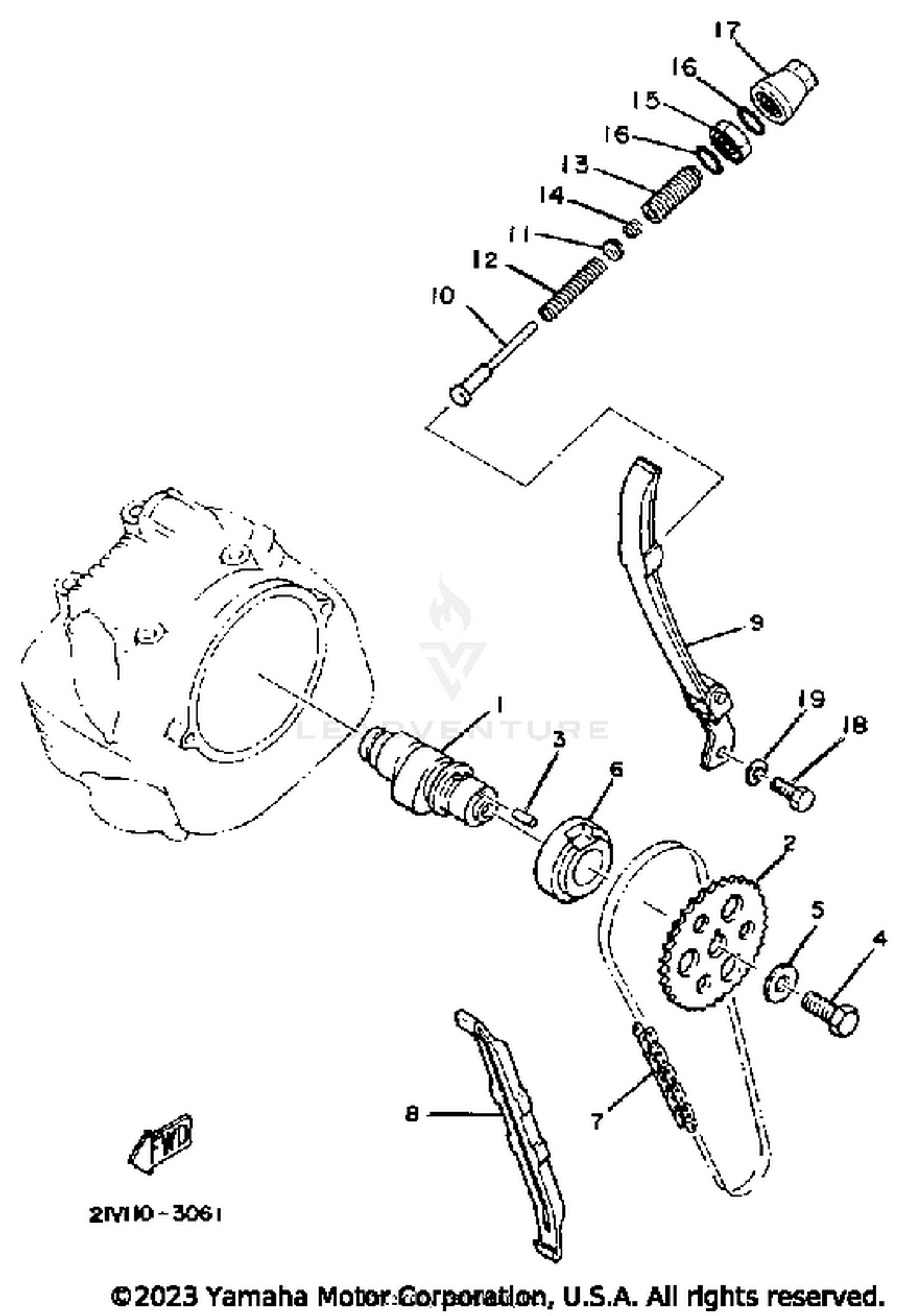

| Ref | Part Number | Description |
|---|
| 1 |
5N0-12171-11-00 |
CAMSHAFT 1 This part replaces 5N0-12171-01-00. Price: $140.99 |
| 2 |
5H0-12176-00-00 |
SPROCKET, CAM CHAIN (40T) Price: $30.99 |
| 3 |
93604-10011-00 |
PIN, DOWEL Price: $8.49 |
| 4 |
90101-10303-00 |
BOLT Price: $10.49 |
| 5 |
90201-10774-00 |
WASHER, PLATE Price: $10.49 |
| 6 |
90387-255F3-00 |
COLLAR Price: $49.99 |
| 7 |
94580-41104-00 |
CHAIN (DID25SH 104L) Price: $81.99 |
| 8 |
5H0-12231-01-00 |
GUIDE, STOPPER 1 This part replaces 5H0-12231-00-00. Price: $26.99 |
| 9 |
5N0-12241-01-00 |
GUIDE, STOPPER 2 This part replaces 5N0-12241-00-00. Price: $62.99 |
| 10 |
25A-12217-00-00 |
ROD, CHAIN TENSIONER Price: $6.99 |
| 11 |
3Y1-12232-00-00 |
DAMPER Price: $18.99 |
| 12 |
90501-10587-00 |
SPRING, COMPRESSION Price: $8.49 |
| 13 |
90149-14182-00 |
SCREW Price: $17.99 |
| 14 |
90501-22721-00 |
SPRING, COMPRESSION Price: $10.49 |
| 15 |
90179-14298-00 |
NUT Price: $16.49 |
| 16 |
93210-16629-00 |
O-RING Price: $8.49 |
| 17 |
3Y1-12212-00-00 |
CASE, CHAIN TENSIONER Price: $8.49 |
| 18 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 97011-06016-00. Price: $2.76 |
