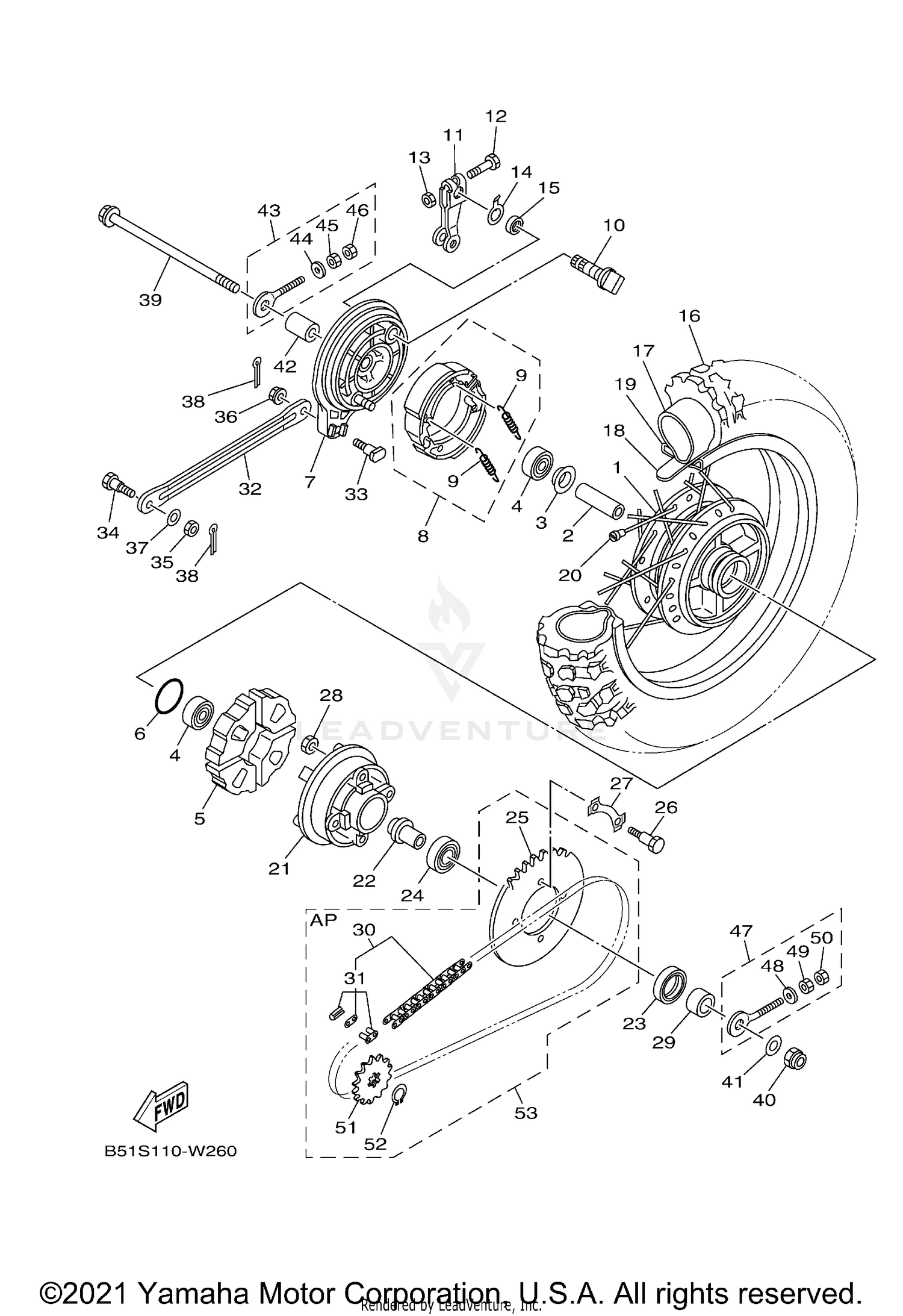

| Ref | Part Number | Description |
|---|
| 2 |
90560-12145-00 |
SPACER Price: $22.99 |
| 3 |
109-25315-00-00 |
FLANGE, SPACER This part replaces 102-25315-00-00. Price: $8.49 |
| 4 |
93306-30111-00 |
BEARING Price: $44.99 |
| 5 |
304-25364-01-00 |
DAMPER This part replaces 21W-25364-00-00. Price: $30.99 |
| 6 |
93210-41041-00 |
O-RING Price: $8.49 |
| 8 |
4BE-W253E-00-00 |
BRAKE SHOE KIT Price: $24.99 |
| 9 |
90506-15260-00 |
SPRING, TENSION Price: $9.49 |
| 10 |
4GL-25351-00-00 |
CAMSHAFT This part replaces 3Y6-25351-00-00. Price: $74.99 |
| 11 |
538-25355-00-00 |
LEVER, CAMSHAFT Price: $42.99 |
| 12 |
90101-06278-00 |
BOLT Price: $2.60 |
| 13 |
95317-06600-00 |
NUT This part replaces 95307-06600-00. Price: $3.85 |
| 14 |
3Y6-2533A-01-00 |
PLATE, INDICATOR Price: $6.49 |
| 15 |
93109-14021-00 |
OIL SEAL Price: $14.49 |
| 19 |
94416-12002-00 |
RIM (1.60-12) Price: $169.99 |
| 20 |
21W-25304-00-00 |
SPOKE SET, REAR Price: $77.99 |
| 22 |
21W-25387-00-00 |
AXLE, SPROCKET Price: $35.99 |
| 23 |
93106-30004-00 |
OIL SEAL Price: $14.49 |
| 24 |
93306-00444-00 |
BEARING This part replaces 93306-00416-00. Price: $45.99 |
| 25 |
5A7-25435-01-00 |
SPROCKET, DRIVEN (35T) Price: $29.99 |
| 26 |
90101-08672-00 |
BOLT Price: $5.49 |
| 27 |
4AW-25412-00-00 |
WASHER Price: $7.49 |
| 28 |
90179-08639-00 |
NUT, SPECIAL SHAPE (30) This part replaces 90179-08168-00. Price: $10.49 |
| 29 |
90387-207G3-00 |
COLLAR Price: $17.49 |
| 31 |
94680-52001-00 |
JOINT, CHAIN (DID 420M) Price: $3.35 |
| 32 |
4BC-25371-00-00 |
BAR, TENSION Price: $19.99 |
| 33 |
90109-08183-00 |
BOLT Price: $9.49 |
| 34 |
90109-08368-00 |
BOLT Price: $9.49 |
| 35 |
95317-08700-00 |
NUT This part replaces 95307-08700-00. Price: $10.49 |
| 36 |
95707-08500-00 |
NUT,FLANGE (JN5) Price: $1.95 |
| 37 |
92990-08600-00 |
WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
| 38 |
91490-20015-00 |
PIN. COTTER This part replaces 91402-20012-00. Price: $2.20 |
| 39 |
5HN-25381-00-00 |
AXLE, WHEEL Price: $31.99 |
| 40 |
90185-12007-00 |
NUT, SELF-LOCKING Price: $11.49 |
| 41 |
90201-12045-00 |
WASHER, PLATE Price: $6.49 |
| 42 |
90387-12412-00 |
COLLAR Price: $19.49 |
| 43 |
3AC-2538G-10-00 |
PULLER, CHAIN Price: $15.49 |
| 44 |
90201-061A5-00 |
WASHER, PLATE Price: $8.49 |
| 45 |
90170-06184-00 |
NUT Price: $6.49 |
| 46 |
95317-06600-00 |
NUT This part replaces 95307-06600-00. Price: $3.85 |
| 47 |
4GL-2538G-10-00 |
PULLER, CHAIN Price: $19.99 |
| 48 |
90201-061A5-00 |
WASHER, PLATE Price: $8.49 |
| 49 |
90170-06184-00 |
NUT Price: $6.49 |
| 50 |
95317-06600-00 |
NUT This part replaces 95307-06600-00. Price: $3.85 |
| 51 |
93812-14814-00 |
SPROCKET, DRIVE (14T) Price: $15.49 |
| 52 |
93410-20038-00 |
CIRCLIP, S-TYPE Price: $4.05 |
