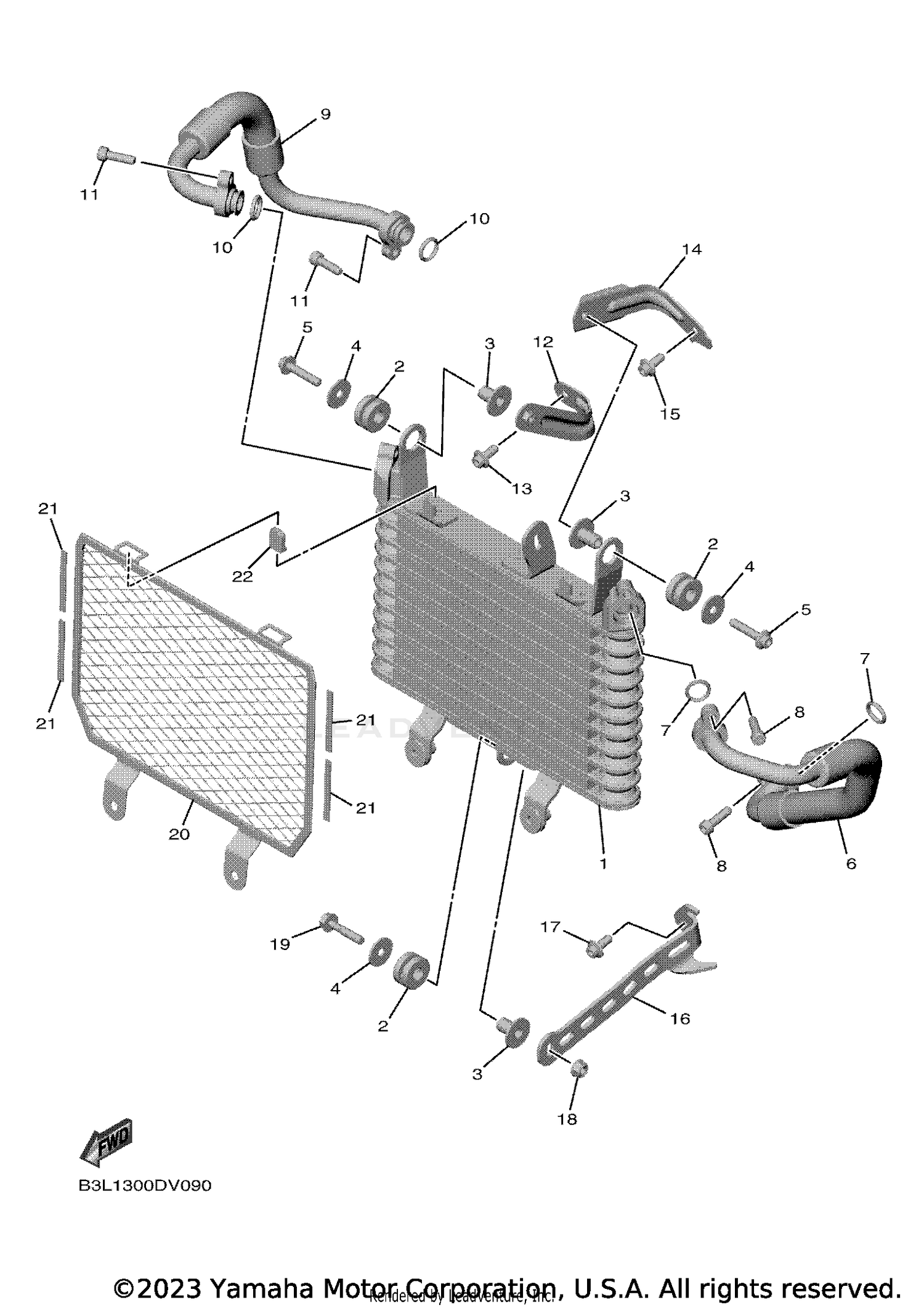

| Ref | Part Number | Description |
|---|
| 1 |
2CR-13470-00-00 |
OIL COOLER ASSY Price: $495.99 |
| 2 |
90480-15363-00 |
GROMMET Price: $9.49 |
| 3 |
90387-0614M-00 |
COLLAR Price: $12.49 |
| 4 |
90201-063J2-00 |
WASHER, PLATE This part replaces 90201-06071-00. Price: $6.49 |
| 5 |
90110-06346-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 6 |
2CR-13464-00-00 |
HOSE, OIL 1 Price: $238.99 |
| 7 |
93210-13657-00 |
O-RING Price: $8.49 |
| 8 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06211-00. Price: $2.65 |
| 9 |
2CR-13465-00-00 |
HOSE, OIL 2 Price: $232.99 |
| 10 |
93210-13657-00 |
O-RING Price: $8.49 |
| 11 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06211-00. Price: $2.65 |
| 12 |
2CR-13151-00-00 |
STAY Price: $16.49 |
| 13 |
90110-06341-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.30 |
| 14 |
2CR-13152-00-00 |
STAY 2 Price: $16.49 |
| 15 |
90110-06341-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.30 |
| 16 |
2CR-13782-00-00 |
STAY Price: $17.99 |
| 17 |
90110-06341-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.30 |
| 18 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95607-06200-00. Price: $2.95 |
| 19 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95827-06030-00. Price: $4.65 |
| 20 |
2CR-13463-00-00 |
COVER, OIL COOLER Price: $52.99 |
| 21 |
2CR-13381-00-00 |
DAMPER Price: $3.00 |
