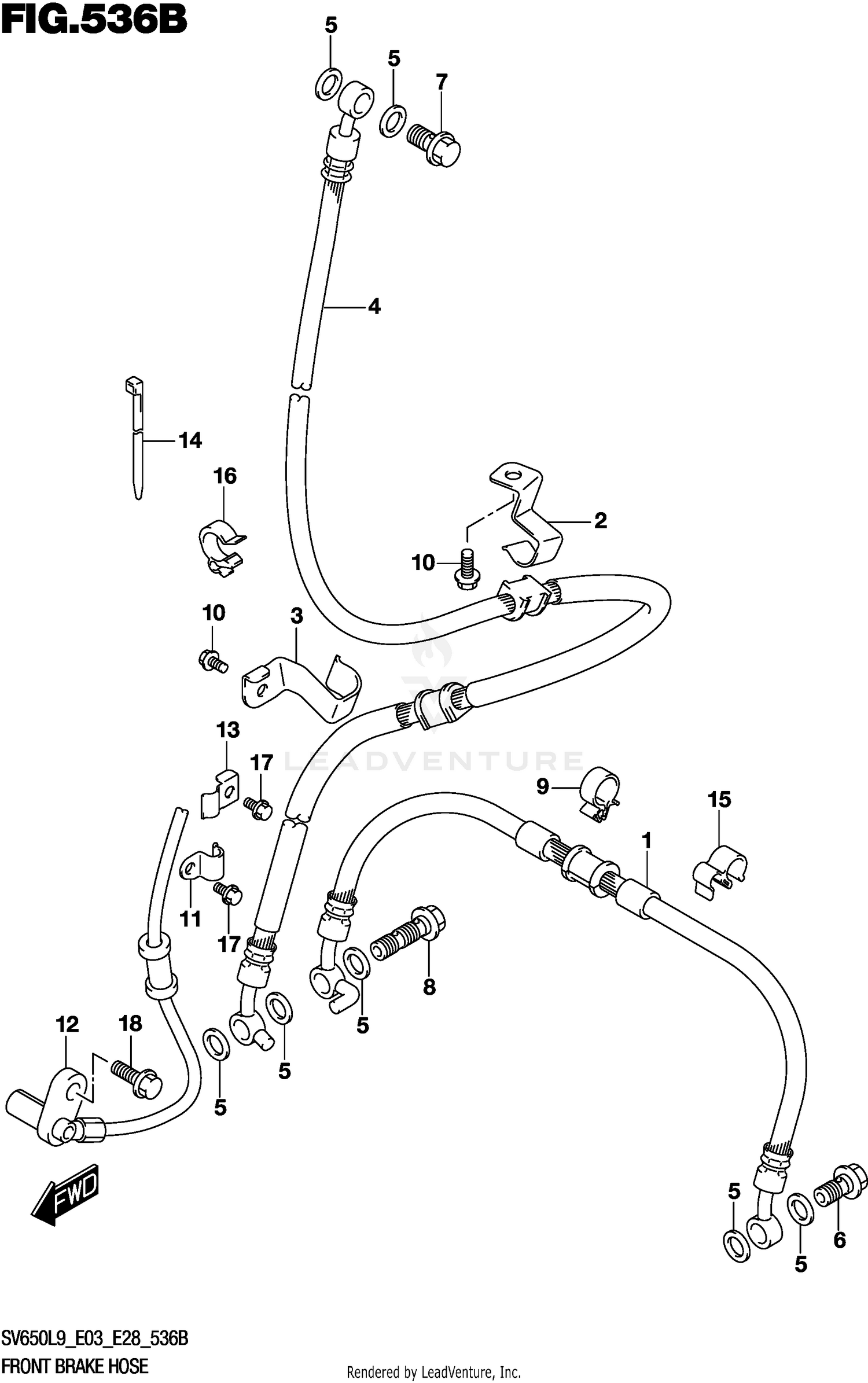

FRONT BRAKE HOSE (SV650L9 E33)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 59240-18K21 | HOSE,FR BK CLPR TO CLPR This part replaces 59240-18K20. Price: $54.40 |
| 2 | 59261-44H00 | CLAMP,FR BRAKE HOSE NO.1 Price: $10.33 |
| 3 | 59263-44H10 | CLAMP,FR BRAKE HOSE NO.2 Price: $10.69 |
| 4 | 59480-18K20 | HOSE,FR BK MASTER TO CLPR Price: $89.32 |
| 5 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 6 | 09360-10062 | UNION (10X1.25X22) Price: $7.84 |
| 7 | 09360-10062 | UNION This part replaces 09360-10042. Price: $7.84 |
| 8 | 09360-10064 | UNION (10X1.25X36) Price: $7.84 |
| 9 | 09403-16412 | CLAMP Price: $4.16 |
| 10 | 09103-06525 | BOLT (6X12) Price: $1.74 |
| 11 | 55731-15H00 | CLAMP, ABS SENSOR FR Price: $5.23 |
| 12 | 55710-18K30 | SENSOR,FR WHEEL SPEED Price: $235.22 |
| 13 | 55733-44H00 | CLAMP,SENSOR LEAD FR NO.3 Price: $6.05 |
| 14 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 15 | 09408-00266 | CLAMP Price: $3.04 |
| 16 | 09408-00307 | CLAMP Price: $3.12 |
| 17 | 09103-06525 | BOLT (6X12) Price: $1.74 |
