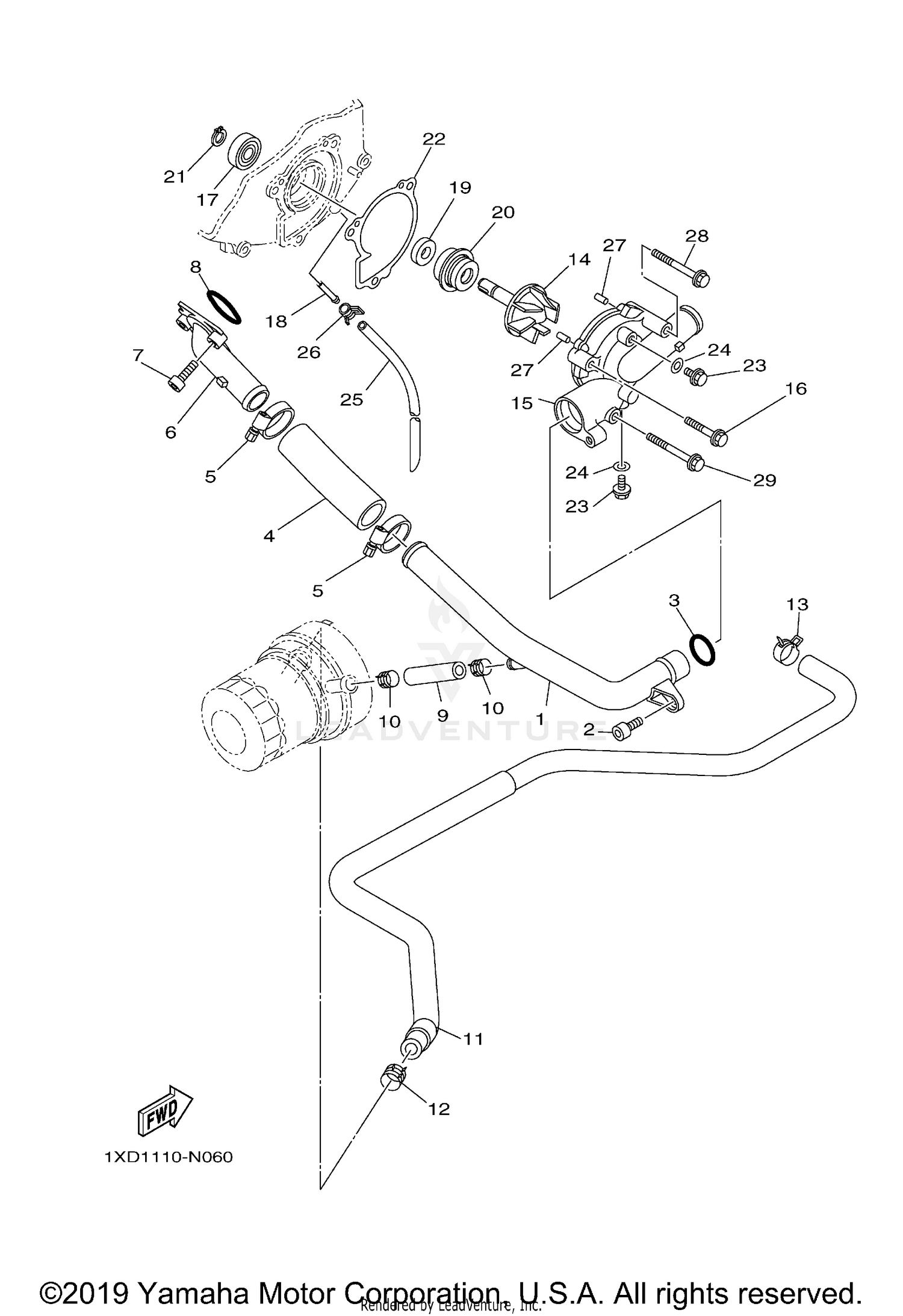

| Ref | Part Number | Description |
|---|
| 1 |
1XD-12481-00-00 |
PIPE 1 Price: $44.99 |
| 2 |
91317-06012-00 |
BOLT This part replaces 91312-06012-00. Price: $9.49 |
| 3 |
93210-21190-00 |
O-RING Price: $8.49 |
| 4 |
90445-29002-00 |
HOSE (L88) Price: $5.99 |
| 5 |
90450-32015-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 6 |
5KM-12469-00-00 |
JOINT 1 Price: $61.99 |
| 7 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91312-06020-00. Price: $2.65 |
| 8 |
93210-33006-00 |
O-RING This part replaces 93210-33786-00. Price: $5.49 |
| 9 |
90445-16018-00 |
HOSE (L58) Price: $4.75 |
| 10 |
90467-15054-00 |
CLIP Price: $9.49 |
| 11 |
1XD-1243E-00-00 |
HOSE 2 Price: $46.99 |
| 12 |
90467-15054-00 |
CLIP Price: $9.49 |
| 13 |
90467-15054-00 |
CLIP Price: $9.49 |
| 14 |
3B4-12450-00-00 |
IMPELLER SHAFT ASSY Price: $58.99 |
| 15 |
5B4-12422-00-00 |
COVER, HOUSING Price: $87.99 |
| 16 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 17 |
93306-00004-00 |
BEARING This part replaces 93306-00006-00. Price: $41.99 |
| 18 |
5D3-1243K-00-00 |
PIPE, DRAIN Price: $10.99 |
| 19 |
93101-10090-00 |
OIL SEAL, S-TYPE Price: $9.49 |
| 20 |
11H-12438-10-00 |
SEAL, MECHANICAL Price: $68.99 |
| 21 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 22 |
3B4-12428-00-00 |
GASKET, HOUSING COVER 2 Price: $12.99 |
| 23 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 24 |
90430-06014-00 |
GASKET Price: $8.60 |
| 25 |
90445-072G8-00 |
HOSE (L310) This part replaces 90445-07340-00. Price: $32.99 |
| 26 |
90467-07093-00 |
CLIP Price: $3.60 |
| 27 |
93604-10011-00 |
PIN, DOWEL Price: $8.49 |
| 28 |
95022-06050-00 |
BOLT, FLANGE Price: $1.80 |
