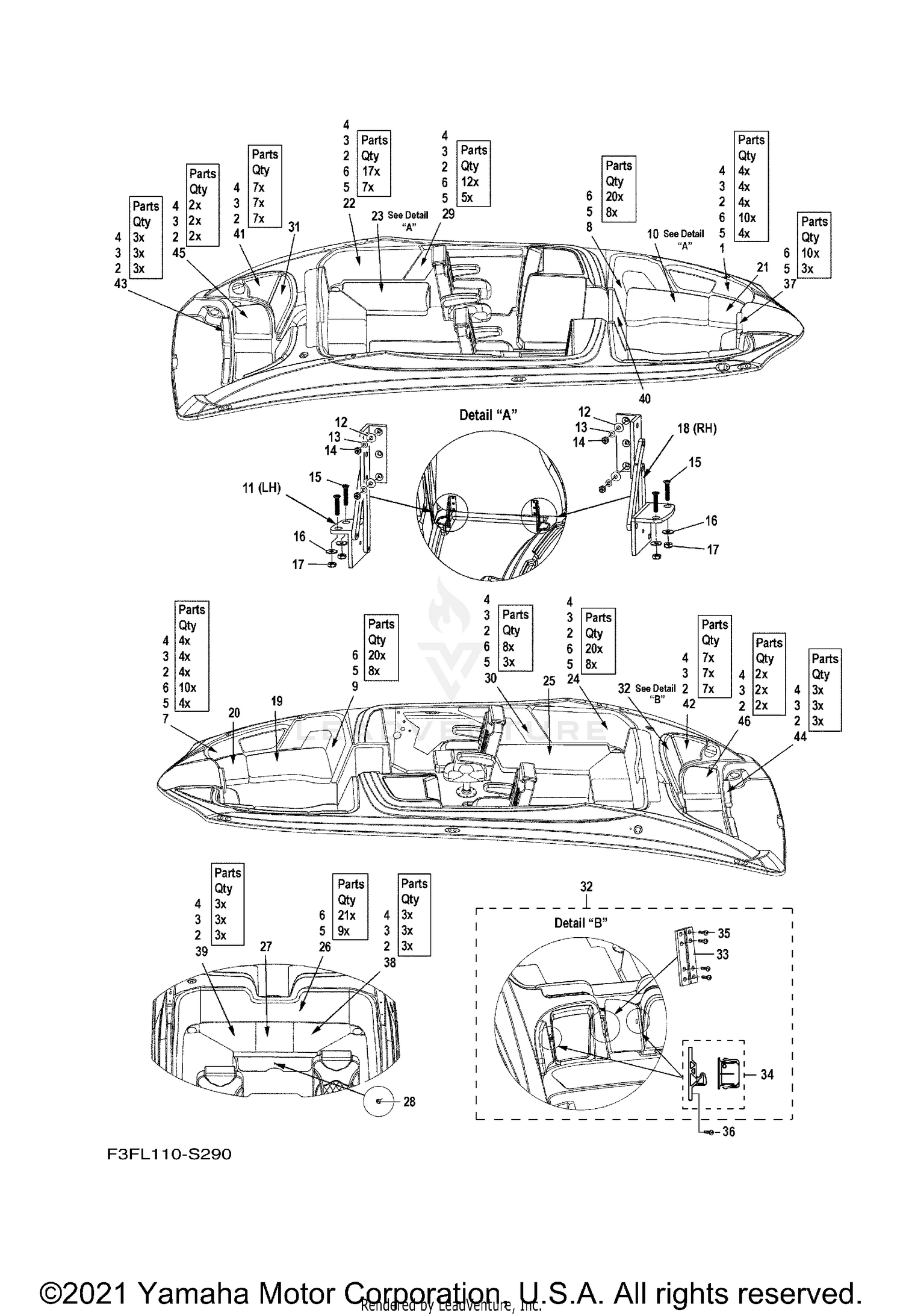

SEAT CUSHION
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 11 | F3F-U3714-21-00 | BRACKET,SEAT This part replaces F3F-U3714-20-00. Price: $31.99 |
| 12 | 90201-10S00-00 | WASHER, PLATE Price: $4.99 |
| 13 | 90204-10S00-00 | WASHER, SPRING Price: $6.99 |
| 14 | 90170-10S00-00 | NUT Price: $5.99 |
| 15 | 90151-10S16-00 | SCREW, COUNTERSUNK Price: $5.99 |
| 16 | 90201-10S00-00 | WASHER, PLATE Price: $4.99 |
| 17 | 90185-10S00-00 | NUT, SELF-LOCKING Price: $4.99 |
| 18 | F3F-U3714-31-00 | BRACKET,SEAT This part replaces F3F-U3714-30-00. Price: $25.99 |
| 20 | F3F-U35A5-A0-00 | CUSHION, FORE 5 Price: $365.99 |
| 21 | F3F-U35A6-A0-00 | CUSHION, FORE 6 Price: $370.99 |
| 28 | F1C-U5192-00-00 | SNAP Price: $0.70 |
| 33 | F3F-U2829-00-00 | HINGE 3 Price: $20.99 |
| 34 | F3F-U5532-00-00 | LATCH Price: $17.99 |
| 35 | 90169-10SA1-00 | TAPPING SCREW Price: $5.99 |
| 36 | 90169-08SA5-00 | TAPPING SCREW Price: $5.99 |
| 40 | F3F-U372F-40-00 | CUSHION 5 Price: $533.99 |
| 43 | F3F-U521E-A0-00 | PAD 3 Price: $99.99 |
| 44 | F3F-U521F-A0-00 | PAD 4 Price: $99.99 |
