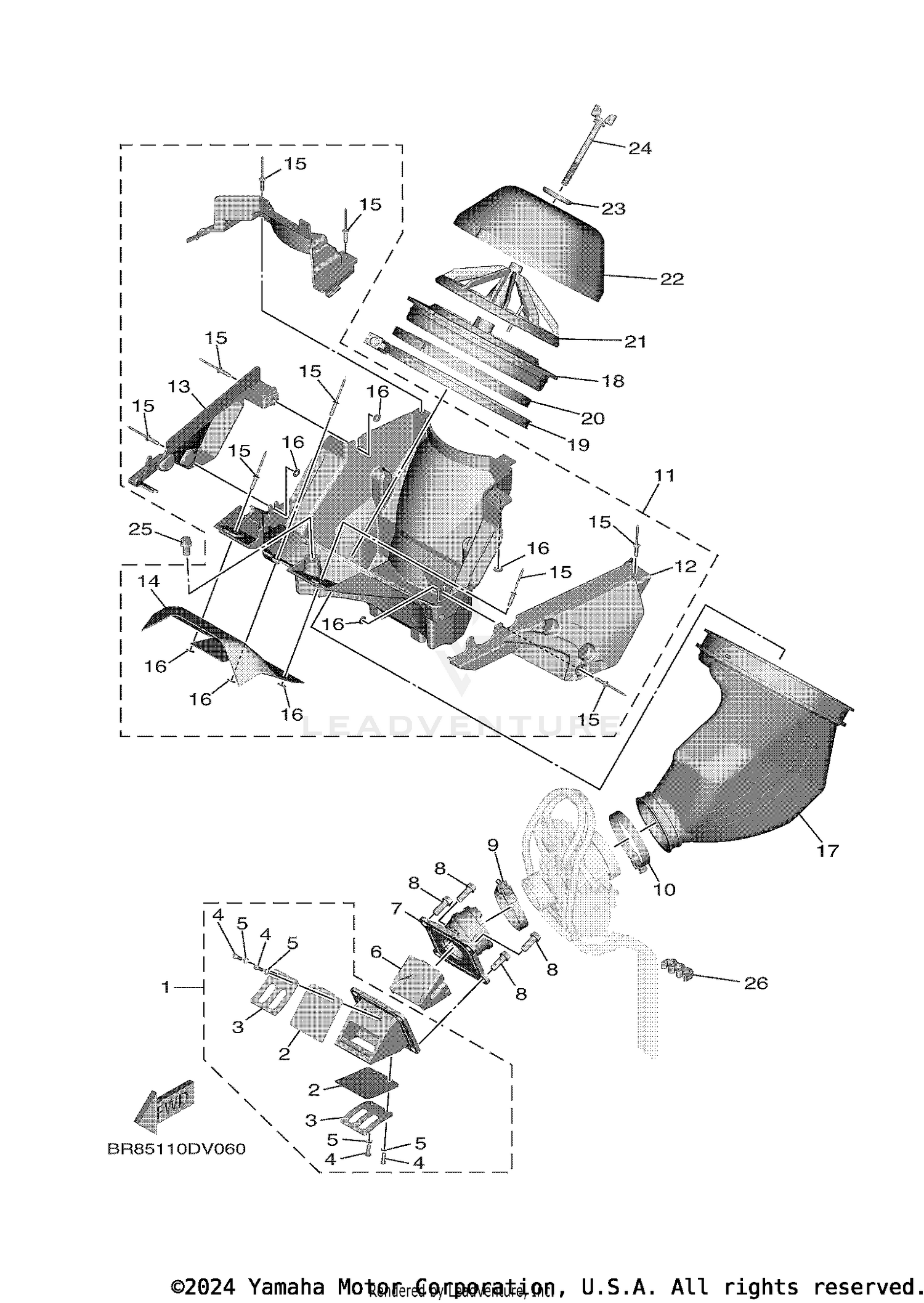

| Ref | Part Number | Description |
|---|
| 1 |
BR8-13610-00-00 |
REED VALVE ASSY Price: $102.99 |
| 2 |
BR8-13613-00-00 |
REED, VALVE Price: $12.49 |
| 3 |
4ES-13616-00-00 |
STOPPER, REED VALVE Price: $14.49 |
| 4 |
98580-03006-00 |
SCREW, PAN HEAD This part replaces 98502-03006-00. Price: $10.49 |
| 5 |
92990-03100-00 |
WASHER, SPRING This part replaces 92902-03100-00. Price: $9.49 |
| 6 |
BR8-13625-00-00 |
SPACER, REED VALVE Price: $16.49 |
| 7 |
BR8-13565-00-00 |
JOINT, CARBURETOR Price: $52.99 |
| 8 |
95E32-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $0.65 |
| 9 |
4TR-13474-02-00 |
BAND Price: $12.99 |
| 10 |
90450-56001-00 |
HOSE CLAMP ASSY This part replaces 90450-56004-00. Price: $19.49 |
| 11 |
BR8-14401-01-00 |
AIR CLEANER CASE ASSY Price: $77.99 |
| 12 |
BR8-1441A-00-00 |
COVER, CLEANER CASE 1 Price: $11.49 |
| 13 |
BR8-1441E-00-00 |
COVER, CLEANER CASE 2 Price: $6.49 |
| 14 |
BR8-14417-01-00 |
COVER 1 Price: $11.99 |
| 15 |
90267-32196-00 |
RIVET, BLIND Price: $1.15 |
| 16 |
90201-03313-00 |
WASHER, PLATE Price: $10.49 |
| 17 |
BR8-14453-01-00 |
JOINT, AIR CLEANER 1 Price: $77.99 |
| 18 |
BR8-14459-00-00 |
HOLDER, GUIDE Price: $22.99 |
| 19 |
BR8-14455-00-00 |
BAND Price: $38.99 |
| 20 |
BR8-14442-00-00 |
SPACER Price: $6.49 |
| 21 |
BR8-14458-00-00 |
GUIDE Price: $15.49 |
| 22 |
BR8-14451-01-00 |
ELEMENT, AIR CLEANER Price: $43.99 |
| 23 |
90209-06096-00 |
WASHER Price: $10.49 |
| 24 |
90122-06005-00 |
BOLT, WING Price: $13.49 |
| 25 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
