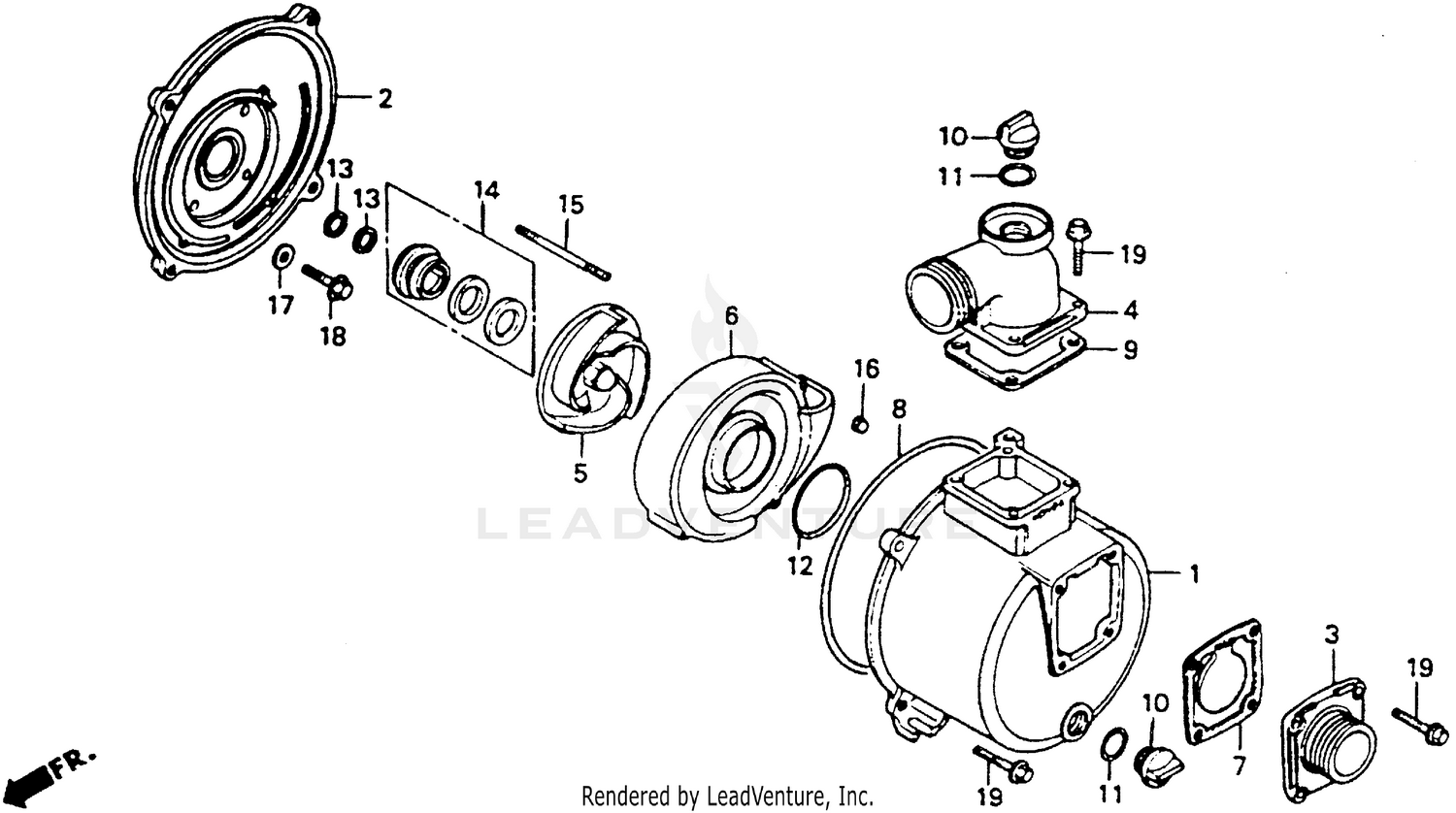

| Ref | Part Number | Description |
|---|
| 3 |
78103-YB4-630 |
PIPE, INLET (NPTF) Price: $108.50 |
| 4 |
78104-YB4-631 |
PIPE, OUTLET (NPTF) Price: $125.50 |
| 5 |
78106-YB4-000 |
IMPELLER Price: $100.62 |
| 6 |
78107-YB4-K10 |
SEE PART DETAILS - PRI; CASE, VOLUTE Price: $164.30 |
| 7 |
78110-YB4-000 |
VALVE, IN. Price: $33.90 |
| 8 |
78112-954-003 |
RING, CASING SEAL Price: $17.98 |
| 9 |
78114-YB4-000 |
GASKET, OUTLET Price: $5.86 |
| 11 |
78118-YB0-004 |
SEE PART DETAILS - PRI; RING, SEAL (B) This part replaces 78118-YB0-003. Price: $9.64 |
| 12 |
78118-YB4-004 |
O-RING (71X5.7) Price: $12.36 |
| 13 |
78122-YB3-000 |
SHIM, ADJUSTER Price: $4.86 |
| 14 |
78130-YB4-901 |
SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL WATER Price: $112.98 |
| 17 |
90474-333-000 |
WASHER, SEALING (8MM) Price: $4.98 |
| 18 |
95701-08028-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387). Price: $1.74 |
