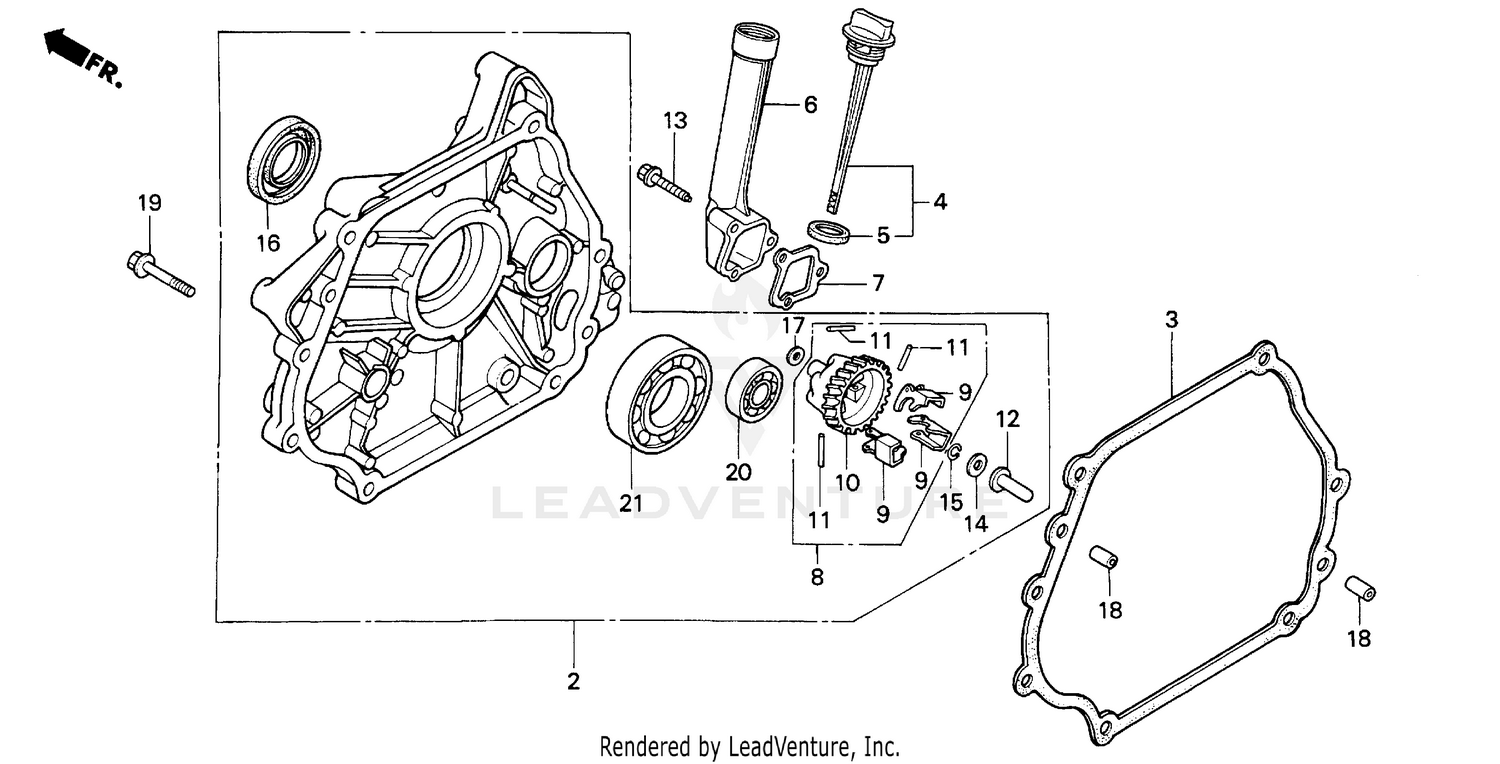

| Ref | Part Number | Description |
|---|
| 2 |
11300-ZE3-405 |
SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE Price: $307.66 |
| 3 |
11381-ZE3-801 |
SEE PART DETAILS - PRI; GASKET, CASE COVER This part replaces 11381-ZE3-800. Price: $13.34 |
| 4 |
15600-ZE3-791 |
CAP ASSY., OIL FILLER Price: $17.80 |
| 5 |
15625-ZE8-000 |
SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP Price: $5.22 |
| 6 |
15630-ZE3-790 |
EXTENSION, OIL FILLER Price: $56.50 |
| 7 |
15635-ZE3-800 |
GASKET, OIL FILLER EXTENSION Use up to Engine SN 2949254. Price: $2.50 |
| 8 |
16510-ZE3-000 |
GOVERNOR ASSY. (Honda Code 3713187). Price: $32.20 |
| 9 |
16511-ZE8-000 |
WEIGHT, GOVERNOR (Honda Code 2090090). Price: $7.64 |
| 10 |
16512-ZE3-000 |
HOLDER, GOVERNOR WEIGHT (Honda Code 3713195). Price: $18.94 |
| 11 |
16513-ZE2-000 |
PIN, GOVERNOR WEIGHT (Honda Code 2025971). Price: $2.22 |
| 12 |
16531-Z0A-000 |
SEE PART DETAILS - PRI; SLIDER, GOVERNOR This part replaces 16531-ZE2-000. Price: $3.72 |
| 13 |
90012-888-000 |
BOLT, FLANGE (6X40) (Honda Code 0671529). Price: $4.64 |
| 15 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 16 |
91201-ZE3-004 |
OIL SEAL (35X52X8) (Honda Code 2108595). Price: $10.94 |
| 17 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 18 |
90701-HC4-000 |
PIN, DOWEL (8X12) (Honda Code 2978443). Price: $3.72 |
| 19 |
95701-08040-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236. Price: $1.58 |
| 20 |
96100-62020-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941). Price: $11.68 |
